ET16 Wacker Neuson excavator specs & dimensions (2017 - 2019)

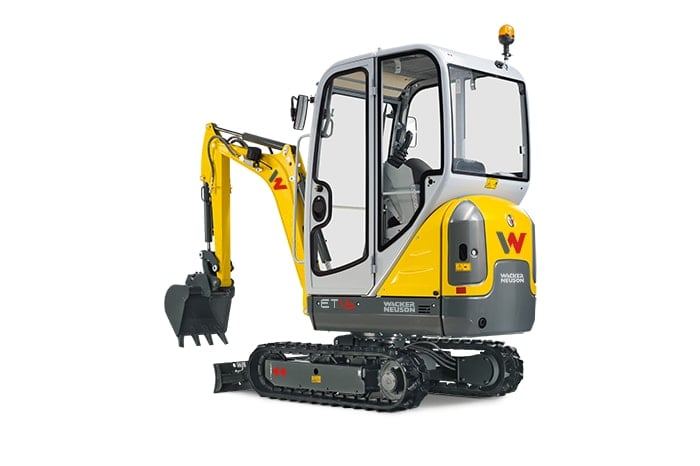

Wacker Neuson ET16 is a mini excavator manufactured from 2017 to 2019, with a weight of 1.59 tons. It features a track width of 23…

Wacker Neuson ET16 is a mini excavator manufactured from 2017 to 2019, with a weight of 1.59 tons. It features a track width of 230 mm and has transport dimensions of 3.64 meters in length, 0.99 meters in width, and 2.28 meters in height. The excavator is equipped with a blade and rubber tracks.

Mini Excavators Wacker Neuson ET16
Mini Excavators Wacker Neuson ET16
Mini Excavators Wacker Neuson ET16
Mini Excavators Wacker Neuson ET16
Mini Excavators Wacker Neuson ET16
Mini Excavators Wacker Neuson ET16
Mini Excavators Wacker Neuson ET16
Mini Excavators Wacker Neuson ET16

Visit Wacker Neuson live at

Technical specs - ET16 Wacker Neuson

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.59 t
Transport length
3.64 m
Transport width
0.99 m
Transport height
2.28 m
Track width
230 mm
Driver protection
Kb
Max. Reach horizontal
3.81 m
Dredging depth
2.41 m
Model series
ET
Engine manuf.
Yanmar
Engine type
3TNV76
Engine power
13.2 kW
Displacement
1.116 l
Revolutions at max torque
2200 rpm
No. of cylinders
3

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, tear-out force, dimension lxwxh, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Wacker Neuson ET16 FAQ

When was the Wacker Neuson ET16 manufactured?

The Wacker Neuson ET16 was manufactured from 2017 to 2019.

How much does the Wacker Neuson ET16 weigh?

The Wacker Neuson ET16 weighs 1.59 tons.

What are the transport dimensions of the Wacker Neuson ET16 mini excavator?

The Wacker Neuson ET16 has a transport length of 3.64 meters, a transport width of 0.99 meters, and a transport height of 2.28 meters.

What is the track width of the Wacker Neuson ET16 mini excavator?

The Wacker Neuson ET16 has a track width of 230 mm.

What is the excavation performance of the Wacker Neuson ET16?

The Wacker Neuson ET16 has a dredging depth of 2.41 meters and a maximum horizontal reach of 3.81 meters.

What driver protection features does the Wacker Neuson ET16 have?

The Wacker Neuson ET16 has a cabin for driver protection.

How much is a Wacker Neuson ET16 Mini excavator (2017u20132019) worth?

The residual value of the Wacker Neuson ET16 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Wacker Neuson ET16 overview

Dimensions and weight

Operating data
Shipping weight min.1402 kg"
Operating weight1529 - 1720 kg"
Biting force max.7.9 kN
Breakout force max.15.3 kN
Digging depth max.2413 mm"
Dumping height2371 - 2518 mm
Digging radius max.3861 mm"
Superstructure slewing speed9.8 1/min
L x W x H3644 x 990 x 2285 mm
Engine / Motor
Engine / Motor manufacturerYanmar
Engine / Motor type3TNV76
Engine / MotorWater-cooled 3-cylinder diesel engine
Displacement1116 cm³"
RPM / speed2200 rpm"
Engine performance acc. to ISO13.2 kW
Battery44 Ah
Fuel tank capacity24 l
Hydraulic system
Duty pumpGear pump
Flow rate33.3 l/min
Operating pressure for working and traction hydraulics200 bar
Operating pressure Slewing gear130 bar
Hydraulic oil tank20 l
Undercarriage
Travel speed4.1 km/h
Chain width230 mm
Ground clearance180 mm
Dozer Blade
Width (folded in)990 mm
Height215 mm
Stroke max. above ground"235 mm
Stroke max. below ground"270 mm
A,Height,"2,285 mm2,317 mm"
BWidth undercarriage990 mm990 mm
BWidth telescopic undercarriage extended1300 mm"
C,Transport length (bucket arm short),"3,644 mm3,648 mm"
C,Transport length (bucket arm long),"3,607 mm3,606 mm"
D,Digging depth max. (bucket arm short),"2,242 mm2,202 mm"
D,Digging depth max. (bucket arm long),"2,413 mm2,372 mm"
E,Insertion depth vertical (bucket arm short),"1,642 mm1,605 mm"
E,Insertion depth vertical (bucket arm long),"1,802 mm1,764 mm"
F,Insertion height (bucket arm short),"3,387 mm3,408 mm"
F,Insertion height (bucket arm long),"3,508 mm3,529 mm"
G,Dump height max. (bucket arm short),"2,371 mm2,396 mm"
G,Dump height max. (bucket arm long),"2,493 mm2,518 mm"
H,Digging radius max. (bucket arm short),"3,700 mm3,700 mm"
H,Digging radius max. (bucket arm long),"3,861 mm3,860 mm"
I,Range (bucket arm short),"3,648 mm3,642 mm"
I,Range (bucket arm long),"3,811 mm3,806 mm"
J,Rear swivel radius,"1,075 mm1,075 mm"
KArm displacement max. boom offset to centre of bucket right side432 mm432 mm
KArm displacement max. boom offset to centre of bucket left side287 mm287 mm
LLift height max. of dozer blade above ground"211 mm235 mm
MScraping depth max. of dozer blade below ground"264 mm270 mm
N,Length total crawler length,"1,462 mm1,462 mm"
OTurning angle max. of boom system to the right"49 °49 °
PTurning angle max. of boom system to the left"73 °73 °
QChain width230 mm230 mm
R,Boom slewing radius,"1,195 mm1,195 mm"

Other features

Tracked conventional rear excavator Quick on site with 4 km/h, 2nd travel speed as standard equipment, Saves time when working daily changing positions at 4 km/h. The most spacious yet compact of the 1.5 t Compact in size and yet the best its class regarding cabin size. The ET16 not only achieves peak values considering cab comfort but also when it comes to speed. The 2nd travel speed of 4 km/h enables the ET16 to quickly change position. Due to its very compact size and a transport weight of approximately 1.4t, the ET16 can be easily transported onto a passenger car trailer. Powerful and fuel-saving 3-cylinder diesel engine from Yanmar. Direct access to the engine compartment: all service relevant parts are direct and readily accessible. The largest cab in its class, ergonomically designed, high quality and modern equipped and optimally visible all round. Moving side elements of the dozer blade are attached to the blade. No installation or tools required. Standard auxiliary hydraulics for easy operation of different attachments. wackerneuner.com compiled on 09.08.2017 1

Tables

Sound level (LwA) acc. to 2000/14/EC93 dB(A)
Cabin - specified sound pressure level LpA79 dB(A)
