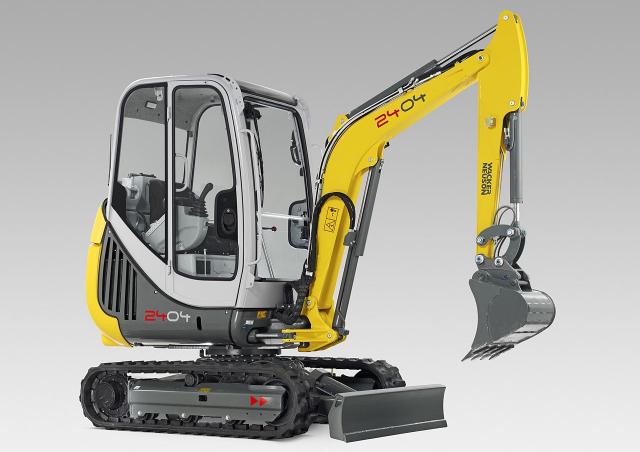

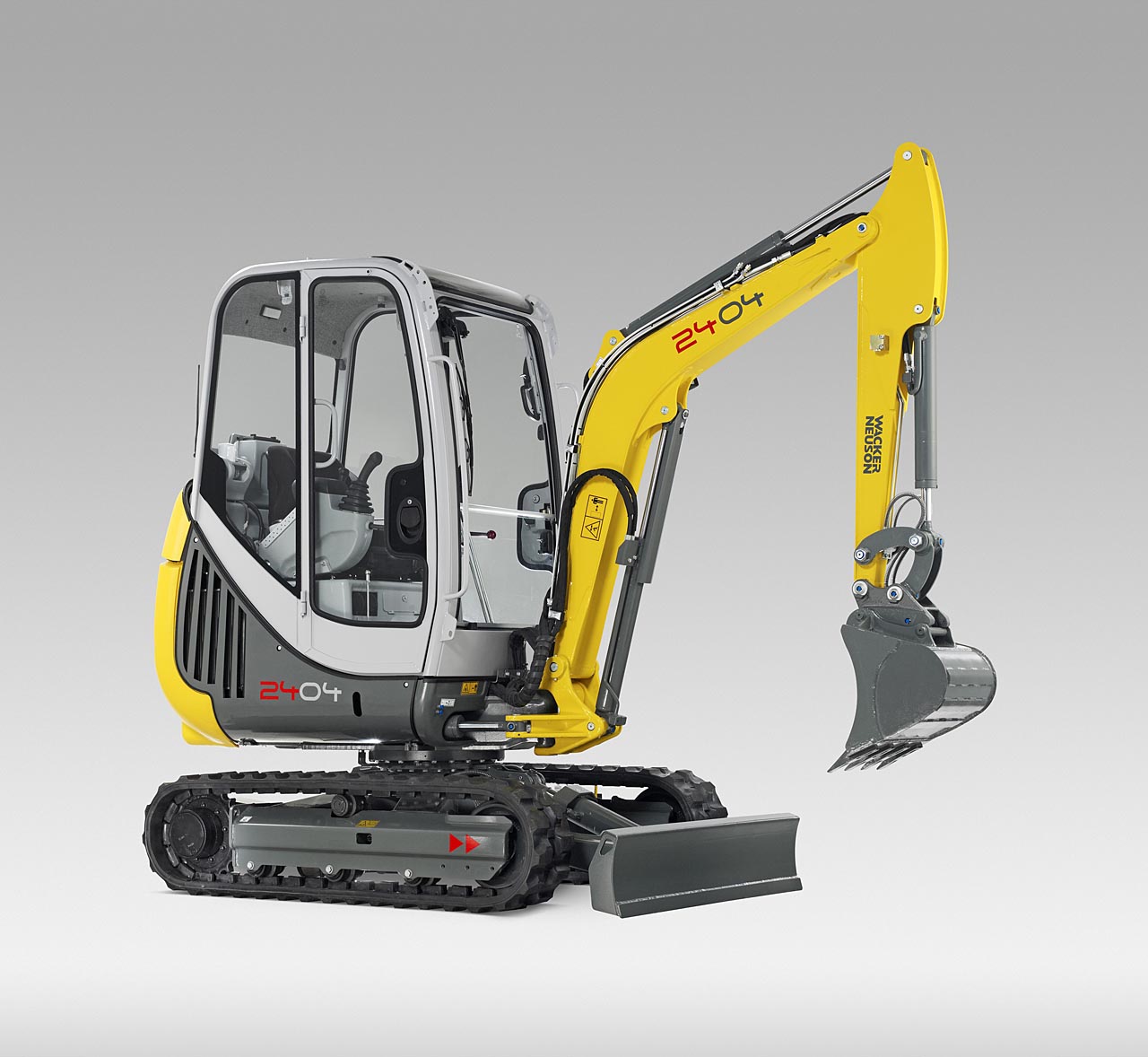

2404 Wacker Neuson excavator specs & dimensions (2009 - 2012)

Wacker Neuson factors:
Hydraulic system with aggregate power step regulation for high efficiency and performance. High efficiency: optimal coordination of engine and hydraulic unit. Hydraulic balancing and dampening of pedals. New cab that can be easily removed while maintaining all cockpit functions. Standard built-in hydraulic oil cooler, which maintains the optimum oil temperature even in extreme application conditions (hydraulic breaker). Two lifting eyelets on the cabin for easy removal from the dumper. Transport weight less than 2,5, High structural integrity and stability thanks to the newly designed running gear and optimized weight distribution. Stable, high strength steel design. Vertical Digging System (VDS): continuously variable tipping of the body by up to 15th option.
Cost-effectiveness under scrutiny: efficiency as a design principle.
Less fuel consumption, less maintenance effort, savings on transport and performance as before have been the protection of higher tonnages. The new 2404 is the result of evolutionary design, with proven components being optimised and significantly improved the interaction between engine and hydraulic power. Increased productivity, greater efficiency, shorter digging times thanks to precise vertical trenching courtesy of Wacker Neuson's innovative Vertical Digging System (VDS). A pacemaker that is a trendsetter in terms of efficiency.
Enhancement:
Excellent digging characteristics. Improved stability. Superior performance at a more competitive price.
The stable X-frame of tried-and-trusted Wacker Neuson design is made of high
quality steel and provides a reliable platform for many productive years of work.
Professionalism: S A V I N G S O N T I M E A N D M A T E R I A L
Thanks to the Vertical Digging System (VDS), you and your excavator are always well positioned to get ahead with your work. w h e n d i g i n g o u t i n g a n d f
The Vertical Digging System (VDS):
It saves time and money, provides added safety and opens up new opportunities for even more efficient work.
The continuously variable tilting of the superstructure through up to 15° allows you to compensate for gradients of up to 27%. - Greater productivity, better efficiency: Shorter digging times thanks to precisely
Vertical digging. - Up to 25 % material and time savings when excavating. - Up to 25 % material and time savings when filling in. - Up to 20 % increased stability on a 15 gradient with full load. - Full all-round rotation power through 360. - Confident seat position, fatigue proof working conditions. - Simple and robust design. - 10-year warranty for tipping console and support. Option

Exceptionally high stability: Impressive digging performance, dumping height, tear-out and breakaway forces, for an unbeatable price / performance ratio.
The wider, newly designed suspension provides added stability. The powerful drive concept and delicate steering combine to work in perfect harmony... for results that can be seen and above all measured.
Wacker Neuson factors: The optimised high-performance hydraulics of the 2404 are a key element of its superiority:
2-way auxiliary hydraulics as standard. Optional third control circuit. The variable pump with aggregated power control guarantees optimal utilization of performance... a key factor to ensure efficient fuel consumption. All hydraulic hoses run within the bucket arm, which gives them optimum protection from damage. Damping and hydraulic compensation of drive pedals. For straight travel function it is also possible to implement all work manoeuvres while driving. The excavator automatically stays on course. The overall output control ensures smooth, regular and finely controlled shovel arm movements. For complete and economical electricity generation in any situation without subjecting either one machine or driver to stress and strain.
The extremely long and wide running
Gear ensures exceptional stability even on difficult terrain. Agility and power of the excavator can always be fully utilized.
3 Direct access to the engine
compartment. All operational components can be reached directly via the large engine hood. Daily checks are downgraded to some simple gestures.

OPTIONS STANDARD EQUIPMENT GENERAL rubber track 250 mm dozer blade Working light mounted on boom Toolkit incl. grease gun and operating instructions Water-cooled Yanmar diesel engine ENGINE summation control Hydraulic pilot control
via joystick according to ISO, DIN, SAE, PCSA and EURO for two directions of motion, mounted on dipperstick
Valve control Auxiliary hydraulic connections Dual travel speed Hydraulically dampened drive pedals Hydraulic oil cooler

(not possible in combination with Powertilt setup) for auxiliary hydraulics
Flat Couplers Proportional Steering for 3rd Control Circuit Proportional Steering Addit. piping for grapple Overload Valve for Auxiliary Hydraulics Overload System Germany Overload System France Prepar.H-System (EASY LOCK) Pilot circuit Powertilt VDS Vertical Digging System

for comfort, communication and security:
3.1 Fully glazed front part: Excellent visibility and perfect protection from wind and weather. A thoroughly proven concept (tilted position). Under the cab canopy. It is safely stowed there.
3.4 Both sliding panes are stowed
under the cab canopy. There is no need to remove it or store it elsewhere, reducing the likelihood of its damage.
Special paint 1 RAL Special paint 1 no RAL Special paint cab/canopy RAL MISCELLANEOUS Cab lighting front Cab lighting front and rear Driving signal
for parts in yellow only for parts in yellow only RAL-colors Warranty extension to 24 months Long dipper stick (+200 mm) Safety 24 (1,500, flashing beacon).

Design:
Efficiency in top form. Development in every detail. 1 cab and canopy meet all international ROPS / TOPS / FOPS safety standards. increases mobility and also helps to save time and money. This, too, makes the use of a compact excavator even more efficient. further facilitates frequent mounting and lighting during one working day. Even short operations become productive.
Wacker Neuson factors:
Generously dimensioned cab with plenty of leg and head room; second door as option. Cab & canopy are ROPS /TOPS/FOPS certified. Anti-theft, coded key system and immobiliser of the vehicle. Wide doors so that it is easier to get in and out during a working day.
The cab is easy to remove. A few
Gestures is everything to separate the cab from the undercarriage. This means passages with low headroom are no longer an obstacle. 1 The two-door option provides easy access from both sides. As a result, the machine can be used even more flexibly.
Easy relocation of the machine thanks to
the lifting eyelets on the cab canopy. Easy disassembly of the cabin; all functions, Innovative windshield system for more remains intact.
2 Saving time on servicing and
the machine. The sturdy lifting eyelets ensure safe transfer and a spot-accurate landing for the 24 It is easy to get from one job site to the next, and loading the excavator for transportation is very simple. Maintenance. Floor plate and side panels can be easily removed providing quick access to the engine and hydraulics.
Wacker Neuson factors:
Ideal proportions for versatile use. Time and money saving maintenance and service thanks to particularly easy access to the engine and hydraulics. Regular checks, which require some small gestures, help extend machine life.
Pre-installation radio (antenna, speakers)
Radio kit incl. antenna and speakers Extension of backrest Glazed safety cabin, cab heater, inward-facing upper and lower disc windshield, wiper/washer system, fully lined canopy interior. Removable cab that complies with FOPS, TOPS and ROPS regulations. Cab with 2 doors Canopy with rear window HYDRAULICS Biological oil Panolin BP-Biohyd SE46
