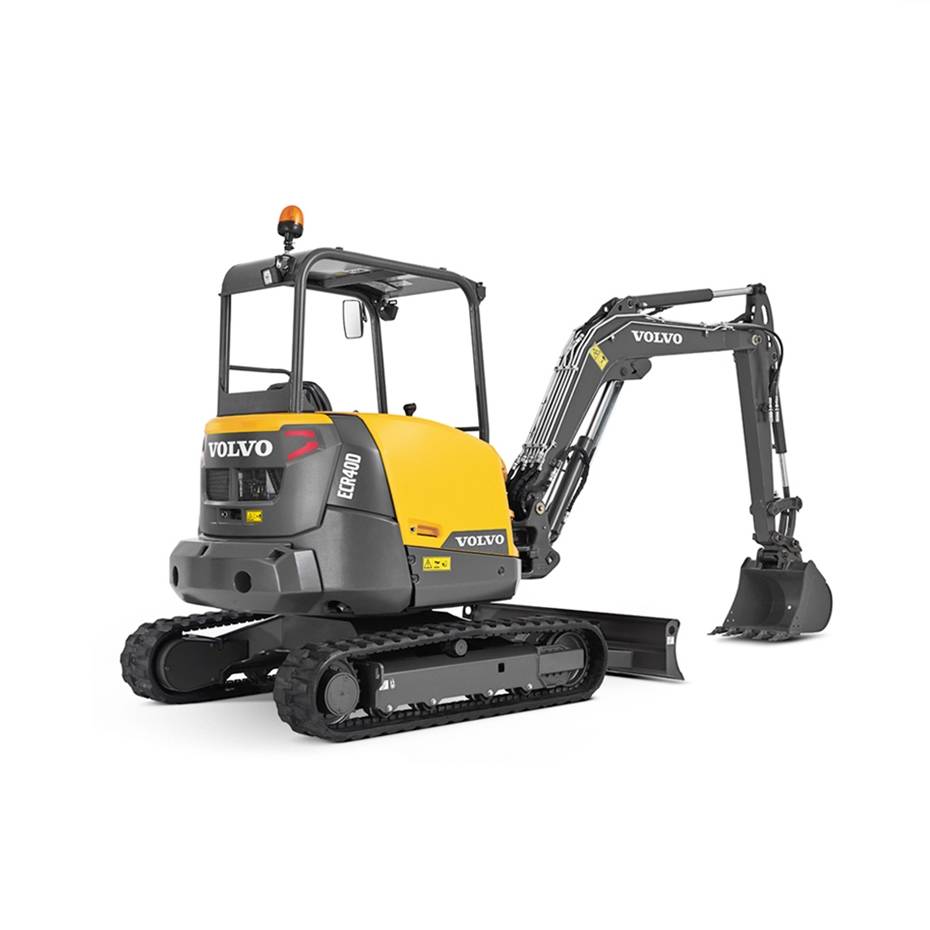

Volvo ECR40D is a mini excavator manufactured since 2019, with a weight of 4.46 tons. It features a track width of 300 mm, a trans…

Volvo ECR40D is a mini excavator manufactured since 2019, with a weight of 4.46 tons. It features a track width of 300 mm, a transport length of 4.78 meters, and a transport width of 1.74 meters. The machine has a tear-out force of 32.9 kN and a bucket capacity of 0.15 m³. Special equipment includes a blade and rubber track.

Visit Volvo live at

ECR40D

Years of manufacture: 2019—2024

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
Events
News

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 4.46 t

Transport length: 4.78 m

Transport width: 1.74 m

Bucket capacity: 0.15 m³

Track width: 300 mm

Driver protection: Kb

Tear-out force: 32.9 kN

Model series: ECR

Engine manuf.: Volvo

Engine type: D1.7A

Engine power: 19 kW

Revolutions at max torque: 2200 rpm

More technical details, like: transport height, bucket capacity min., bucket capacity max., bucket width, standard tyres, max. reach horizontal, dredging depth, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Track adjustment: No
Rubber track: Yes
Blade: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

The Volvo ECR40D was manufactured from 2019 to 2024.

The Volvo ECR40D weighs 4.46 tons.

The Volvo ECR40D has a transport length of 4.78 meters and a transport width of 1.74 meters.

The Volvo ECR40D has a track width of 300 mm on its undercarriage.

The Volvo ECR40D mini excavator has a tear-out force of 32.9 kN.

The bucket capacity of the Volvo ECR40D mini excavator is 0.15 cubic meters.

The Volvo ECR40D has driver protection in the form of a cabin.

The residual value of the Volvo ECR40D depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Designed to fit your needs
There is a lot going on in creating solutions that are suited to the particular needs of different industry applications. Innovation often involves high technology but doesn't always have to be. Some of our best ideas have been simple and based on a clear and deep understanding of customer working lives.
We're on your side
We back the Volvo brand with the best people. Volvo is truly a global enterprise, ready to support customers quickly and efficiently wherever they are.
Quick Couplers
The mechanical and hydraulic universal quick couplers allow the attachments to be changed quickly and efficiently. By designing the hydraulic quick coupler, they can be used for coordinated Volvo attachments as well as a wide range of offerings from different brands.

Optimized efficiency
For lower costs, increased productivity and maximum uptime, a range of efficient features in ECO mode ECR35D/ECR4 combines with the choice of the right machine setting for the task at hand for impressive fuel efficiency. Rugged design and quality digging equipment ensures durability and long-term machine value. Auto idle and engine shutdown reduce noise disturbance, fuel consumption, maintenance cost & slow down depreciation your machine.
Automatic engine shutdown
This feature automatically turns off the engine to reduce fuel consumption and cuts engine operating hours when the machine is inactive for a pre-set time.
Automatic travel speed
Automatic two-speed travel allows the operator to drive the machine continuously at high speed. Speed is automatically reduced when traction is needed.
ECO mode
By simply pressing a button, the unique Volvo ECO mode reduces fuel consumption by up to 10%.

Easy to use
The machine's state-of-the-art hydraulic system is perfectly matched to the Volvo engine, delivering high performance, fast response times and smooth operation. The ergonomic, comfortable controls are easy to understand making switching between operators easier. Responsive fingertip controls increase ease of use, reduce fatigue and improve fluency.

Operator environment
Operate in a world-class cab for superior operator comfort and less fatigue. The ECR35D/ECR40D is equipped with a spacious operating environment that provides excellent all round visibility as well as an adjustable suspended seat and console. Most machine functions and settings can be accessed quickly via the keypad and monitor to provide maximum control of your machine.
Operator environment
The industry leading, spacious Volvo FOPS1 on the top, TOPS and ROPS cab offers all-round visibility, ergonomically positioned controls as well as excellent vibration and noise insulation.
Suspended seat and console
The multi-adjustable seat and console are mounted on the same suspension, therefore moving together for excellent shock and vibration absorption.

Short swing radius
Designed and built in the tightest of spaces, this compact excavator can be used on more jobsites while reducing the risk of damage to the machine and its surroundings. Short swing radius design and boom cylinder position left make the ECR35D/ECR40D the first choice for working in confined areas. Sliding and offset movements are controlled simultaneously for easy and quick positioning of the machine.
Short swing radius
The short front and rear radius ensures safe and easy operation within a confined space.
In-track boom swing
The swing post and cylinder stay within the tracks when in a offset position, thus avoiding the risk of damage to your machine while working alongside obstacles.

		ECR35D	ECR40D
Pump type		Variable displacement piston pump
Maximum system flow	l/min	103	103
Maximum flow for accessories	l/min	65	65
Maximum pressure for accessories	MPa	22	22
Maximum flow for 2nd accessory circuit (option)	l/min	23	23
Maximum operating pressure	MPa	26	24

		ECR35D	ECR40D
Operating weight according to ISO 6016	kg	3 520	3 880
Ground pressure (cab)	kPa	32.7	36
Ground pressure (canopy)	kPa	31.4	34.8
Transport weight	kg	3 445	3 805
With heated cab
With direct-fit bucket
With rubber tracks	mm	300	300
With short arm	mm	1 250	1 400
With fuel tank capacity	%	100	100
With thumb	+kg	64	64
With canopy	-kg	135	135
With extra counterweight	+kg	170	80
With long arm and additional counterweight	+kg	180	95
With steel tracks	+kg	130	130
Steel tracks	mm	300	300
Hydraulic system

			Lifting point radius (A)
2.0 m	3.0 m	4.0 m	Max. reach	Max.
	Lifting point height (B) m									m
	3	kg					609	579	544	517	4.27
	2	kg			932	878	595	564	457	434	4.71
Arm: 1 400mm + Dozer blade up	1	kg			864	812	569	539	428	407	4.84
0	kg			825	774	549	520	439	417	4.69
-1	kg	1 590	1 457	820	769	545	516	506	479	4.24
-2	kg	1 630	1 495	842	791			745	702	3.27
Arm: 1 700mm + Additional counterweight	3	kg					617*	616	513	487	4.60
2	kg					629	596	439	417	5.00
1	kg			909	854	597	565	413	392	5.12
0	kg	1 122*	1 122*	856	802	571	539	420	398	4.99
+ Dozer blade up	-1	kg	1 624	1 486	841	788	561	529	471	446	4.57
	-2	kg	1 657	1 517	855	802			631	596	3.73
Arm: 1 400mm Dozer blade down	3	kg					740*	579	786*	517	4.27
2	kg			957*	878	839*	564	837*	434	4.71
1	kg			1 542*	812	1 039*	539	901*	407	4.84
0	kg			1 884*	774	1 201*	520	982*	417	4.69
-1	kg	2 539*	1 457	1 885*	769	1 205*	516	1 088*	479	4.24
-2	kg	2 757*	1 495	1 465*	791			1 240*	702	3.27
	3	kg					617*	616	713*	487	4.60
Arm: 1 700mm + Additional	2	kg					733*	596	761*	417	5.00
1	kg			1 351*	854	950*	565	819*	392	5.12
counterweight	0	kg	1 122*	1 122*	1 790*	802	1 145*	539	891*	398	4.99
+ Dozer blade down	-1	kg	2 192*	1 486	1 892*	788	1 214*	529	987*	446	4.57
-2	kg	3 181*	1 517	1 643*	802			1 121*	596	3.73

			Lifting point radius (A)
2.0 m	3.0 m	4.0 m	Max. reach	Max.
	Lifting point height (B) m									m
	3	kg							479	470	3.95
	2	kg			730	712	461	453	388	381	4.43
Arm: 1 250mm	1	kg			669	652	440	432	359	353	4.57
+ Dozer blade up	0	kg			635	619	424	416	370	364	4.41
	-1	kg	1 220	1 167	632	616			438	430	3.91
	-2	kg	1 268	1 213					753	732	2.76
	3	kg					537	526	485	475	4.23
Arm: 1 500mm + Additional	2	kg					526	514	406	398	4.68
1	kg			766	744	502	491	379	371	4.81
counterweight	0	kg	1 203*	1 203*	721	700	481	470	388	381	4.66
+ Dozer blade up	-1	kg	1 364	1 300	712	691	476	465	448	438	4.19
	-2	kg	1 405	1 339	733	712			668	650	3.21
	3	kg							760*	470	3.95
2	kg			901*	712	793*	453	750*	381	4.43
Arm: 1 250mm Dozer blade down	1	kg			1 368*	652	939*	432	805*	353	4.57
0	kg			1 628*	619	1 049*	416	918*	364	4.41
-1	kg	2 706*	1 167	1 570*	616			1 007*	430	3.91
-2	kg	1 869*	1 213					1 101*	732	2.76
	3	kg					648*	526	643*	475	4.23
Arm: 1 500mm + Additional	2	kg					713*	514	621*	398	4.68
1	kg			1 244*	744	877*	491	653*	371	4.81
counterweight	0	kg	1 203*	1 203*	1 577*	700	1 018*	470	760*	381	4.66
+ Dozer blade down	-1	kg	2 321*	1 300	1 603*	691	1 015*	465	927*	438	4.19
	-2	kg	2 320*	1 339	1 200*	712			1 037*	650	3.21

Description	Unit	ECR35D
Arm		mm	1 250	1 500
A	Maximum cutting height	mm	4 497	4 640
B	Maximum dump height	mm	3 147	3 290
C	Digging depth	mm	2 785		3 035
C*	Maximum digging depth	mm	3 173		3 420
D	Maximum vertical wall digging depth	mm	2 251		2 494
E	Maximum digging reach at ground level	mm	5 131		5 370
F	Maximum digging reach	mm	5 261		5 497
G	Highest position dozer blade	mm		370
H	Lowest position dozer blade	mm		525
I	Tumbler length	mm		1 604
J	Track length	mm		2 055
K	Dozer blade	maximum reach at ground level"	mm		1 648
L	Overall width with 300mm rubber tracks	mm		1 780
M	Overall length	mm	4 609		4 504
M*	Transport length	mm	5 435		5 380
N	Overall height of engine hood	mm		1 573
O	Minimum ground clearance	mm		285
P	Dozer blade height	mm		368
Q	Shoe width (rubber)	mm		300
R	Ground clearance to superstructure	mm		557
S	Front slew radius	mm	2 394		2 418
T	Front slew radius with maximum offset	mm	1 869		1 889
U	Overall height	mm		2 481
W	Overall width of superstructure	mm		1 575
X	Tail slew radius	mm	885		970
X1	Additional counterweight overhang	mm	85		(incl.)
Y	Angle of approach	°		25
Z	Dozer blade width	mm		1 780
α1	Maximum boom swing angle to the left	deg		76
β1	Maximum boom offset to the right	mm		995
α2	Maximum boom swing angle to the right	°		56
β2	Maximum boom offset to the left	mm		787
1 : Option

Description	Unit	ECR40D
Arm		mm	1 400	1 700
A	Maximum cutting height	mm	4 690	4 853
B	Maximum dump height	mm	3 347	3 514
C	Digging depth	mm	3 131		3 431
C*	Maximum digging depth	mm	3 481		3 771
D	Maximum vertical wall digging depth	mm	2 521		2 811
E	Maximum digging reach at ground level	mm	5 411		5 699
F	Maximum digging reach	mm	5 533		5 813
G	Highest position dozer blade	mm		370
H	Lowest position dozer blade	mm		525
I	Tumbler length	mm		1 604
J	Track length	mm		2 055
K	Dozer blade	maximum reach at ground level"	mm		1 648
L	Overall width with 300mm rubber tracks	mm		1 780
M	Overall length	mm	4 780		4 640
M*	Transport length	mm	5 650		5 580
N	Overall height of engine hood	mm		1 573
O	Minimum ground clearance	mm		285
P	Dozer blade height	mm		368
Q	Shoe width (rubber)	mm		300
R	Ground clearance to superstructure	mm		557
S	Front slew radius	mm	2 459		2 474
T	Front slew radius with maximum offset	mm	1 923		1 936
U	Overall height	mm		2 481
W	Overall width of superstructure	mm		1 575
X	Tail slew radius	mm	1 035		1 035
X1	Additional counterweight overhang	mm	0		(incl.)
Y	Angle of approach	°		25
Z	Dozer blade width	mm		1 780
α1	Maximum boom swing angle to the left	deg		76
β1	Maximum boom offset to the right	mm		995
α2	Maximum boom swing angle to the right	°		56
β2	Maximum boom offset to the left	mm		787
1 : Option

	Basic	Standard	Basic	Standard
Operator environment
Canopy	○	○	○	○
Cab with heater	○	○	○	○
Cab with heater and air conditioning		○		○
Vinyl or textile seat	with mechanical suspension	low-back seat and 2” seat belt"	○	○	○	○
Vinyl or textile seat	height adjustable	with mechanical suspension	high back and 2” or 3” retractable seat belt"	○	○	○	○
Storage box	○	○	○	○
Cab roof		○		○
ISO / SAE control pattern change (in-cab electric switch)	○	○	○	○
Travel alarm	○	○	○	○
Radio preparation (cab)	•	•	•	•
Radio	AUX	USB	Bluetooth"		○		○
Anti-theft device	○	○	○	○
Digital hourmeter	•	•	•	•
Extra hour meter (mechanical	)"	○	○	○	○
Cupholder.		○		○
Machine exterior
Right rearview mirror	•	•	•	•
Left rearview mirror	○	○	○	○
Protected worklight on the boom	○	○	○	○
Rear worklight	○	○	○	○
Rotating beacon	○	○	○	○
Choice of halogen or LED lights and beacon	○	○	○	○
Additional counterweight	○	○	○	○
Front canopy guard (OPG1)	○	○	○	○
Severe-duty guards for cab or canopy (OPG2	front and top)"	○	○	○	○
Several level of paint customisation (RAL specifications) to match with your corporate identity	○	○	○	○
Digging equipment
Short arm	○	○	○	○
Short arm + thumb bracket			○	○
Long arm
Long arm + thumb bracket
Long arm + additional counterweight	○	○	○	○
Long arm + thumb bracket + additional counterweight			○	○

Built ready
Get the most out of your machine. The ECR35D/ECR40D fits perfectly with Volvo attachments, allowing you to change hydraulic settings directly and easily from the keypad. For increased versatility and uptime, Volvo has a durable range of attachments so that you can access further applications and effectively complete various tasks.
Advanced attachment solutions
The machine is compatible with a range of hydraulic attachments, including thumbs, breaker and tiltable digging bucket for advanced and specialized applications. Do not hesitate to turn to your local Volvo dealer; also benefit from leading expertise and advanced attachment solutions.
Dealer support
For less downtime and expert support, Volvo proactively responds more quickly to your requirements while fully supporting your service and maintenance needs through its local workshops and on-site servicecars. Your attentive Volvo dealer offers professional expertise and preventative maintenance solutions so you can continue working and ensure more uptime.
Built ready
Volvo's durable attachments have been specially designed to deliver maximum productivity and a long service life combined with the Volvo machines.

You learn a lot in 180 years
Over the years, Volvo has advanced solutions that have revolutionized the use of construction equipment. No other name speaks Safety louder than Volvo. Protecting operators, their environment and minimizing our environmental impact are traditional values that continue to shape our product design philosophy.

		ECR35D	ECR40D
Standard bucket width (blade	W/O side cutter)"	mm	600	600
Standard bucket mass	kg	90	90
Standard bucket rated capacity	l	114	114
Bucket rotation	°	198	199
Bucket breakout force (ISO)	daN	3 072	3 289
Short arm tearout force (ISO)	daN	2 066	2 371
With short arm	mm	1 250	1 400
Long arm tearout force (ISO)	daN	1 819	2 060
With long arm	mm	1 500	1 700

		ECR35D	ECR40D
Rubber track width	mm	300	300
Steel track width	mm	300	300
Bottom/top rollers per side		4/1	4/1
Track tension		by grease piston	by grease piston

	ECR35D	ECR40D
Fuel tank l	64	64
Hydraulic system	total l"	62	62
Hydraulic tank l	32	32
Engine oil l	7	7
Engine coolant l	7	7
Travel reduction unit l	2 x 0.7	2 x 0.7
Sound Level

		ECR35D	ECR40D
Voltage	V	12	12
Battery	V	1 x 12	1 x 12
Battery capacity	Ah	74	74
Alternator	V/Ah	12/60	12/60

		ECR35D	ECR40D
Engine			Volvo D1.7A	Volvo D1.7A
Max. power at	r/min		2 200	2 200
Gross	kW		18.5	18.5
	hp		25.2	25.2
	Gross power according to ISO 2534
Max. torque	Nm		97	97
at engine speed	r/min		1 600	1 600
No. of cylinders			3	3
Displacement	cm³		1 647	1 647
Bore	mm		87	87
Stroke	mm		92.4	92.4
Compression ratio			20.5	20.5

		ECR35D	ECR40D
Max	drawbar pull"	daN	3 100	3 100
Max. travel speed low	km/h	2.7	2.7
Max. travel speed high	km/h	4.5	4.5
Gradeability	°	20	20

		ECR35D	ECR40D
Max	slew speed"	r/min	9	9
Max	slew torque"	daNm	810	710

against ignition engine already running. Dry-type single element air filter.	•		•
Plastic fuel tank with drain plug.	•	•
Protective strainer on the fuel succion pipe inside the tank	•		•
Water separator.	•		•
Translucent fuel filter.	•		•
Electric/Electronic control system
Maintenance free battery.	•		•
IP67 protected electrical system and high quality connectors.	•		•
Removable battery cut-off switch.	•		•
In-cab 12V power socket.	•		•
Drivetrain
Axial piston hydraulic motors equipped with an epicyclic reduction gears.	•		•
Automatic two speed travel	•		•
Bottom flanged rollers lubricated for life.	•		•
Grease tensioning wheel lubricated for life.	•		•
Swing system
Radial piston hydraulic motor with direct engagement on the ball internal crown wheel (no reduction gears).	•		•
Integrated shockless valve.	•		•
Automatic multi-disc slew brake.	•		•
Centralized and remote lubrication of crown wheel & ball bearing.	•		•
Undercarriage
“X” shape	box welded fabricated frame with sloping side members."	•		•
2 Tie-down points on the dozer blade.	•		•
2 Tie-down points on the frame.	•		•
2 Integrated lifting points.	•		•
Sturdy removeable protecting covers for track motors and slew system.	•		•
400HB weld-on edge on dozer blade	•		•
Hydraulic system
Large hinged and key-locked access panel.	•		•
Variable displacement	load-sensing piston pump."	•		•
Closed centre flow-sharing main control valve.	•		•
Cushoning on cylinders:	•		•
Boom up -	•		•
Arm out -	•		•
Patented filtering and filling element.	•		•
Single layer cooling system.	•	•
Double-acting hydraulic circuit for accessories.	•		•
Hammer / shear valve.	•		•
Plastic tank with drain plug.	•		•
Digging Equipment
Monobloc box welded boom.	•		•
Boom cylinder rod protection.	•		•
Integrated lifting point on the boom.	•		•
Monobloc box welded arm.	•		•
Long-life steel bushings.	•		•
Hardened	pre-lubricated and corrosion resistant pins."	•		•
50 hours greasing intervals.	•		•
Cab
FOPS on top level 1 (Falling Object Protective Structure).	•		•
TOPS (Tip-Over Protective Structure).	•		•
ROPS (Roll-Over Protective Structure).	•		•
Cushioned operator station.	•		•
Large door access.	•		•
Large and roomy uncluttered floor.	•		•
Gas-strutt assisted front window opening.	•		•
Full opening front bay with in-cab storage for the front lower window.	•		•
Front windscreen wiper and washer nozzle.	•		•
Right hand side sliding window.	•		•
Heating systems.	•		•
Multiple adjustable air vents.	•		•
Filtered air inlet.	•		•
Cab inside light.	•		•
Seat-belt with warning indicator.	•		•
Two working lights on top front of the cab.	•		•
Canopy
FOPS level 1 on top (Falling Objects Protective Structure)	•		•
TOPS (Tip-Over Protective Structure)	•		•
ROPS (Roll-Over Protective Structure)	•		•
Cushionned operator station	•		•
Large and roomy uncluttered floor	•		•
Left hand-rail access	•		•
Seat-belt with warning indicator	•		•

Machine controls
Finger tip control for boom offset.	•	•
Finger tip control for auxiliary circuit.	•	•
Breaker toggle switch on right joystick	•	•
Automatic locking device for pilot controls and travel levers when the left console is raised.	•	•
Engine starting safety device: the left console must be raised to operate the starter.	•	•
Pressure accumulator to lower the equipment on the ground when the engine is switched off.	•	•
High torque / automatic two speed change over button on the keypad.	•	•
High speed toggle switch on the dozer blade lever.	•	•
Large travel pedals.	•	•
Instrumentation and monitoring
Water temperature and fuel level gauges.	•	•
Warning lights for hydraulic filter and air filter restriction.	•	•
Self-acting emergency engine shutdown. Prevents failures in case of coolant overheating or too low engine oil pressure.	•	•

300mm rubber tracks	○	○	○	○
300mm steel tracks	○	○	○	○
Standard dozer blade	•	○	•	○
Hydraulic angle blade		○		○
Hydraulic equipment
Proportional finger tip control for boom offset		•		•
On / Off finger tip control for boom offset	•		•
Proportional finger tip control for accessories		•		•
On / off finger tip control for accessories	•		•
Accessory flow adjustment with 3 function oriented button and user-defined settings.		•		•
Secondary relief valves for auxiliaries	•	•	•	•
Hydraulic drain for accessories		○		○
Breaker and clamshell auxiliaries		○		○
Second accessory circuit		○		○
Volvo Control System		○		○
Flat face hydaulic quick couplings	○	○	○	○
Single acting circuit for quick couplers	○	○	○	○
Double acting circuit for quick couplers	○	○	○	○
Boom and arm safety lifting valves with overload indicator	○	○	○	○
Boom	arm and dozer blade safety lifting valves with overload indicator"	○	○	○	○
Float blade	•	•	•	•
Safety valve certification	○	○	○	○
Mineral hydraulic oil VG46	○	○	○	○
Bio hydraulic oil VG46 (PANOLIN®)	○	○	○	○
Mineral hydraulic oil VG68	○	○	○	○
Mineral hydraulic oil VG32	○	○	○	○

	ECR35D	ECR40D
	Basic	Standard	Basic	Standard
Engine
Manual engine control	•		•
Digital engine control with two preset engine speed buttons (user adjustable)			•		•
Engine auto idling with time adjustment		○		○
ECO mode			•		•
Engine auto shut-down with time adjustment		○		○
Dual stage air filter	○	○	○	○
Service and maintenance
In-cab air filter clogg warning lamp		•	•	•	•
In-cab engine overheating warning indicator		•	•	•	•
Tool kit		○	○	○	○
Electronic service reminder			•		•
V-CADS pro			•		•
Telematics
Care Track		○		○
Attachments
Volvo quick coupler mechanical (pin-on)	○	○	○	○
Volvo hydraulic quick coupler (pin-on)	○	○	○	○
Extra pin kit	○	○	○	○
Lehnhoff® Quick Coupler Mechanical (MS03)		○	○	○	○
Lehnhoff® Quick Coupler Hydraulic (HS03)		○	○	○	○
S-type hydraulic quick coupler (S40)		○	○	○	○
Steelwrist® Tiltrotators (X04)		○		○
Thumb with short clamp (for direct fit bucket)			○	○
Thumb with long clamp (when using quick coupler)			○	○
A choice of fix or tiltable buckets (300mm / 52L up to 1300mm / 150L)	○	○	○	○
Bolt-on side cutters	○	○	○	○
Hydraulic breaker HB03LN	○	○	○	○

Homberg/Nieder-Ofleiden, Germany

September 2 — 5

Holstenhallen Neumünster, Germany

September 9 — 13

Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.

Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.

Enquire machine inspection

Provided by:

At LECTURA we monitor information since 40 years and based on this experience, we can support sellers with pricing lists of used mini excavators, such as Volvo ECR40D.

Check what new and used models of mini excavators you can get in each price range:

Data provided by

Weight:: 4.46 t

Transport length:: 4.78 m

Transport width:: 1.74 m

Bucket capacity:: 0.15 m³

Weight:: 3.66 t

Transport length:: 4.645 m

Transport width:: 1.5 m

Weight:: 5.25 t

Transport width:: 1.87 m

Bucket capacity:: 0.18 m³

Weight:: 4.82 t

Transport length:: 5.39 m

Transport width:: 1.99 m

Weight:: 5.3 t

Bucket capacity:: 0.23 m³

Weight:: 2.79 t

Weight:: 4.91 t

Weight:: 5.4 t

Weight:: 3 t

Weight:: 1.73 t

Weight:: 3.584 t

Weight:: 4.3 t

Weight:: 1.84 t

Weight:: 3.582 t

Weight:: 4.32 t

Whether you need to know value of your Volvo ECR40D or valuation of your Mini Excavators fleet, LECTURA Valuation will help. Simply fill the form and see the pricing information for Mini Excavators in few clicks.

Valuate right now!

Data provided by

Do your lookup for high quality parts for Volvo ECR40D online!
With a few, easy steps, you will find generic and genuine parts and replacements in well-catalogued lists. Wether you are dealer or an owner, LECTURA can lead you to the right direction.
Check the best offers from our partners and order the Mini Excavators spare parts easily today - worldwide.

Get parts for Volvo ECR40D now!

In case you want to transport your machine, take advantage of our services. Ask for the best fitting transport quotes for Mini Excavators created on dimensions and weight. Our partners offer major options to satisfy your requirements.

Ask for transport price

Data provided by

Several warning lights

coupled to an audible signal

in the event of malfunction (overheating

drop in oil pressure

low battery voltage…)"

Official approval

The heavy equipment market is dynamic and responds flexibly to current technological trends and institutional regulations. Understanding how trends develop over time has become essential for effective decision making. LECTURA GmbH supports professionals through its longitudinal survey services, enabling companies to monitor market developments with greater clarity and confidence.
