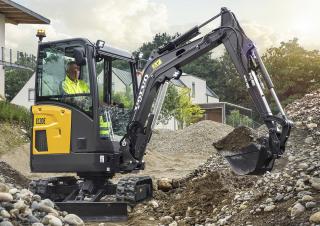

EC20E Volvo excavator specs & dimensions (2018 - 2026)

Small machine, big performance
Bring power to a new level, with an increase in traction force of 13% and 3 120 kg combined digging forces. Add a smooth combination of movements that make grading jobs easier as well as the ability to work near the blade or complete tasks on site has never been faster.
Small machine, big performance
13% increase in traction force, 3 120 kg combined digging forces, Improved lifting capacity by an average of 22% forward and 7% to the side.
STANDARD EQUIPMENT Engine Drivetrain Electric / Electronic control system Swing system Superstructure Undercarriage Hydraulic system Cab / Canopy
low emission, water cooled, Volvo 3-cylinder diesel engine, meeting EPA Tier 4 and EU Stage V Environmental regulations Starter motor protected against ignition on already running engine Automatic engine cut-off in case of overheating or lower oil level Engine starting fuse: The left console must be raised to operate the starter Dry type Single element air filter Water Separator and translucent fuel filter Plastic tank with drain plug Automatic two-speed travel hydraulic motors with reduction gear Internal flange underrolls lubricated for life Grease tensioning wheel lubricated for life Maintenance free battery IP67 Protected electrical system and high quality connections Battery disconnect connectors Two working lights on cab version Work light on canopy frame 12V socket in cabin with cell phone storage Radial piston Hydraulicmotor with integrated shock valve Automatic multi-disc spring Applied hydraulic clearance brake Centralized and remote lubrication of crown wheel and ball bearings Stamped steel plates all around, reduced 10 to 15mm 4 integral lowering points at upper structure 230mm Rubber tracks Box welded frame Stabilised rear roof (rigid
STANDARD EQUIPMENT Digging equipment Machine controls Instrumentation and monitoring Official approval
Cast end and structural parts on the arm, pivot, undercarriage and upper body monoblock box welded boom and arm Boom cylinder guard Durable steel bushings & hardened, pre-lubricated and corrosion resistant pins 50 hours intervals at all grease points Automatic locking for pilot controls and travel lever in case of increased left console Proportional and adjustable fingertip control for boom offset and auxiliary circuit Large travel pedal breakers (full flow) Shift switch to right joystick pressure accumulator lowering equipment bottom Permanent digital hour meter visibly from outside Cab Warning lights for hydraulic filter and air filter restriction Engine temperature and fuel level gauge Machine according to European directive 2006/42/EC Noise emissions in the environment conforming to directive 2000/14/EC Hand arm oscillations - Full body vibration standard 2002/44/EC Electromagnetic compatibility (EMC) compliant with ISO 1/108/EC and its modifications Object handling device complying with EN 474-1 and EN 474-5 (Roll-Over Structure) 1040 as well as DIN 3471 /.
OPTIONAL EQUIPMENT Engine Operator environment
Two Stage Air Filter Auto Idling System Engine Self Shutdown with Time Adjustment Rugged 4-pillar Structure Roof Heated Cab Vinyl Seat with Mechanical Suspension, Low Back and 2 Orange Seat Belt Vinyl Seat with Mechanical Suspension, Extended back with lumbar adjustment and 3 Fold-in seat belt Fabric Seat with Mechanical Suspension, Stretched Back with Lumbar Adjustment and 2 Orange Extendable Seatbelt Textil Seat with Mechanical Suspension, Longened Back with Lombar Adjustment and 3 Lockable Seat Harnesses Auxiliary Lock Box (Backside the Seat) Electrical Switch for ISO/SAE Control Pattern Change Travel Alarm Radio, AUX, USB, Bluetooth Radio DAB, USB, Bluetooth, MP3 Antitheft Steel, Code Closure Theft Protection, Codted Key Control Locking, Switch Operating Lock, Seat Operator Executive Board and - Control Blocks, 1 Safety Sensor Front & Top Guard Tools (Protection Canopy Toolkit), Protective Windshield For Driver's Accessible Caprial

Best-in-class serviceability
Complete speed maintenance tasks thanks to the hinged fuel tank, which gives impressive access to the engine compartment and makes daily check points easy to locate. A 50 hour lubricating interval also contributes to the best serviceability of this machine.
A VOLVO EXCLUSIVE (options) A VOLVO EXCLUSIVE
Convenient access to the engine compartment thanks to hinged fuel tank, auto engine shutdown and auto-idle, all round fl ow window, 50 hour greasing intervals, Patented hydraulic filter.

Versatile performance
Take on many jobs with one machine thanks to a full range of purpose-built attachments and quickly change the attachments using the Volvo quick coupler. For further flexibility, auxiliary hydraulic flows can be adjusted independently in any direction, ensuring optimum speed and checking which hydraulic unit you work with. A second auxiliary line is also available as an option.
Perfect control
Experience precise, smooth and effortless commands of boom offset and auxiliary hydraulic flows with proportional fingertip controls. The easy-to-use joystick lets you fine tune the maximum hydraulic flow of each attachment to ensure ideal speed and performance for any task.
Versatile performance
Secondary accessory circuit A VOLVO EXCLUSIVE, double-acting circuit for hydraulic quick coupler NEW, Variable undercarriage, less than 1 metre wide
The complete package
range of Volvo buckets and quick couplers, matched Volvo interruption, Genuine Volvo Parts, Volvo Financial Services.
OPTIONAL EQUIPMENT Digging equipment Attachments

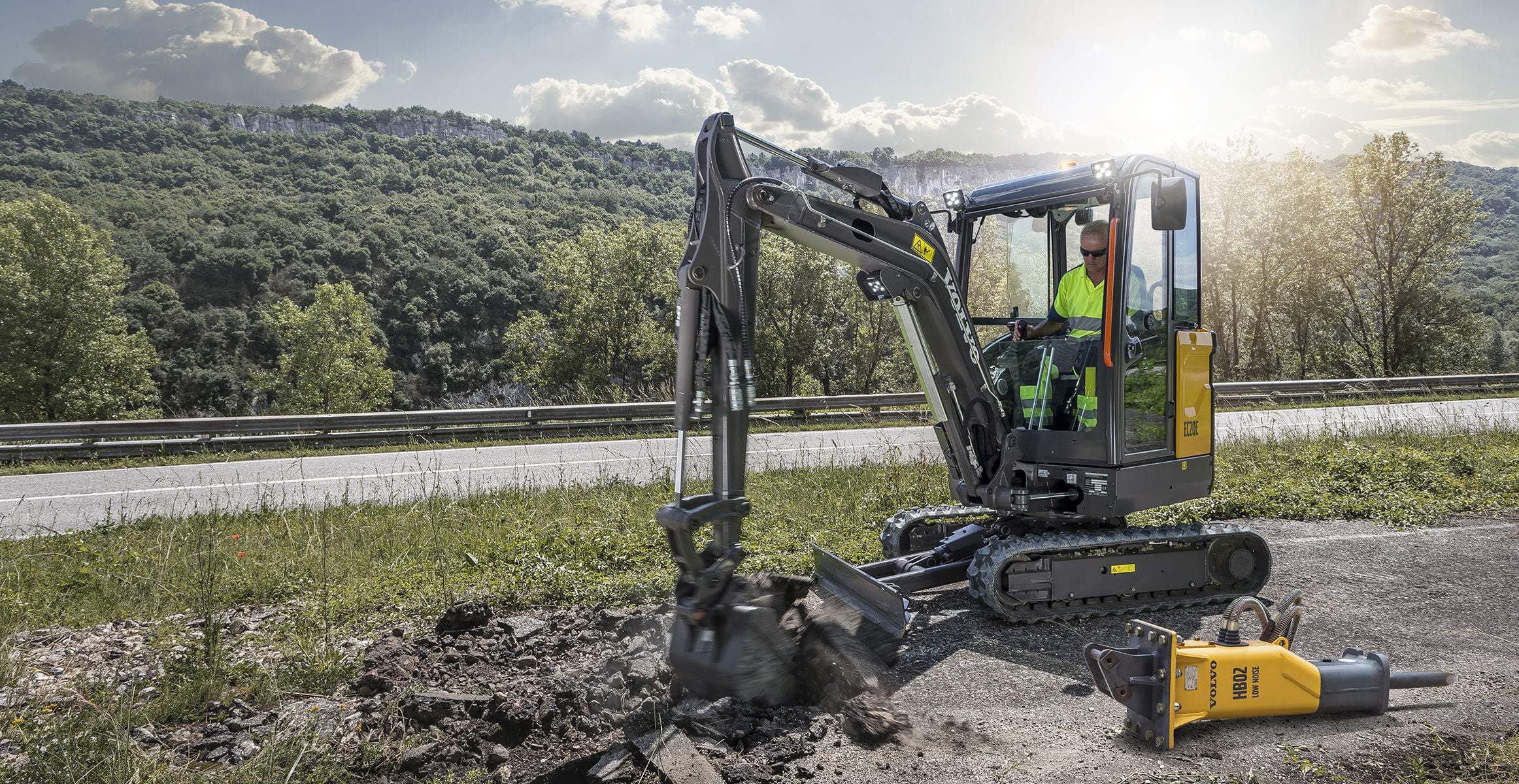

Short arm Long arm Volvo Mechanical Quick Coupler (Pin-On) Lehnhoff the mechanical quick coupler Symmetrical Type Mechanical Quick Coupler (S30) General use bucket Fixed stick bucket Tiltable Bucket Blades Hydraulic Breaker HB02LN
OPTIONAL EQUIPMENT Machine exterior Hydraulics
Left/right rear view mirror A protected worklight on the boom A rear working light Rotating beacon A protected worklight on the boom LED One rear worklight LED works package Warning lights, flashing LED Green Beacy Link to Safety Belt Several dimensions of adjustment (RAL specifications) suitable for your company identity Relief valve for auxiliary forces Breaker/shal valve Hydraulic drain for accessories Second accessory circuit with proportional and adjustable controls Kit 2 flat-fledged hydraulic couplings Kit 4 Flat surface hydraulic quick couplers Double acting circuit for hydraulic quick couplers Boom and arm safety Lift valves Boom, arm and dozer blade Safety lift valves Safety Valve certification Mineral hydraulic oil VG46 Mineral hydraulic oil VG68 BioHydraulic oil VG32 (PANOLINI) Biohydraulic oil VG46 (PANOLINI).

Small but tough
The unique high profile counterweight design consists of three strong cast iron pieces that wrap around the rear of the machine and protect all major components. All-round steel plates, 10mm recessed in by the counterweight, provide further protection.
Compact by design
With a variable undercarriage that pulls back to less than 1m and extends up to 1.35m, combined with reduced machine height down to below 2.35m, you can rely on the compact excavator when working in confined places. The machine design ensures right-hand frame corner, swing post and cylinders stay inside the tracks; resulting in maximum visibility conditions and a reduced risk of machine damage while working alongside obstacles.
A VOLVO EXCLUSIVE
All-around steel plates NEW, High-profile Cast counterweight, Protected Hoses, routed inside, In-track boom oscillation.

Safety first
Safety is fitted to the machine with a ROPS/TOPS/FOPS cab and canopy, large entrance including high level of visibility plus an orange seat belt as standard for easy checks by site managers.
The operator's choice
The spacious and uncluttered cab is designed to keep operators comfortable and productive, while their flat floor makes it easy to stay clean. Superior visibility, ease of layout of controls, fingertip controls and large travel pedals contribute to great ease of operation.
sensor) A VOLVO EXCLUSIVE
High visibility entry steps and cab handrail, orange seat belt A VOLVO EXCLUSIVE, 4 large easy-to-reach locking points on top frame NEW, controls lock options (switch, seat operator presence or articulated seatbelt), Easy access to the cabin.
flow A VOLVO EXCLUSIVE
Simple front window opening with lower-window removal and storage possibility NEW, Fingertip controls, with adjustable hydraulics, Easy operator arrangement, Automatic 2-speed travel, Smooth combined
