EC20B XT Volvo excavator specs & dimensions (2009 - 2010)

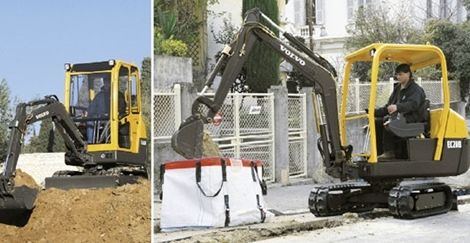

Volvo EC20B XT is a mini excavator manufactured from 2009 to 2010. It has a weight of 1.8 tons and a track width of 250 mm. The tr…

Volvo EC20B XT is a mini excavator manufactured from 2009 to 2010. It has a weight of 1.8 tons and a track width of 250 mm. The transport dimensions are 3.78 meters in length, 1.2 meters in width, and 2.27 meters in height. The bucket width is 0.5 meters with a capacity of 0.06 cubic meters. Special equipment includes a blade and rubber tracks.

Mini Excavators Volvo EC20B XT

Visit Volvo live at

Technical specs - EC20B XT Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.8 t
Transport length
3.78 m
Transport width
1.2 m
Transport height
2.27 m
Bucket capacity
0.06 m³
Bucket width
0.5 m
Track width
250 mm
Driver protection
Kb
Max. Reach horizontal
4.25 m
Dredging depth
2.81 m
Tear-out force
18.5 kN
Model series
EC
Engine manuf.
Volvo
Engine type
D 1 D
Engine power
12 kW
Displacement
1 l
Revolutions at max torque
1800 rpm

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Volvo EC20B XT FAQ

When was the Volvo EC20B XT manufactured?

The Volvo EC20B XT was manufactured from 2009 to 2010.

How much does the Volvo EC20B XT weigh?

The Volvo EC20B XT weighs 1.8 tons.

What are the transport dimensions of the Volvo EC20B XT mini excavator?

The Volvo EC20B XT has a transport length of 3.78 meters, a transport width of 1.2 meters, and a transport height of 2.27 meters.

What is the track width of the Volvo EC20B XT mini excavator?

The Volvo EC20B XT mini excavator has a track width of 250 mm.

What are the excavation performance specifications of the Volvo EC20B XT mini excavator?

The Volvo EC20B XT has a dredging depth of 2.81 meters and a maximum horizontal reach of 4.25 meters.

What is the tear-out force of the Volvo EC20B XT mini excavator?

The Volvo EC20B XT mini excavator has a tear-out force of 18.5 kN.

What are the bucket specifications of the Volvo EC20B XT mini excavator?

The Volvo EC20B XT mini excavator has a bucket capacity of 0.06 cubic meters and a bucket width of 0.5 meters.

What operator safety features does the Volvo EC20B XT have?

The Volvo EC20B XT has a cabin for driver protection.

How much is a Volvo EC20B XT Mini excavator (2009u20132010) worth?

The residual value of the Volvo EC20B XT depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Volvo EC20B XT overview

Dimensions and weight

Transport massRubber TracksSteel Tracks
Cab version1758 kg1814 kg
Canopy version1634 kg1690 kg
Transport massRubber TracksSteel Tracks
Cab version1666 kg1722 kg
Canopy version1542 kg1598 kg
Operating massRubber TracksSteel Tracks
Cab version1809 kg1865 kg
Canopy version1685 kg1741 kg
Operating massRubber TracksSteel Tracks
Cab version1901 kg1957 kg
Canopy version1777 kg1833 kg
Controlpower-assisted hydraulic controls
Variable displacement pump for all the equipment travel and power-assisted circuits:"
Maximum delivery44 l/min.
Maximum operating pressure21 MPa (210 bars)
Double-acting hydraulic circuit for accessories:
Maximum delivery40 l/min
Maximum operating pressure21 MPa (210 bars)
Cushions:
On the boom ramat the rod end
Bucket performance
Breakout force1850 daN
Tearout force1250 daN

Tables

Ground pressureRubber TracksSteel Tracks
Cab version0.30 kg/cm20.31 kg/cm2
Canopy version0.28 kg/cm20.29 kg/cm2
EC20B XT Ground pressureRubber TracksSteel Tracks
Cab version0.29 kg/cm20.30 kg/cm2
Canopy version0.27 kg/cm20.28 kg/cm2
Fuel tank21 |
Hydraulic system total"33 l
Engine oil3.6 l
Cooling system4.5 l
Electrical system Rated voltage12 V
Battery capacity12 V - 45 Ah
Alternator rating12 V - 40 A
Starter motor output12 V - 1.6 kW
Max. speed (low/high speed)2.7 - 4.7 km/h
Max. tractive force1770 daN
Slewing speed9 r/min
Undercarriage
EC20B XT
Track width250 mm
Track tensionby grease piston
Blade height240 mm
Width of the blade1200 mm
Displacement total"952 cc
Gross power rated"12.0 KW (16.1 hp) at 2200 r/min
Power installed (ISO 9249)"11.7 KW (15.7 hp) at 2200 r/min
Maximum torque (ISO 9249)53 Nm at 1800 rpm
Bore x stroke76 mm x 70 mm
Gas emissionPM: 0.4 g/kwh NOx + HC : 7.5 g/kwh CO: 6.6 g/kwh
Buckets EC20B XT/XTVWidthWeightCapacity
Excavator bucket250 mm33 kg30 1
300 mm36 kg32 |
400 mm42 kg47 |
450 mm46 kg55 1
500 mm50 kg62 1
600 mm55 kg77 1
Ditch bucket1000 mm102 kg115 |
GH-JKLMN0
EC20B XT250275124016301075120013603780
EC20B XTV240230124016309751000135013603780
PQRSTUVWX
EC20B XT2602504701620131022109801120
EC20B XTV2602504701620131022109801120
DipperABcDEF
1050 mm3750267025702350235040104100
1300 mm3900282028102600260042504250
