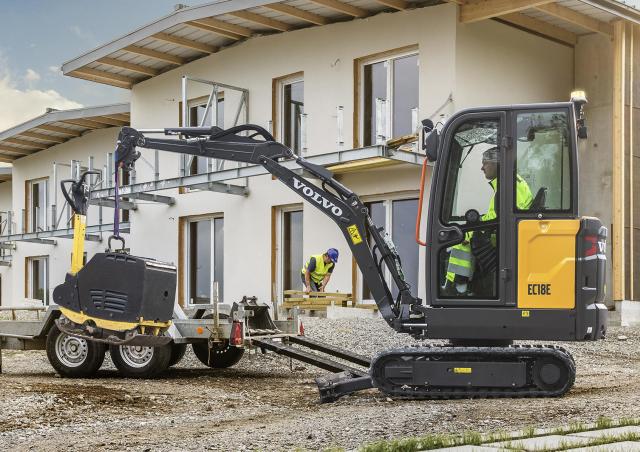

EC18E Volvo excavator specs & dimensions (2018 - 2026)

Small machine, big performance
Bring power to a new level, with an increase in traction force of 13% and 2 130 kg combined digging forces. The 11% longer undercarriage contributes to even better all-round lifting capacity and stability compared to the previous generation. To do so, add the smooth combination of movements that make sorting easier as well as the ability to work near the blade or complete jobs on site has never been faster.
Small machine, big performance
13% increase in traction force, 2 130 kg combined digging forces, Improved lifting effort by an average of 22% forward, 140mm increase in dig depth.
STANDARD EQUIPMENT Engine Drivetrain Electric / Electronic control system Swing system Superstructure Undercarriage Hydraulic system Cab / Canopy Digging equipment
low emission, water cooled, Volvo 3-cylinder diesel engine, meeting EPA Tier 4 and EU Stage V Environmental regulations Starter motor protected against ignition on already running engine Automatic engine cutting in case of overheating or lower oil level Engine starting fuse: the left console must be raised to operate the starter Dry type single-element air filter Water separator and translucent fuel filter Plastic tank with drain plug Automatic two-speed hydraulic motors with reduction gear Internal flange underrolls lubricated for lifetime Grease tension wheel lubricated for life Maintenance free battery IP67protected electrical system and high quality connections Battery disconnect connectors Two working lights on cab version Work light on canopy frame 12V Power socket in cabin with cell phone storage Radial piston Hydraulic motor with integrated shockless valve Automatic multi-disc spring Applied hydraulic slanted brake Centralized and remote lubrication of crown wheel and ball bearings Stamped steel panels all around, excavated 10 to 15mm 4 Integrated locking points on upper structure Box welded construction box Welded frame Frame ISO Remote lubrication of crown wheel and ball bearing Sealed steel panels All round, out 10 to 15mm 4 Integrated locking points on top Structure Linked chassis Lockable seat Seat Mounting System High speed control (adjustment) Safety guard The rear suspension is equipped with a mechanically adjustable
OPTIONAL EQUIPMENT Engine Operator environment
Two Stage Air Filter Auto Idling System Engine Self Shutdown with Time Adjustment Rugged 4-pillar Structure Roof Heated Cab Vinyl Seat with Mechanical Suspension, Low Back and 2 Orange Seat Belt Vinyl Seat with Mechanical Suspension, Extended back with lumbar adjustment and 3 Fold-Up Seat Seat Fabric Seat with Mechanical Suspension, Stretched Back with Lumbar Adjustment and 2 Orange Fold-up Seatbelt Textil Seat with Mechanical Suspension, Extending Back with Lombar Adjustment and 3 Fold-In Seat belt Auxiliary Lock Box (Backside the Seat) Electrical Switch for ISO/SAE Control Pattern Change Travel Alarm Radio, AUX, USB, Bluetooth Radio DAB, USB, Bluetooth, Bluetooth, MP3 Antitheft, Code Closure Theft Protection, Codted Key Control Lockage, Shift Lockout, Seat Service Operation Blocker, Harness Sensor Front & Top Operators Canopy Protectable in Cabin 1 Stubible In cab (2nd stage air filter auto idling system engine self shut down with time setting Robust 4 pillars Structural canopieur roof Heated cabin vinyl seat with mechanical suspension, low back and 2 orange safety belt Vinyl Seat with mechanically adjustable

STANDARD EQUIPMENT Machine controls Instrumentation and monitoring Official approval
Automatic lock-up device for pilot controls and travel levers when the left console is raised Proportional and adjustable fingertip control for boom offset and auxiliary circuit Large travel pedal breaker (full flow) Switching on right joystick Pressure accumulator to lower equipment on ground Permanent digital hour meter visibly from outside Cab Warning lights for hydraulic filter and air filter restriction Engine temperature and fuel level gauge Machine according to European directive 2006/42/EC Noise emissions in the environment According to directive 2000/14/EC Hand arm oscillations - Full body vibration conforming to directive 2002/44/EC Electromagnetic compatibility (EMC) as per Europe directive 2004/108/ec and its modifications Object handling device complying with EN 474-1 and EN 474-5 standards ROPS (Roll-Over Protective Structure) compliant with ISO 3471-1 and SAE J1040 Standards TOPS (Tip-Over Protective Structure) compliance with ISO 12117 and EN 13531 standard OPG 1 (Operator Protective Guard on top) consistent with ISO 10262 Standard (if available)

Perfect control
Experience precise, smooth and effortless commands of boom offset and auxiliary hydraulic flows with proportional fingertip controls. The easy-to-use joystick lets you fine tune the maximum hydraulic flow of each attachment to ensure ideal speed and performance for any task.
Versatile performance
Secondary accessory circuit A VOLVO EXCLUSIVE, double-acting circuit for hydraulic quick coupler NEW, Variable undercarriage, less than 1 metre wide
The complete package
range of Volvo buckets and quick couplers, matched Volvo interruption, Genuine Volvo Parts, Volvo Financial Services.
OPTIONAL EQUIPMENT Hydraulics Digging equipment Machine controls Attachments
Relief valve for auxiliary attachments Breaker/sharpgate Hydraulic drain for accessories Second accessory circuit with proportional and adjustable controls Kit 2 Flat wall hydraulic couplers Kit 4 flat area hydraulic quick couplings Double-acting circuit for hydraulic quick hitch Boom and arm backup lift valves Boom, arm and dozer blade Safety lifting valves Safety Valve certifi cation Mineral hydraulic oil VG32 Mineral hydraulic oil VG46 Oil of mineral hydraulic oil VG68 BioHydraulic oil VG32 (PANOLIN) Biohydraulic oil VG46 (PANOLIN): Shortarm Long arms On/Off Fingertip control for boom offset and auxiliary gear Volvo mechanical quick clutch (pin-on) Lehnhoff ] Mechanical quick coupler Symmetrical type Mechanic Quick Coupler (S30) General purpose bucket Fixed sewing bucket Tiltable welders Hydraulic breaker HB02LN

Compact by design
With a variable undercarriage that pulls back to less than 1m and extends up to 1.35m, combined with reduced machine height down to below 2.35m, you can rely on the compact excavator when working in confined places. The machine design ensures right-hand frame corner, swing post and cylinders stay inside the tracks; resulting in maximum visibility conditions and a reduced risk of machine damage while working alongside obstacles.

Best-in-class serviceability
Complete speed maintenance tasks thanks to the hinged fuel tank, which gives impressive access to the engine compartment and makes daily check points easy to locate. A 50 hour lubricating interval also contributes to the best serviceability of this machine.
Safety first
Safety is fitted to the machine with a ROPS/TOPS/FOPS cab and canopy, large entrance including high level of visibility plus an orange seat belt as standard for easy checks by site managers.
The operator's choice
The spacious and uncluttered cab is designed to keep operators comfortable and productive, while their flat floor makes it easy to stay clean. Superior visibility, ease of layout of controls, fingertip controls and large travel pedals contribute to great ease of operation.
seatbelt A VOLVO EXCLUSIVE A VOLVO EXCLUSIVE
High visibility entrance steps and cab handrail, orange, 4 large easy-to-reach locking points on top frame NEW, controls lock options (switch, seat operator presence or articulated seat belt sensor), Easy entry into the cabin.
The operator's choice
Simple front window opening with lower window removal and storage possibility NEW, Fingertip controls, with adjustable hydraulic flow A VOLVO EXCLUSIVE, Easy operator arrangement, Automatic 2-speed travel, Smooth combined movements.
A VOLVO EXCLUSIVE A VOLVO EXCLUSIVE
Convenient access to the engine compartment thanks to hinged fuel tank, auto engine shutdown and auto-idle (options), all round flat windows, 50 hour greasing intervals, Patented hydraulic filter
Auto-idle and auto engine shutdown
Not all products are available in all markets. Under our policy of continuous improvement, we reserve the right to change specifications and design without notice.

Small but tough
The unique high profile counterweight design consists of three strong cast iron pieces that wrap around the rear of the machine and protect all major components. All-round steel plates, 10mm recessed in by the counterweight, provide further protection.
Small but tough
All-around steel plates NEW, High-profile cast counterweight A VOLVO EXCLUSIVE, Boom cylinder top, Protected hoses, routed inside the boom, In-track boom.
OPTIONAL EQUIPMENT Machine exterior Undercarriage
Tool kit Left/right rear view mirror A protected worklight on the boom A rear working light Rotating beacon One protected worklight on the boom LED 1 rear worklight LED jobs package Warning lights, flashing LED Green Beacons Link to seat belt Heavy counterweight Several dimensions of adjustment (RAL specifications) matching your corporate identity 230mm rubber tracks 230mm steel tracks short dozer blade Long dozer blade
