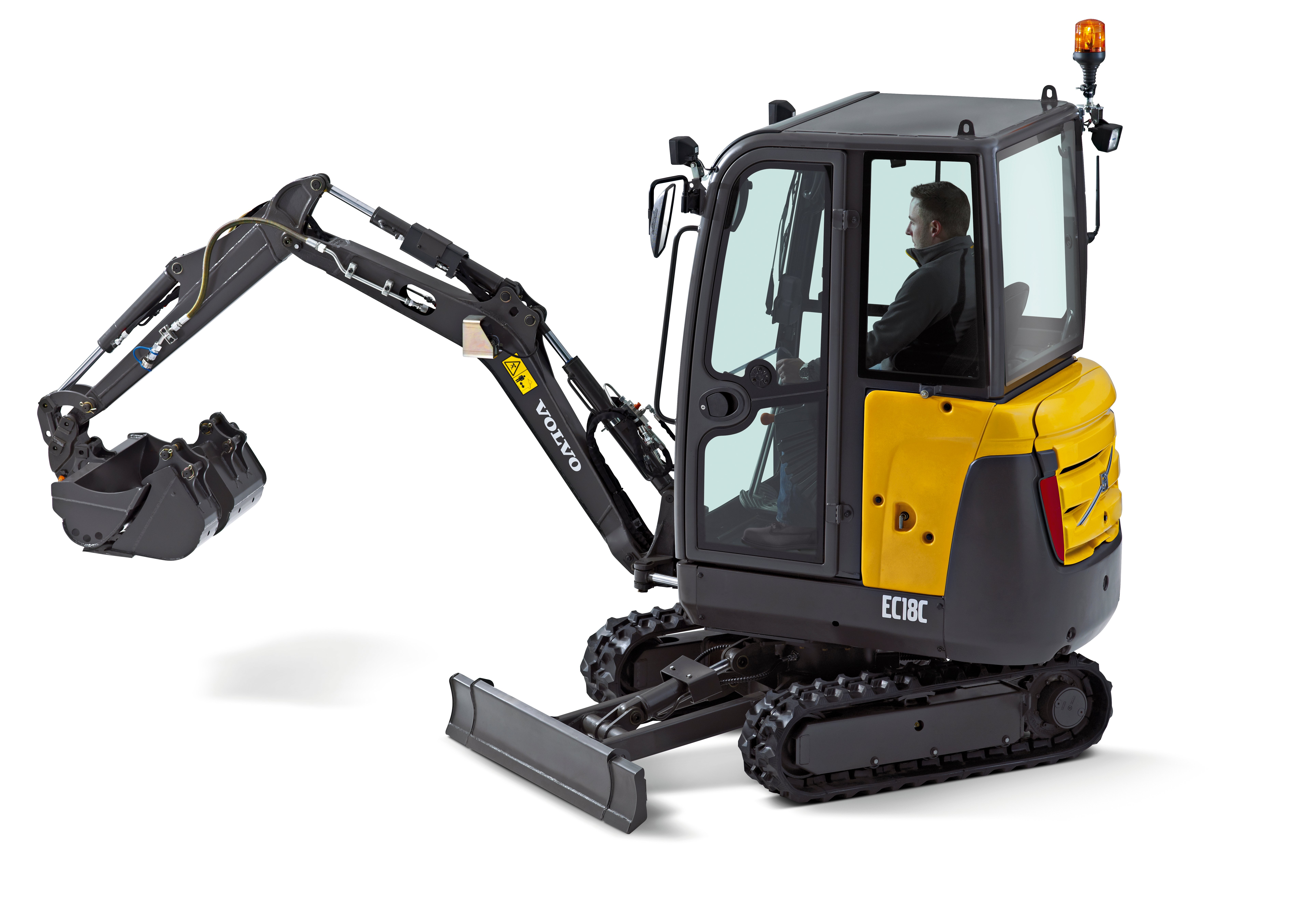

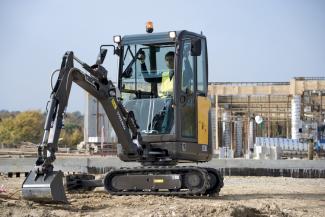

EC18C Volvo excavator specs & dimensions (2010 - 2016)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Visit Volvo live at
.jpg){kind=logo}
Technical specs - EC18C Volvo
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 1.8 t
- Transport length
- 3.591 m
- Transport width
- 0.993 m
- Transport height
- 2.394 m
- Bucket capacity
- 0.04 m³
- Bucket width
- 0.5 m
- Track width
- 230 mm
- Driver protection
- Kb
- Max. Reach horizontal
- 3.46 m
- Dredging depth
- 2.097 m
- Tear-out force
- 9 kN
- Model series
- EC
- Engine manuf.
- Volvo
- Engine type
- D1.1DCAE 4
- Engine power
- 12.3 kW
- Displacement
- 1.1 l
- Revolutions at max torque
- 1500 rpm
- Max. torque
- 65.2 Nm
- No. of cylinders
- 3
- Cylinder bore x stroke
- 76x82 mm
- Emission level
- Tier 4
More technical details, like: bucket capacity min., bucket capacity max., standard tyres, dimension lxwxh are available in the full technical specs.
Basic model with standard bucket
Special equipment
- Track adjustment
-
Yes
- Rubber track
-
Yes
- Blade
-
Yes
- Aircondition
-
No
- Quick hitch hydr.
-
No
- Quick hitch mech.
-
No
Download datasheets (PDF)
Volvo EC18C FAQ
How much does the Volvo EC18C mini excavator weigh?
What are the transport dimensions of the Volvo EC18C mini excavator?
What is the track width of the Volvo EC18C's undercarriage?
What are the excavation performance specifications of the Volvo EC18C mini excavator?
What is the tear-out force of the Volvo EC18C?
What are the bucket specifications of the Volvo EC18C mini excavator?
What operator safety and support features does the Volvo EC18C have?
How much is a Volvo EC18C Mini excavator (2010u20132016) worth?
