EC15E Volvo excavator specs & dimensions (2018 - 2026)

Volvo EC15E is a mini excavator manufactured since 2018, with a weight of 1.64 tons. It features a track width of 230 mm, a transp…

Volvo EC15E is a mini excavator manufactured since 2018, with a weight of 1.64 tons. It features a track width of 230 mm, a transport length of 3.755 meters, a transport width of 0.955 meters, and a transport height of 2.334 meters. The machine has a tear-out force of 12.9 kN, a dredging depth of 2.474 meters, and a maximum horizontal reach of 3.8 meters. The bucket width is 0.45 meters with a minimum bucket capacity of 0.036 m³. It is equipped with a blade.

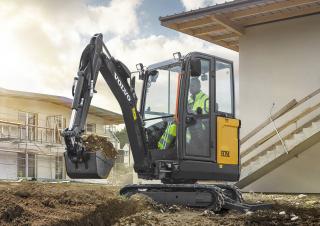

Mini Excavators Volvo EC15E
Mini Excavators Volvo EC15E
Mini Excavators Volvo EC15E
Mini Excavators Volvo EC15E

Visit Volvo live at

Technical specs - EC15E Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.64 t
Transport length
3.755 m
Transport width
0.955 m
Transport height
2.334 m
Bucket capacity min.
0.036 m³
Bucket width
0.45 m
Track width
230 mm
Driver protection
FD/Kb
Max. Reach horizontal
3.8 m
Dredging depth
2.474 m
Tear-out force
12.9 kN
Model series
EC
Engine manuf.
Volvo
Engine type
D 0.9 A
Engine power
12 kW
Displacement
0.898 l
Revolutions at max torque
2300 rpm
Max. torque
52/1800 Nm
No. of cylinders
3
Cylinder bore x stroke
72x73.6 mm

More technical details, like: bucket capacity, bucket capacity max., standard tyres, dimension lxwxh, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Volvo EC15E FAQ

When was the Volvo EC15E manufactured?

The Volvo EC15E was first produced in 2018.

How much does the Volvo EC15E mini excavator weigh?

The Volvo EC15E mini excavator weighs 1.64 tons.

What are the transport dimensions of the Volvo EC15E mini excavator?

The Volvo EC15E has a transport length of 3.76 meters, a transport width of 0.96 meters, and a transport height of 2.33 meters.

What is the track width of the Volvo EC15E mini excavator?

The Volvo EC15E mini excavator has a track width of 230 mm.

What is the excavation performance of the Volvo EC15E mini excavator?

The Volvo EC15E mini excavator has a dredging depth of 2.474 meters and a maximum horizontal reach of 3.8 meters.

What is the tear-out force of the Volvo EC15E mini excavator?

The Volvo EC15E mini excavator has a tear-out force of 12.9 kN.

What are the bucket specifications of the Volvo EC15E mini excavator?

The Volvo EC15E mini excavator has a minimum bucket capacity of 0.04 cubic meters and a bucket width of 0.45 meters.

What operator safety features does the Volvo EC15E have?

The Volvo EC15E has driver protection in the form of a canopy and a cabin.

How much is a Volvo EC15E Mini excavator (2018u20132025) worth?

The residual value of the Volvo EC15E depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Volvo EC15E overview

Engine / Driveline and transmission

Best-in-class serviceability
Complete speed maintenance tasks thanks to the hinged fuel tank, which gives impressive access to the engine compartment and makes daily check points easy to locate. A 50 hour lubricating interval also contributes to the best serviceability of this machine.
Maximize profitability
Comfortable access to the engine compartment thanks to hinged fuel tank A VOLVO EXCLUSIVE, all round flat windows, 50 hour greasing intervals, Patented

Environment

Safe and easy operation
The roomy and uncluttered operator environment of the machine is designed to ensure you are safe and focused at work, including simple layout of controls, fingertip controls and large travel pedals. Safety is fitted on the machine with a ROPS/TOPS/FOPS cab and canopy, big entrance including high viewing level as well as an orange seat belt standard for easy checks by site managers.
Operate with ease
Fingertip controls A VOLVO EXCLUSIVE, Simple operator arrangement, Uncluttered floor, large travel pedals, Smooth combined movements.

Dimensions and weight

2.0 mLifting point 3.0 m(A) Max reachMax. m
Lifting point height (B) m
2kg----2742282.95
Arm: 950mm + Dozer blade up1kg441*3742602162251873.32
0kg4303492522092241853.28
-1kg427*349--238*2252.81
Arm: 950mm + Dozer blade down2kg----278*2282.95
1kg441*374291*216263*1873.32
0kg544*349295*209247*1853.28
-1kg427*349--238*2252.81
Arm: 1 150mm + Dozer blade up2kg--241*222228*2033.15
1kg364*364*2612162071723.51
0kg4303482512072061713.49
-1kg425344235*206225*2023.06
Arm: 1 150mm + Dozer blade down2kg--241*222228*2033.15
1kg364*364*274*216236*1723.51
0kg549*348297*207229*1713.49
-1kg455*344235*206225*2023.06
Arm: 1 150mm + Dozer blade down + Heavy counterweight2kg--241*238228*2203.15
1kg364*365*274*232236*1853.51
0kg549*373297*223229*1833.49
-1kg455*369235*221225*2163.06
Operating weight according to ISO 6016kg1 640
Ground pressure (cab)kPa28.4
Transport weightkg1 565
With rubber tracksmm230
With short armmm950
With fuel tank capacity%100
With canopy-kg84
With long arm+kg4
With heavy counterweight+kg38
Hydraulic system
Maximum system flowl/min34
Maximum flow for accessoriesl/min30
Maximum operating pressureMPa17
Travel System
Max drawbar pull"daN1 160
Max. travel speed lowkm/h1.9
Gradeability°30
Service Refill
Fuel tankl21
Hydraulic system total"l21
Hydraulic tankl15
Sound Level
DescriptionUnitEC15E
Armmm9501150
AMaximum cutting heightmm3 4393582
BMaximum dump heightmm2 4442588
B*Maximum bucket clearancemm2 4822625
CDigging depthmm2 2342434
C*Maximum digging depthmm2 4742670
DMaximum vertical wall digging depthmm1 8982091
EMaximum digging reach at ground levelmm3 8003993
GHighest position dozer blademm221
HLowest position dozer blademm296
JTrack lengthmm1462
KDozer blade maximum reach at ground level"mm1028
LOverall width with 230mm tracksmm995
MOverall lengthmm3 550 3431
M*Transport length (arm lowered)mm3 755 3 768
PDozer blade heightmm230
QShoe width (rubber)mm230
RGround clearance to superstructuremm453
SFront slew radiusmm1 4551476
TFront slew radius with maximum offsetmm1 1811184
UOverall height cabmm2334
U*Overall height canopymm2298
XTail slew radiusmm1018
X*Rear overhang (across tracks)mm342
β1Maximum boom offset to the rightmm418
β2Maximum boom offset to the leftmm525

Tables

Engine
EngineD0.9A
Max. power atr/min2 300
GrosskW12
hp16.3
According to ISO 2534 / SAE J1995
Max. torqueNm52
at engine speedr/min1 800
No. of cylinders3
Displacementcm³898
Boremm72
Strokemm73.6
Compression ratio24
Electrical system
BatteryV1 x 12
Battery capacityAh42
AlternatorV/Ah12/40
Swing system
Max slew speed"r/min9.5
Max slew torque"daNm243
Undercarriage
Bottom/top rollers per side3 / 0
Track tensionBy grease piston
Blade (width x height)mm990 x 230
Digging Performances
Standard bucket width (blade W/O side cutter)"mm450
Standard bucket masskg33
Standard bucket rated capacityl36
Bucket rotation°196
Bucket breakout force (ISO)daN1 290
Short arm tearout force (ISO)daN 795
Long arm tearout force (ISO)daN695
