HR 13 Terex-Schaeff excavator specs & dimensions (2001 - 2004)

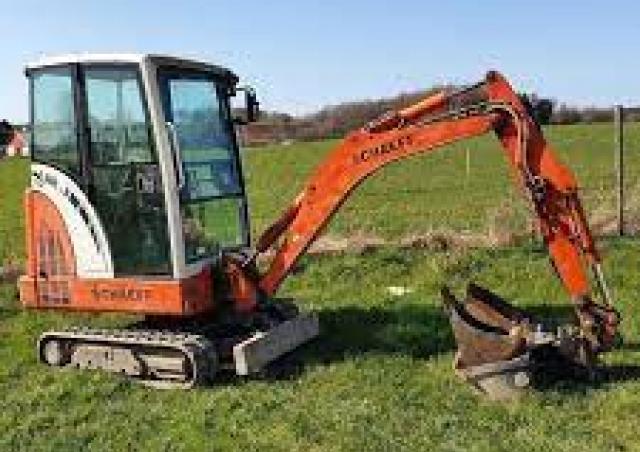

Terex-Schaeff HR 13 is a mini excavator manufactured from 2001 to 2004. It has a weight of 1.93 tons and a track width of 230 mm. …

Terex-Schaeff HR 13 is a mini excavator manufactured from 2001 to 2004. It has a weight of 1.93 tons and a track width of 230 mm. The transport dimensions are 2.68 meters in length, 1 meter in width, and 2.74 meters in height. The machine features a tear-out force of 11 kN, a bucket width of 1 meter, and a bucket capacity of 0.069 cubic meters. Special equipment includes a blade, rubber track, and track adjustment.

Mini Excavators Terex-Schaeff HR 13

Technical specs - HR 13 Terex-Schaeff

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.93 t
Transport length
2.68 m
Transport width
1 m
Transport height
2.74 m
Bucket capacity
0.069 m³
Bucket width
1 m
Track width
230 mm
Driver protection
Kb
Max. Reach horizontal
3.74 m
Dredging depth
2.5 m
Tear-out force
11 kN
Model series
HR
Engine manuf.
Mitsubishi
Engine type
L 3 E 61 KL
Engine power
13.3 kW
Displacement
0.952 l
Revolutions at max torque
2400 rpm

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Terex-Schaeff HR 13 FAQ

When was the Terex-Schaeff HR 13 manufactured?

The Terex-Schaeff HR 13 was manufactured from 2001 to 2004.

How much does the Terex-Schaeff HR 13 weigh?

The Terex-Schaeff HR 13 weighs 1.93 tons.

What are the transport dimensions of the Terex-Schaeff HR 13 mini excavator?

The Terex-Schaeff HR 13 has a transport length of 2.68 meters, a transport width of 1 meter, and a transport height of 2.74 meters.

What is the track width of the Terex-Schaeff HR 13 mini excavator?

The Terex-Schaeff HR 13 mini excavator has a track width of 230 mm.

What are the excavation performance specifications of the Terex-Schaeff HR 13 mini excavator?

The Terex-Schaeff HR 13 has a dredging depth of 2.5 meters and a maximum horizontal reach of 3.74 meters.

What is the tear-out force of the Terex-Schaeff HR 13?

The Terex-Schaeff HR 13 has a tear-out force of 11 kN.

What are the specifications of the primary work tool on the Terex-Schaeff HR 13 mini excavator?

The primary work tool of the Terex-Schaeff HR 13 mini excavator has a bucket capacity of 0.069 cubic meters and a bucket width of 1 meter.

What operator safety features does the Terex-Schaeff HR 13 have?

The Terex-Schaeff HR 13 has a cabin for driver protection.

How much is a Terex-Schaeff HR 13 Mini excavator (2001u20132004) worth?

The residual value of the Terex-Schaeff HR 13 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
