HR 11 Terex-Schaeff excavator specs & dimensions (2001 - 2004)

Model rating
10,00 / 10

Terex-Schaeff HR 11 is a mini excavator manufactured from 2001 to 2004. It has a weight of 1.47 tons and a track width of 230 mm. …

Terex-Schaeff HR 11 is a mini excavator manufactured from 2001 to 2004. It has a weight of 1.47 tons and a track width of 230 mm. The transport dimensions are 2.5 meters in length, 1 meter in width, and 2.39 meters in height. The bucket width is 0.6 meters with a capacity of 0.061 cubic meters. Special equipment includes a blade and rubber track.

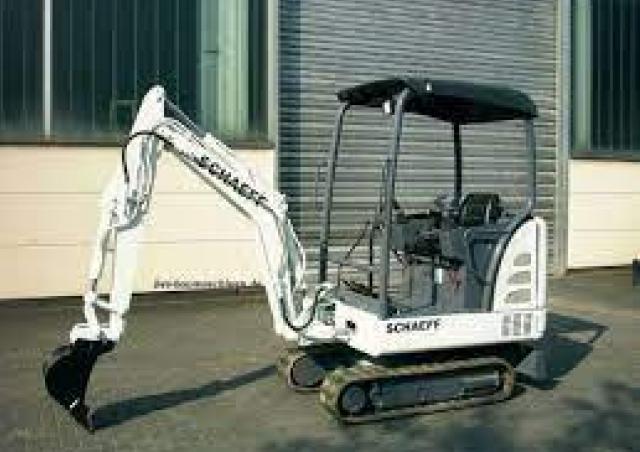

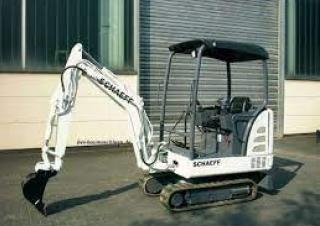

Mini Excavators Terex-Schaeff HR 11

Technical specs - HR 11 Terex-Schaeff

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.47 t
Transport length
2.5 m
Transport width
1 m
Transport height
2.39 m
Bucket capacity
0.061 m³
Bucket width
0.6 m
Track width
230 mm
Driver protection
FD
Max. Reach horizontal
3.33 m
Dredging depth
2.18 m
Tear-out force
9.3 kN
Model series
HR
Engine manuf.
Mitsubishi
Engine type
L 3 E 61 KL
Engine power
13.3 kW
Displacement
0.952 l
Revolutions at max torque
2400 rpm

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Terex-Schaeff HR 11 FAQ

When was the Terex-Schaeff HR 11 manufactured?

The Terex-Schaeff HR 11 was manufactured from 2001 to 2004.

How much does the Terex-Schaeff HR 11 weigh?

The Terex-Schaeff HR 11 weighs 1.47 tons.

What are the transport dimensions of the Terex-Schaeff HR 11 mini excavator?

The Terex-Schaeff HR 11 has a transport length of 2.5 meters, a transport width of 1 meter, and a transport height of 2.39 meters.

What is the track width of the Terex-Schaeff HR 11 mini excavator?

The Terex-Schaeff HR 11 mini excavator has a track width of 230 mm.

What are the excavation performance specifications of the Terex-Schaeff HR 11?

The Terex-Schaeff HR 11 has a dredging depth of 2.18 meters and a maximum horizontal reach of 3.33 meters.

What is the tear-out force of the Terex-Schaeff HR 11?

The Terex-Schaeff HR 11 has a tear-out force of 9.3 kN.

What are the bucket specifications of the Terex-Schaeff HR 11 mini excavator?

The Terex-Schaeff HR 11 mini excavator has a bucket capacity of 0.061 cubic meters and a bucket width of 0.6 meters.

What operator safety and support features does the Terex-Schaeff HR 11 have?

The Terex-Schaeff HR 11 is equipped with a canopy for driver protection.
