SWE25F Sunward excavator specs & dimensions (2020 - 2026)

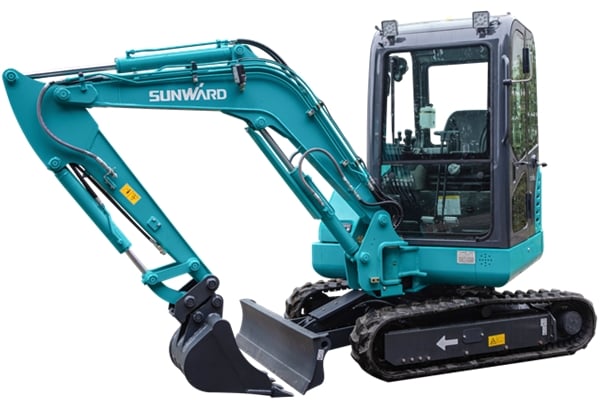

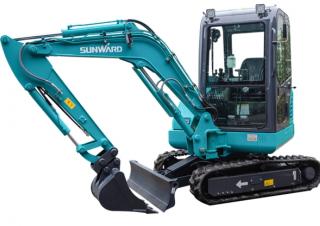

Sunward SWE25F is a mini excavator manufactured since 2020. It has a weight of 2.64 tons and a track width of 300 mm. The transpor…

Sunward SWE25F is a mini excavator manufactured since 2020. It has a weight of 2.64 tons and a track width of 300 mm. The transport dimensions are 4.26 meters in length, 1.5 meters in width, and 2.4 meters in height. The machine features a tear-out force of 24 kN, a dredging depth of 2.71 meters, and a maximum horizontal reach of 4.85 meters. The bucket width is 0.58 meters with a capacity of 0.08 cubic meters. Special equipment includes a blade and rubber tracks.

Mini Excavators Sunward SWE25F

Technical specs - SWE25F Sunward

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.64 t
Transport length
4.26 m
Transport width
1.5 m
Transport height
2.4 m
Bucket capacity
0.08 m³
Bucket width
0.58 m
Track width
300 mm
Driver protection
FD/Kb
Max. Reach horizontal
4.85 m
Dredging depth
2.71 m
Tear-out force
24 kN
Model series
SWE
Engine manuf.
Yanmar
Engine type
3TNV80F-SPSU
Engine power
14.6 kW
Displacement
1.267 l
Revolutions at max torque
2400 rpm
Max. torque
67,4/1800 Nm
Emission level
US IV

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Sunward SWE25F FAQ

When was the Sunward SWE25F manufactured?

The Sunward SWE25F was first produced in 2020.

How much does the Sunward SWE25F mini excavator weigh?

The Sunward SWE25F mini excavator weighs 2.64 tons.

What are the transport dimensions of the Sunward SWE25F mini excavator?

The Sunward SWE25F has a transport length of 4.26 meters, a transport width of 1.5 meters, and a transport height of 2.4 meters.

What is the track width of the Sunward SWE25F mini excavator's undercarriage?

The Sunward SWE25F mini excavator has a track width of 300 mm.

What are the excavation performance specifications of the Sunward SWE25F mini excavator?

The Sunward SWE25F mini excavator has a dredging depth of 2.71 meters and a maximum horizontal reach of 4.85 meters.

What is the tear-out force of the Sunward SWE25F mini excavator?

The Sunward SWE25F mini excavator has a tear-out force of 24 kN.

What are the bucket specifications of the Sunward SWE25F mini excavator?

The Sunward SWE25F mini excavator has a bucket capacity of 0.08 cubic meters and a bucket width of 0.58 meters.

What operator safety and support features does the Sunward SWE25F have?

The Sunward SWE25F has driver protection in the form of a canopy and a cabin.
