SWE18UF Sunward excavator specs & dimensions (2026 - 2026)

Weight: 1.88t – Transport length: 3.58m – Transport width: 0.99m – Transport height: 2.4m – Bucket capacity: 0.04m³ – Track width:…

Weight: 1.88t – Transport length: 3.58m – Transport width: 0.99m – Transport height: 2.4m – Bucket capacity: 0.04m³ – Track width: 230mm

Check out detailed specifications, information and technical data for Sunward SWE18UF excavator manufactured between 2026 - 2026. Get more in-depth insight with Sunward SWE18UF digger specifications. See information, like: Weight: 1.88t – Transport length: 3.58m – Transport width: 0.99m – Transport height: 2.4m – Bucket capacity: 0.04m³ – Track width: 230mm and more.

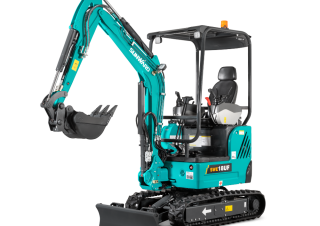

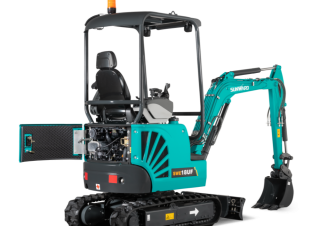

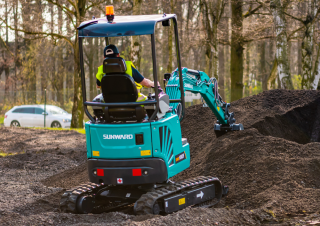

Mini Excavators Sunward SWE18UF
Mini Excavators Sunward SWE18UF
Mini Excavators Sunward SWE18UF
Mini Excavators Sunward SWE18UF
Mini Excavators Sunward SWE18UF
Mini Excavators Sunward SWE18UF
Mini Excavators Sunward SWE18UF
Mini Excavators Sunward SWE18UF

Technical specs - SWE18UF Sunward

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.88 t
Transport length
3.58 m
Transport width
0.99 m
Transport height
2.4 m
Bucket capacity
0.04 m³
Track width
230 mm
Driver protection
FD
Max. Reach horizontal
4.16 m
Dredging depth
2.39 m
Tear-out force
22.7 kN
Model series
SWE
Engine manuf.
Kubota
Engine type
D1105
Engine power
14 kW
Displacement
1.123 l
Revolutions at max torque
2200 rpm
Max. torque
71,4/1600 Nm
Emission level
V

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No
