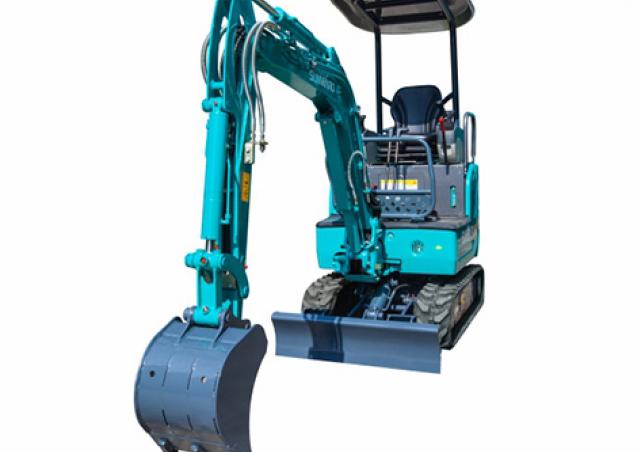

SWE18UF Sunward excavator specs & dimensions (2020 - 2026)

Sunward SWE18UF is a mini excavator manufactured since 2020, with a weight of 1.88 tons. It features a track width of 230 mm, a tr…

Sunward SWE18UF is a mini excavator manufactured since 2020, with a weight of 1.88 tons. It features a track width of 230 mm, a transport length of 3.58 meters, a transport width of 0.99 meters, and a transport height of 2.42 meters. The machine has a tear-out force of 22.7 kN, a dredging depth of 2.21 meters, and a maximum horizontal reach of 3.94 meters. The bucket width is 0.38 meters with a capacity of 0.04 cubic meters. Special equipment includes a blade and rubber tracks.

Mini Excavators Sunward SWE18UF

Technical specs - SWE18UF Sunward

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.88 t
Transport length
3.58 m
Transport width
0.99 m
Transport height
2.42 m
Bucket capacity
0.04 m³
Bucket width
0.38 m
Track width
230 mm
Driver protection
FD
Max. Reach horizontal
3.94 m
Dredging depth
2.21 m
Tear-out force
22.7 kN
Model series
SWE
Engine manuf.
Yanmar
Engine type
3TNV80F-SSSU
Engine power
13.4 kW
Displacement
1.267 l
Revolutions at max torque
2200 rpm
No. of cylinders
3
Emission level
US IV

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Sunward SWE18UF FAQ

When was the Sunward SWE18UF manufactured?

The Sunward SWE18UF was first produced in 2020.

How much does the Sunward SWE18UF mini excavator weigh?

The Sunward SWE18UF mini excavator weighs 1.88 tons.

What are the transport dimensions of the Sunward SWE18UF mini excavator?

The Sunward SWE18UF has a transport length of 3.58 meters, a transport width of 0.99 meters, and a transport height of 2.42 meters.

What is the track width of the Sunward SWE18UF mini excavator?

The Sunward SWE18UF mini excavator has a track width of 230 mm.

What is the excavation performance of the Sunward SWE18UF mini excavator?

The Sunward SWE18UF mini excavator has a dredging depth of 2.21 meters and a maximum horizontal reach of 3.94 meters.

What is the tear-out force of the Sunward SWE18UF mini excavator, given that no engine power rating is provided?

The Sunward SWE18UF mini excavator has a tear-out force of 22.7 kN, and no engine power rating is provided in the available data.

What are the bucket specifications of the Sunward SWE18UF mini excavator?

The Sunward SWE18UF mini excavator has a bucket capacity of 0.04 cubic meters and a bucket width of 0.38 meters.

What operator safety and support features does the Sunward SWE18UF have?

The Sunward SWE18UF is equipped with a canopy for driver protection.

How much is a Sunward SWE18UF Mini excavator (2020u20132025) worth?

The residual value of the Sunward SWE18UF depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
