SWE17F Sunward excavator specs & dimensions (2023 - 2026)

Weight: 1.78t – Transport length: 3.84m – Transport width: 0.99m – Transport height: 2.36m – Bucket capacity: 0.035m³ – Track widt…

Weight: 1.78t – Transport length: 3.84m – Transport width: 0.99m – Transport height: 2.36m – Bucket capacity: 0.035m³ – Track width: 230mm

Check out detailed specifications, information and technical data for Sunward SWE17F excavator manufactured between 2023 - 2026. Get more in-depth insight with Sunward SWE17F digger specifications. See information, like: Weight: 1.78t – Transport length: 3.84m – Transport width: 0.99m – Transport height: 2.36m – Bucket capacity: 0.035m³ – Track width: 230mm and more.

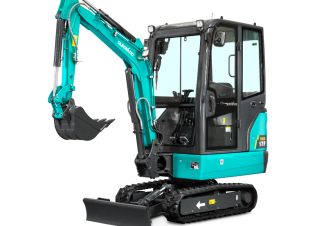

Mini Excavators Sunward SWE17F
Mini Excavators Sunward SWE17F
Mini Excavators Sunward SWE17F
Mini Excavators Sunward SWE17F
Mini Excavators Sunward SWE17F
Mini Excavators Sunward SWE17F
Mini Excavators Sunward SWE17F
Mini Excavators Sunward SWE17F
Mini Excavators Sunward SWE17F
Mini Excavators Sunward SWE17F

Technical specs - SWE17F Sunward

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.78 t
Transport length
3.84 m
Transport width
0.99 m
Transport height
2.36 m
Bucket capacity
0.035 m³
Track width
230 mm
Driver protection
Kb
Max. Reach horizontal
3.885 m
Dredging depth
2.06 m
Model series
SWE
Engine manuf.
Yanmar
Engine type
3TNV80-SSU
Engine power
13.4 kW
Displacement
1.267 l
Revolutions at max torque
2200 rpm
Max. torque
67,4/1600 Nm
No. of cylinders
3
Emission level
V

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, tear-out force, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No
