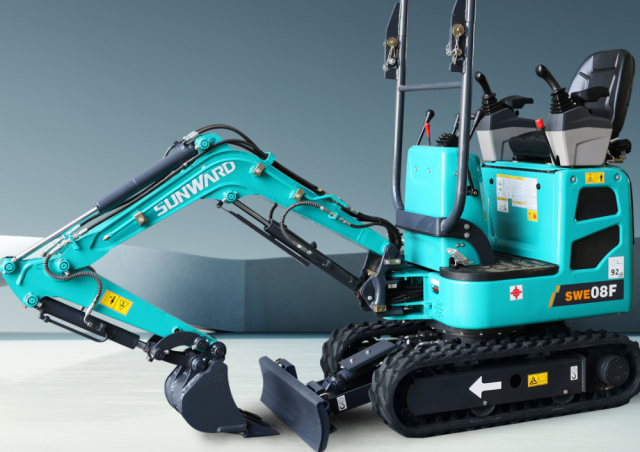

SWE08F Sunward excavator specs & dimensions (2025 - 2026)
Visit Sunward live at
Technical specs - SWE08F Sunward
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 1.01 t
- Transport length
- 2.64 m
- Transport width
- 0.75 m
- Transport height
- 2.275 m
- Bucket capacity
- 0.022 m³
- Track width
- 180 mm
- Driver protection
- FD
- Max. Reach horizontal
- 2.74 m
- Dredging depth
- 1.45 m
- Tear-out force
- 9.4 kN
- Model series
- SWE
- Engine manuf.
- Yanmar
- Engine type
- 2TNV70-PSU
- Engine power
- 7.2 kW
- Displacement
- 0.57 l
- Revolutions at max torque
- 1800 rpm
- Max. torque
- 34,4/1800 Nm
- No. of cylinders
- 2
- Emission level
- V
More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.
Basic model with standard bucket
Special equipment
- Track adjustment
-
No
- Rubber track
-
No
- Blade
-
Yes
- Aircondition
-
No
- Quick hitch hydr.
-
No
- Quick hitch mech.
-
No
