SWE 30 U Sunward excavator specs & dimensions (2008 - 2023)

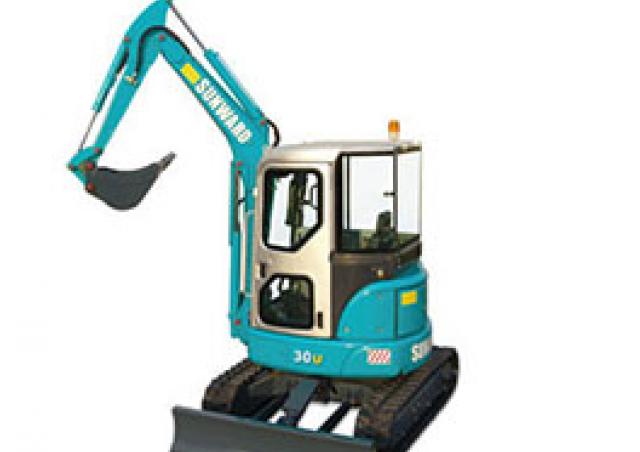

Sunward SWE 30 U is a mini excavator manufactured since 2008. It has a weight of 3.45 tons, a transport length of 4.515 meters, a …

Sunward SWE 30 U is a mini excavator manufactured since 2008. It has a weight of 3.45 tons, a transport length of 4.515 meters, a transport width of 1.564 meters, and a transport height of 2.538 meters. The dredging depth is 2.538 meters, with a maximum horizontal reach of 4.883 meters. The bucket capacity is 0.08 cubic meters.

Mini Excavators Sunward SWE 30 U

Technical specs - SWE 30 U Sunward

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.45 t
Transport length
4.515 m
Transport width
1.564 m
Transport height
2.538 m
Bucket capacity
0.08 m³
Driver protection
Kb
Max. Reach horizontal
4.883 m
Dredging depth
2.538 m
Tear-out force
18.2 kN
Model series
SWE
Engine manuf.
Yanmar
Engine type
k.A.
Engine power
19.8 kW
Displacement
1.642 l
Revolutions at max torque
2200 rpm

More technical details, like: bucket capacity min., bucket capacity max., bucket width, track width, standard tyres, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Sunward SWE 30 U FAQ

When was the Sunward SWE 30 U manufactured?

The Sunward SWE 30 U was manufactured from 2008 to 2023.

How much does the Sunward SWE 30 U weigh?

The Sunward SWE 30 U weighs 3.45 tons.

What are the transport dimensions of the Sunward SWE 30 U mini excavator?

The Sunward SWE 30 U has a transport length of 4.52 meters, a transport width of 1.56 meters, and a transport height of 2.54 meters.

What are the dredging depth and maximum horizontal reach of the Sunward SWE 30 U mini excavator?

The Sunward SWE 30 U has a dredging depth of 2.538 meters and a maximum horizontal reach of 4.883 meters.

What are the power ratings of the Sunward SWE 30 U mini excavator?

There is no power rating information available for the Sunward SWE 30 U mini excavator in the provided data.

What is the bucket capacity of the Sunward SWE 30 U mini excavator?

The Sunward SWE 30 U mini excavator has a bucket capacity of 0.08 cubic meters.

What operator safety and support features does the Sunward SWE 30 U have?

The Sunward SWE 30 U has a cabin for driver protection.
