SWE 17 Sunward excavator specs & dimensions (2006 - 2023)

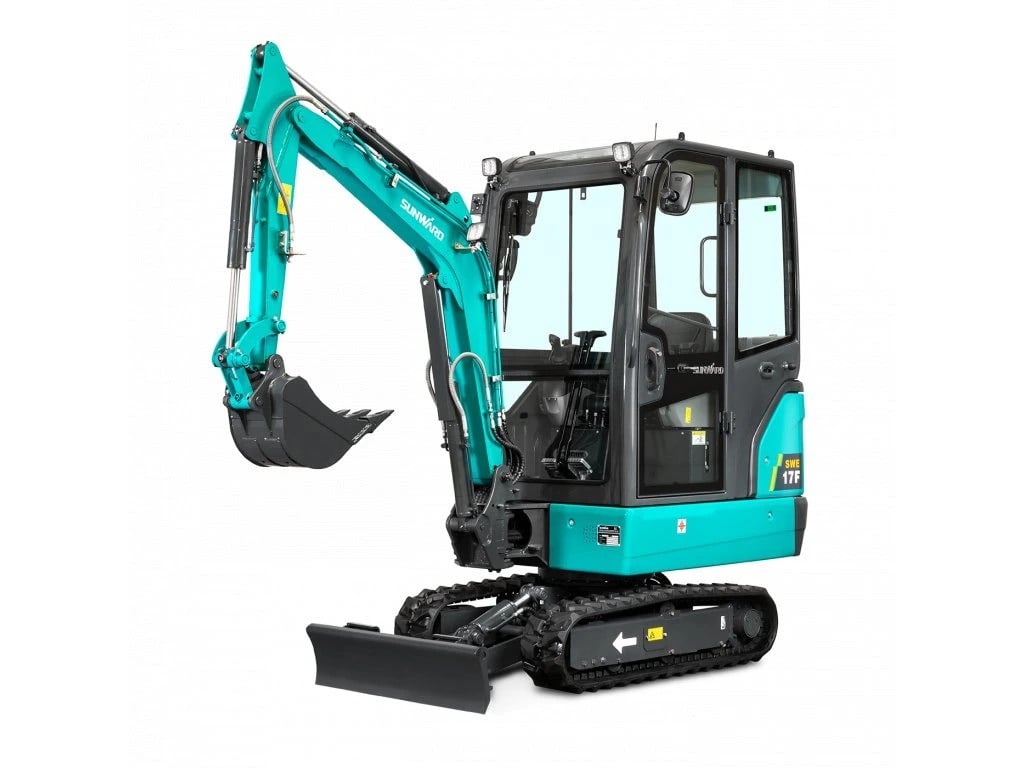

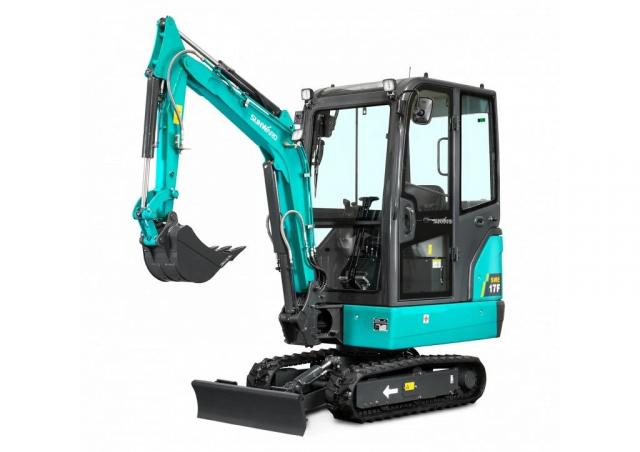

Sunward SWE 17 is a mini excavator manufactured since 2006, with a weight of 1.66 t. It has a transport length of 3.79 m, a transp…

Sunward SWE 17 is a mini excavator manufactured since 2006, with a weight of 1.66 t. It has a transport length of 3.79 m, a transport width of 0.98 m, and a transport height of 2.26 m. The bucket capacity is 0.04 m³. Special equipment includes air conditioning, rubber track, and track adjustment.

Mini Excavators Sunward SWE 17

Technical specs - SWE 17 Sunward

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.66 t
Transport length
3.79 m
Transport width
0.98 m
Transport height
2.26 m
Bucket capacity
0.04 m³
Driver protection
Kb
Max. Reach horizontal
2.8 m
Dredging depth
1.65 m
Tear-out force
13.1 kN
Model series
SWE
Engine manuf.
Yanmar
Engine type
3TNV70SSU
Engine power
10.2 kW
Displacement
0.854 l
Revolutions at max torque
2200 rpm

More technical details, like: bucket capacity min., bucket capacity max., bucket width, track width, standard tyres, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Sunward SWE 17 FAQ

When was the Sunward SWE 17 manufactured?

The Sunward SWE 17 was manufactured from 2006 to 2023.

How much does the Sunward SWE 17 mini excavator weigh?

The Sunward SWE 17 mini excavator weighs 1.66 tons.

What are the transport dimensions of the Sunward SWE 17 mini excavator?

The Sunward SWE 17 has a transport length of 3.79 meters, a transport width of 0.98 meters, and a transport height of 2.26 meters.

What are the dredging depth and maximum horizontal reach of the Sunward SWE 17 mini excavator?

The Sunward SWE 17 mini excavator has a dredging depth of 1.65 meters and a maximum horizontal reach of 2.8 meters.

What is the power rating of the Sunward SWE 17 mini excavator?

The available data does not provide the power rating for the Sunward SWE 17 mini excavator.

What is the bucket capacity of the Sunward SWE 17 mini excavator?

The bucket capacity of the Sunward SWE 17 mini excavator is 0.04 cubic meters.

What operator safety features does the Sunward SWE 17 have?

The Sunward SWE 17 has a cabin for driver protection.
