SE17SR Shantui excavator specs & dimensions (2023 - 2026)

Weight: 1.8t – Transport length: 3.57m – Transport width: 0.99m – Transport height: 2.4m – Bucket capacity: 0.04m³ – Track width: …

Weight: 1.8t – Transport length: 3.57m – Transport width: 0.99m – Transport height: 2.4m – Bucket capacity: 0.04m³ – Track width: 450mm

Check out detailed specifications, information and technical data for Shantui SE17SR excavator manufactured between 2023 - 2026. Get more in-depth insight with Shantui SE17SR digger specifications. See information, like: Weight: 1.8t – Transport length: 3.57m – Transport width: 0.99m – Transport height: 2.4m – Bucket capacity: 0.04m³ – Track width: 450mm and more.

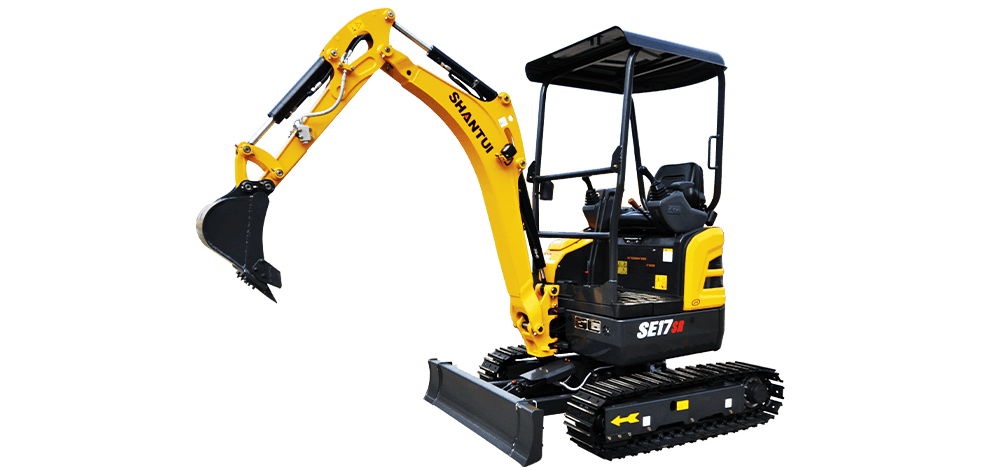

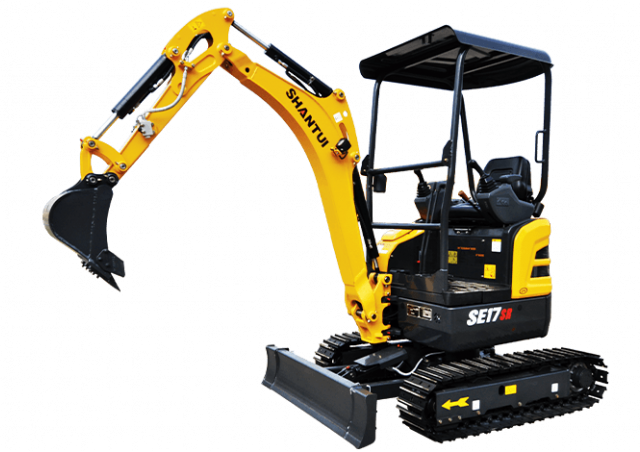

Mini Excavators Shantui SE17SR

Technical specs - SE17SR Shantui

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.8 t
Transport length
3.57 m
Transport width
0.99 m
Transport height
2.4 m
Bucket capacity
0.04 m³
Track width
450 mm
Driver protection
FD
Max. Reach horizontal
3.845 m
Dredging depth
2.27 m
Tear-out force
16 kN
Engine manuf.
Kubota
Engine type
D902
Engine power
11.8 kW
Displacement
0.898 l
No. of cylinders
3
Emission level
Tier 4 / Stage V

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, model series, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Shantui SE17SR FAQ

When was the Shantui SE17SR manufactured?

The Shantui SE17SR was first produced in 2023.

How much does the Shantui SE17SR weigh?

The Shantui SE17SR weighs 1.88 tons.

What are the transport dimensions of the Shantui SE17SR mini excavator?

The Shantui SE17SR has transport dimensions of 3.58 meters in length, 1.3 meters in width, and 2.41 meters in height.

What are the excavation performance specifications of the Shantui SE17SR mini excavator?

The Shantui SE17SR mini excavator has a dredging depth of 2.27 meters and a maximum horizontal reach of 3.535 meters.

What is the tear-out force of the Shantui SE17SR mini excavator?

The Shantui SE17SR mini excavator has a tear-out force of 16 kN. No power rating data is available for this model in the source.

What is the bucket capacity of the Shantui SE17SR mini excavator?

The Shantui SE17SR mini excavator has a bucket capacity of 0.04 cubic meters.
