ER620H SDLG excavator specs & dimensions (2026 - 2026)

Weight: 1.95t – Transport length: 3.62m – Transport width: 0.99m – Transport height: 2.426m – Bucket capacity: 0.04m³ – Track widt…

Weight: 1.95t – Transport length: 3.62m – Transport width: 0.99m – Transport height: 2.426m – Bucket capacity: 0.04m³ – Track width: 230mm

Check out detailed specifications, information and technical data for SDLG ER620H excavator manufactured between 2026 - 2026. Get more in-depth insight with SDLG ER620H digger specifications. See information, like: Weight: 1.95t – Transport length: 3.62m – Transport width: 0.99m – Transport height: 2.426m – Bucket capacity: 0.04m³ – Track width: 230mm and more.

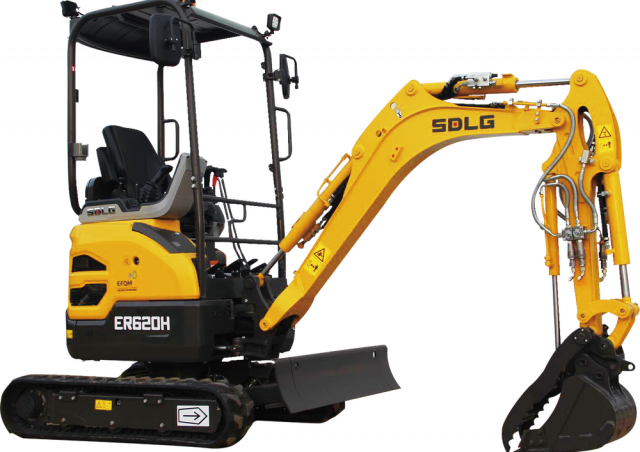

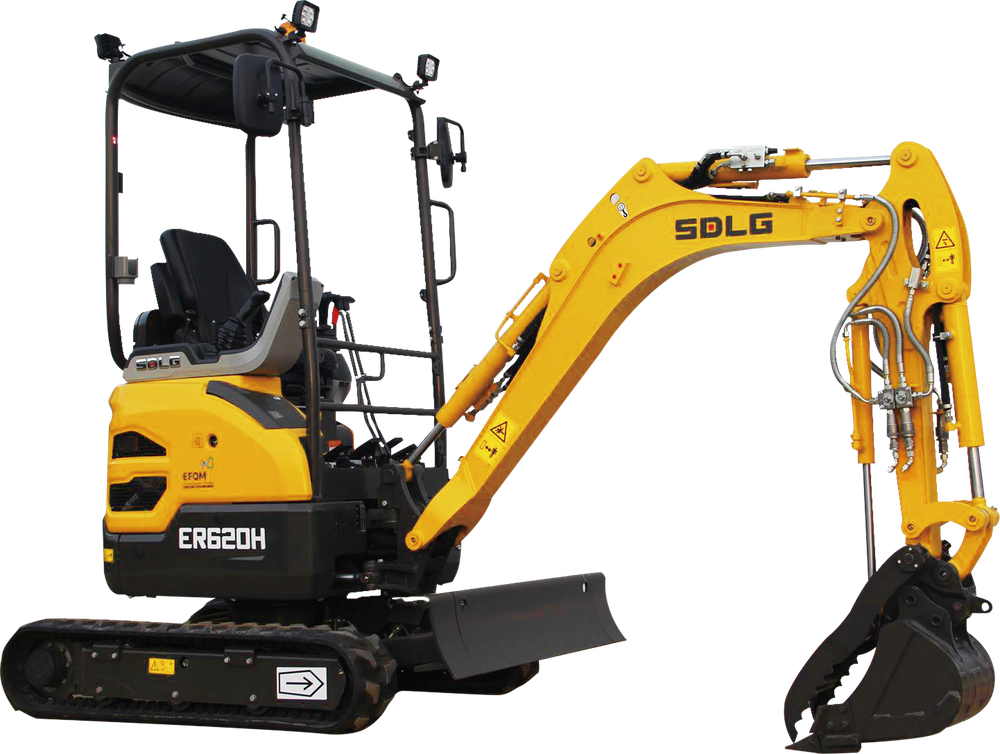

Mini Excavators SDLG ER620H

Technical specs - ER620H SDLG

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.95 t
Transport length
3.62 m
Transport width
0.99 m
Transport height
2.426 m
Bucket capacity
0.04 m³
Track width
230 mm
Max. Reach horizontal
3.885 m
Dredging depth
2.33 m
Tear-out force
16.5 kN
Model series
H
Engine manuf.
Kubota
Engine type
D902
Engine power
11.8 kW
Displacement
0.898 l
Emission level
Stage V

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, driver protection, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No
