ER620H SDLG excavator specs & dimensions (2026 - 2026)

Weight: 1.9t – Transport length: 3.608m – Transport width: 1.24m – Transport height: 2.585m – Bucket capacity: 0.04m³ – Bucket cap…

Weight: 1.9t – Transport length: 3.608m – Transport width: 1.24m – Transport height: 2.585m – Bucket capacity: 0.04m³ – Bucket capacity min.: 0.04m³

Check out detailed specifications, information and technical data for SDLG ER620H excavator manufactured between 2026 - 2026. Get more in-depth insight with SDLG ER620H digger specifications. See information, like: Weight: 1.9t – Transport length: 3.608m – Transport width: 1.24m – Transport height: 2.585m – Bucket capacity: 0.04m³ – Bucket capacity min.: 0.04m³ and more.

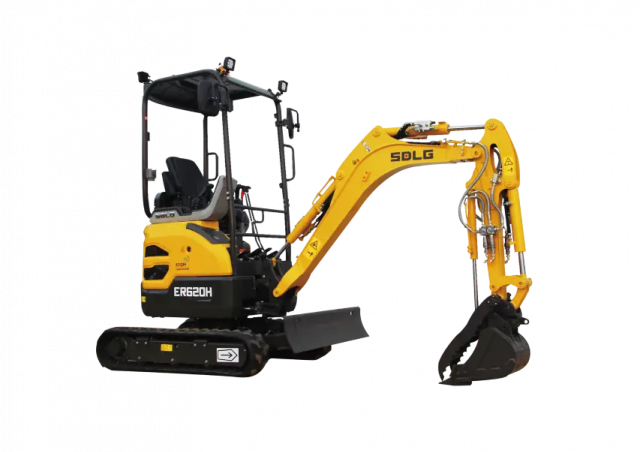

Mini Excavators SDLG ER620H

Technical specs - ER620H SDLG

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.9 t
Transport length
3.608 m
Transport width
1.24 m
Transport height
2.585 m
Bucket capacity
0.04 m³
Bucket capacity min.
0.04 m³
Bucket capacity max.
0.41 m³
Max. Reach horizontal
11.29 m
Dredging depth
7.03 m
Tear-out force
276.5 kN
Model series
H
Engine manuf.
Yanmar
Engine type
3TNV80F-SPLG
Engine power
11.6 kW
Displacement
1.3 l
Revolutions at max torque
1800 rpm
Max. torque
67.4 Nm
No. of cylinders
3
Cylinder bore x stroke
80×84 mm
Emission level
IV

More technical details, like: bucket width, track width, standard tyres, driver protection, dimension lxwxh are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No
