TC 48 Schaeff excavator specs & dimensions (2017 - 2020)

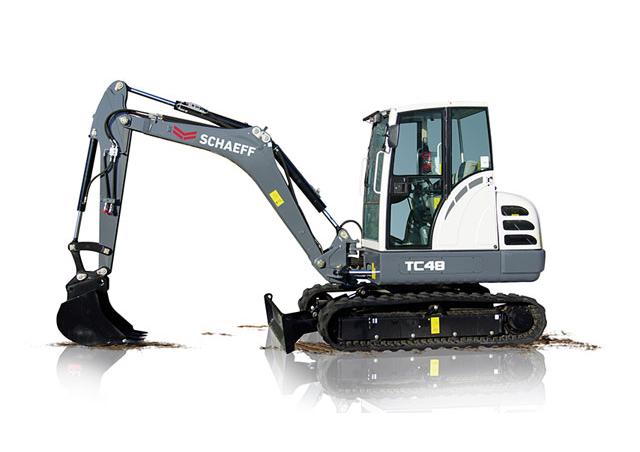

Schaeff TC 48 is a Mini Excavator manufactured from 2017 to 2020, with a weight of 4.64 t. It features a track width of 400 mm, a …

Schaeff TC 48 is a Mini Excavator manufactured from 2017 to 2020, with a weight of 4.64 t. It features a track width of 400 mm, a transport length of 5.54 m, a transport width of 1.85 m, and a transport height of 2.61 m. The machine has a tear-out force of 24.4 kN, a dredging depth of 3.7 m, and a maximum horizontal reach of 6.02 m. The bucket width is 0.4 m, with a bucket capacity ranging from 0.068 m³ to 0.232 m³. Special equipment includes a blade, quick hitch mechanism, and rubber tracks.

TC 48

Years of manufacture: 2017—2020

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - TC 48 Schaeff

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 4.64 t

Transport length: 5.54 m

Transport width: 1.85 m

Transport height: 2.61 m

Bucket capacity min.: 0.068 m³

Bucket capacity max.: 0.232 m³

Bucket width: 0.4 m

Track width: 400 mm

Driver protection: FD

Max. Reach horizontal: 6.02 m

Dredging depth: 3.7 m

Tear-out force: 24.4 kN

Engine manuf.: Mitsubishi

Engine type: S4Q2

Engine power: 29 kW

Displacement: 2.19 l

Revolutions at max torque: 2200 rpm

Max. torque: 134/1800 Nm

No. of cylinders: 4

Emission level: Tier 4 i

More technical details, like: bucket capacity, standard tyres, model series, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: Yes
Blade: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: Yes

Download datasheets (PDF)

Schaeff TC 48 FAQ

When was the Schaeff TC 48 manufactured?

The Schaeff TC 48 was manufactured from 2017 to 2020.

How much does the Schaeff TC 48 weigh?

The Schaeff TC 48 weighs 4.64 tons.

What are the transport dimensions of the Schaeff TC 48 mini excavator?

The Schaeff TC 48 has transport dimensions of 5.54 meters in length, 1.85 meters in width, and 2.61 meters in height.

What is the track width of the Schaeff TC 48 mini excavator?

The Schaeff TC 48 mini excavator has a track width of 400 mm.

What are the excavation performance specifications of the Schaeff TC 48 mini excavator?

The Schaeff TC 48 mini excavator has a dredging depth of 3.7 meters and a maximum horizontal reach of 6.02 meters.

What is the tear-out force of the Schaeff TC 48 mini excavator?

The Schaeff TC 48 mini excavator has a tear-out force of 24.4 kN.

What are the bucket specifications of the Schaeff TC 48 mini excavator?

The Schaeff TC 48 mini excavator has a bucket width of 0.4 meters, with a bucket capacity ranging from 0.07 to 0.23 cubic meters.

What operator safety and support features does the Schaeff TC 48 have?

The Schaeff TC 48 provides operator protection with a canopy.

How much is a Schaeff TC 48 Mini excavator (2017u20132020) worth?

The residual value of the Schaeff TC 48 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Schaeff TC 48 overview

Dimensions and weight

Bucket hinge height			Load radius from center of ring gear	5.0 m
Dipperstick 1650 mm	2.5 m	3.0 m	3.5 m	4.0 m	4.5 m
End	Side	End	Side	End	Side	End	Side	End	Side	End	Side
3.0 m S	-	-	-	-	1.26	0.95	1.26	0.75	1.20	0.62	-	-
T	-	-	-	-	0.80	0.92	0.59	0.73	0.51	0.59	-	-
2.0 m S	1.90	1.78	1.71	1.14	1.51	0.92	1.36	0.71	1.21	0.62	1.08	0.51
T	0.94	1.47	0.91	1.11	0.68	0.87	0.62	0.68	0.56	0.59	0.45	0.50
1.0 m S	3.07	1.35	2.27	1.08	1.80	0.86	1.50	0.71	1.27	0.58	1.10	0.52
T	1.28	1.32	0.96	1.04	0.72	0.83	0.63	0.68	0.50	0.56	0.46	0.51
0 m S	2.75	1.31	2.14	0.98	1.73	0.80	1.45	0.67	1.24	0.56	0.94	0.51
T	1.05	1.25	0.82	0.95	0.64	0.77	0.59	0.65	0.54	0.54	0.42	0.50
-1.0 m S	2.14	1.31	1.87	1.04	1.51	0.80	1.21	0.65	1.01	0.57	-	-
T	1.02	1.28	0.75	0.98	0.60	0.78	0.52	0.64	0.45	0.54	-	-

Independent of drive train	sensitive control via separate hand lever."
Narrow version	Wide version
Width x height 1860 x 400 mm	1990 x 400 mm
Dozer cut below ground 310 mm	295 mm
Dozer cut above ground 395 mm	460 mm
Slope angle 34°	36°

Transport weight (rubber crawlers	without bucket)"	EQUIPMENT 4645 kg
Operating weight acc. to ISO 6016 (rubber crawlers	QAS	bucket	incl. operator)"	4870 kg
With steel crawlers	+270 kg
Total length (travel position)	3650 mm
Total length (trailer transport position)	5540 mm
Total height (travel position)	3895 mm
Total width of undercarriage (narrow/wide version)	1860 / 1990 mm
Total width of uppercarriage	1600 mm
Uppercarriage tailswing	1470 mm
Uppercarriage frontswing	1735 mm
Working envelope 180° / 360°	3205 / 3470 mm
Ground clearance	360 mm
Bucket digging force (ISO 6015)	31	200 N"
Stick digging force (ISO 6015)	27	000 N"
Ground pressure (rubber crawlers)	0.26 daN/cm2
HYDRAULIC SYSTEM
Variable pump capacity	max. 140 l/min
Working pressure	250 bar

Tread width (narrow/wide version)	1450 / 1590 mm
Total length (sprocket - idler)	1920 mm
Total length (undercarriage)	2430 mm

Tables

Nominal voltage	12 V
Battery	12 V / 71 Ah
Generator	12 V / 50 A
Starter	12 V / 2.0 kW

2 speed ranges:
Travel speed	forward and reverse"	0-3.2 / 4.8 kph
Gradeability	max. 60 %
Drawbar pull 1st speed range	4400 daN

Displacement	2190 cm3
Net power rating at 2200 rpm (ISO 9249)	29.0 kW (39.4 hp)
Torque	134 Nm at 1800 rpm
Cooling system	Water

Parallel lateral adjustment of boom arrangement at total	1220 mm
Angle of articulation / lateral adjustment left	75° / 515 mm
Angle of articulation / lateral adjustment right	55° / 705 mm

Bucket, QAS	300 mm wide, capacity 68 l"
Bucket, QAS	400 mm wide, capacity 99 l"
Bucket, QAS	500 mm wide, capacity 131 l"
Bucket, QAS	600 mm wide, capacity 164 l"
Bucket, QAS	700 mm wide, capacity 198 l"
Bucket, QAS	800 mm wide, capacity 232 l"
Ditch-cleaning bucket, QAS	1300 mm wide, capacity 191 l"
Swing bucket, QAS	1300 mm wide, capacity 191 l"

Clamshell grab GL 1250, grab swing brake	set of shells 250 mm wide, capacity 45 l"
Clamshell grab GL 1350, grab swing brake	set of shells 350 mm wide, capacity 65 l"
Clamshell grab GL 1450, grab swing brake	set of shells 450 mm wide, capacity 85 l"
Clamshell grab GL 1600, grab swing brake	set of shells 600 mm wide, capacity 115 l"
