TC 37-2 Schaeff excavator specs & dimensions (2017 - 2020)

Schaeff TC 37-2 is a Mini Excavator manufactured from 2017 to 2020, with a weight of 3.47 t. It features a track width of 300 mm, …

Schaeff TC 37-2 is a Mini Excavator manufactured from 2017 to 2020, with a weight of 3.47 t. It features a track width of 300 mm, a transport length of 4.84 m, a transport width of 1.76 m, and a transport height of 2.5 m. The machine has a tear-out force of 15.7 kN, a dredging depth of 3.25 m, and a maximum horizontal reach of 5.56 m. The bucket width is 0.3 m, with a bucket capacity ranging from 0.054 m³ to 0.191 m³. Special equipment includes a blade, a mechanical quick hitch, and rubber tracks.

TC 37-2

Years of manufacture: 2017—2020

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - TC 37-2 Schaeff

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 3.47 t

Transport length: 4.84 m

Transport width: 1.76 m

Transport height: 2.5 m

Bucket capacity min.: 0.054 m³

Bucket capacity max.: 0.191 m³

Bucket width: 0.3 m

Track width: 300 mm

Driver protection: FD

Max. Reach horizontal: 5.56 m

Dredging depth: 3.25 m

Tear-out force: 15.7 kN

Model series: 2

Engine manuf.: Kubota

Engine type: D1803

Engine power: 22.8 kW

Displacement: 1.826 l

Revolutions at max torque: 2200 rpm

Max. torque: 114/1400 Nm

No. of cylinders: 3

Cylinder bore x stroke: 87x102 mm

Emission level: EU IIIA

More technical details, like: bucket capacity, standard tyres, dimension lxwxh are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: Yes
Blade: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: Yes

Download datasheets (PDF)

Schaeff TC 37-2 FAQ

When was the Schaeff TC 37-2 manufactured?

The Schaeff TC 37-2 was manufactured from 2017 to 2020.

How much does the Schaeff TC 37-2 weigh?

The Schaeff TC 37-2 weighs 3.47 tons.

What are the transport dimensions of the Schaeff TC 37-2 mini excavator?

The Schaeff TC 37-2 has a transport length of 4.84 meters, a transport width of 1.76 meters, and a transport height of 2.5 meters.

What is the track width of the Schaeff TC 37-2 mini excavator?

The Schaeff TC 37-2 mini excavator has a track width of 300 mm.

What are the dredging depth and maximum horizontal reach of the Schaeff TC 37-2 mini excavator?

The Schaeff TC 37-2 mini excavator has a dredging depth of 3.25 meters and a maximum horizontal reach of 5.56 meters.

What is the tear-out force of the Schaeff TC 37-2 mini excavator?

The Schaeff TC 37-2 mini excavator has a tear-out force of 15.7 kN.

What are the bucket specifications of the Schaeff TC 37-2 mini excavator?

The Schaeff TC 37-2 has a bucket width of 0.3 meters, with a capacity ranging from 0.05 to 0.19 cubic meters.

What operator safety and support features does the Schaeff TC 37-2 have?

The Schaeff TC 37-2 is equipped with a canopy for driver protection.

How much is a Schaeff TC 37-2 Mini excavator (2017u20132020) worth?

The residual value of the Schaeff TC 37-2 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Schaeff TC 37-2 overview

Schaeff TC 37-2 features overview

Very simple: the ability to reliably do more.
With these new models, you have mini-excavate in XL format: High digging forces, functional design, more space. Schaeff offers two models in the 3.5 ton segment. They have the choice between a machine width of only 1500 mm which enables a wide range of possible transport options or a minimum rear overhang of just 60 mm. Both equipped with high performance genes.
TRADITION MEETS PROGRESS
The Schaeff philosophy of conventional construction, articulated-matik and top mounted cylinders have been retained. A completely new machine has been built around these elements, from high performance brand components to the new driver's cab.

Machine Engineering Made in Germany, this is our claim: The XL mini excavators are completely designed and built at our factory in Crailsheim, Germany.

The new XL cab (ROPS/TOPS certified) offers room and comfort like the "big ones". For a quick start, the console can be raised for more space to get into the cabin. Footwell provides enough space even in shoe sizes 15 and larger. In general, the workplace can be individually aligned to the size of the driver. Generous glass surfaces allow optimal visibility of attachment tools and working climate. Quick change of Cab to Canopy.

Engine / Driveline and transmission

Comfortable and spacious ROPS / TOPS certified cab on common modular operator platform provides good accessibility and visibility (A/C as option) 4.3" display for machine status and aux.Flowtuning Wide opening, two stage side hood with good visibility and accessability of daily service points Short Tail Swing with just 60 mm overhang Large format fuel tank for longer uptime Bosch Rexroth LUDV (Load Independent Flow Sharing) Hydraulics for strong digging performance and efficiency Working group with top mounted boom cylinder and hose routing in interior boom for better protection
Downtimes and service costs are reduced overall.

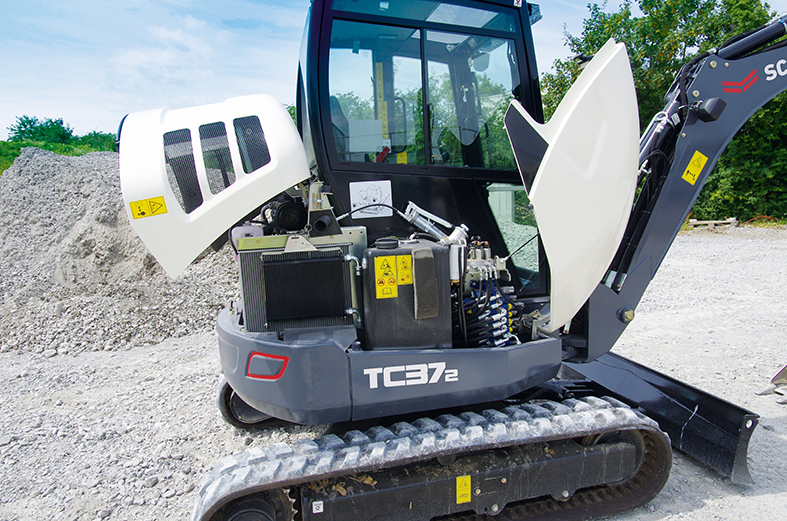

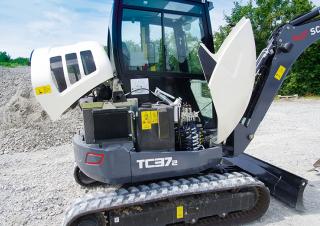

In order to save time during daily service, easy access and combined service points are key elements. The two-piece engine hood opens up far upward so the daily inspection points can be accessed directly or monitored via gauge glasses or already visible from outside on most models. Direct refueling made of canisters is easily possible at work height. The fuel tank has an ample capacity of 68, All locks (including ignition) can be operated with just one central key.
PAINTING SERVICE – STATE YOUR COLORS
So one thing matches the other: we're painting with exactly your corporate colors.

Hydraulics

ENGINE AND HYDRAULIC SYSTEM
Compared to current competitor models, the mini excavator offers an average of 20 % more working capacity when digging trenches quickly for example. LUDV (Load Independent Flow Sharing) hydraulics are offered by only a few models in this class. Even for extreme terrain, the bucket dig powerfully and is completely filled up.
Additional control circuit up to end of dipperstick
Cab/canopy mounting work lights, LUDV (Load Independent Flow Sharing) hydraulics, weight-dependent adjustable comfort seat, seat belt, Hydraulic pilot control with adjustable hand rests, cab heater with disc defroster, front windscreen opening system with gas dampening, wiring for speakers and antenna, radio, battery main switch, 12 V connection socket, side mirrors, accelerator pedals
GOOD OPTIONS OPTIMIZE YOUR MINI EXCAVATOR FOR USE
Crane loader cable harness, auto idle, weather resistant roof, float position dozer blade, Pre-prepared installation for radio plug module (radio power socket, antenna, 2 speakers), DPF (diesel particle filter) only TC 35-2, anti-theft system, switches and wiring for rotating beacon, auxiliary work lights and slewing light, load hook, load retention valve, biodegradable hydraulic oil, FOPS and front guard, fire extinguisher, travel motion alarm, air conditioning, electric refuelling pump, control circuit, hydraulic quick landing system, 2nd additional control circuit, electrical proportional, comfort seats, overload warning device, large range of buckets and quick hitch systems, special color options, fire it marking other optional equipment available on request.

Tyres / Tracks

Rubber track 300 mm with 4 track rollers down and 1 support roller up. Two-stage automatic shifting of travel drive (auto 2-speed).
ERGONOMICS
Particular attention has been paid to ergonomics on all models; for example, the blade lever offers an integrated travel speed controller (independent of which auto 2-speed is automatically controlled). This feature makes leveling and digging much easier.
Auto 2-Speed
ubber track 300 mm 4 Track rollers bottom, 1 Support roller top

Dimensions and weight

Width rubber tracks	300 mm
Total length (undercarriage)	2090 mm
Number of rollers per side	4 at the bottom	1 on top"
Track width	1450 mm
Gradeability	max. 60%
Drawbar pull 1st / 2nd speed range	3560 / 2110 daN

rubber tracks	including driver	full fuel tank"	3470 kg
Transport weight: Cab	tank half full	with quick-attach system	w/out bucket"	3340 kg
Transport weight: Canopy	tank half full	with quick-attach system	w/out bucket"	3260 kg
Total length (travel position)	3195 mm
Total length (trailer transport position)	4843 mm
Total height (top of canopy/cab)	2480 / 2500 mm
Total height (travel position)	3420 mm
Total width (undercarriage)	1750 mm
Total width of uppercarriage	1500 mm
Uppercarriage tail swing	935 mm
Uppercarriage front swing	1955 mm
Working envelope	bucket heaped (also with 600 mm bucket): 180°"	2890 mm
360°	3900 mm
Ground clearance	200 mm
Swing clearance	550 mm
Reach max.**	5630 / 5810* mm
Digging depth max.**	3255 /3455* mm
Loading height approx.**	3060 / 3165* mm
Highest reachable height**	4540 / 4645* mm
Bucket rotation angle	187°
Bucket digging force acc. to ISO 6015	25	700 N"
Stick digging force acc. to ISO 6015	15	700 N"
Specific ground pressure:
Excavator cpl. with rubber crawlers	0.29 daN/cm2
* with dipperstick 1800 mm (optional)
** Dimensions apply to machine standing on level ground	but can be increased by tilting the machine using the blade."

Bucket hinge height	Load radius from center of ring gear
Dipperstick 1600 mm		2.5 m	3.0 m	3.5 m	4.0 m	4.5 m

2.0 m		–	–	–	–	0.96	0.57	0.91	0.45	0.86	0.38
	–	–	–	–	0.70	0.56	0.56	0.45	0.44	0.37
1.0 m		2.11	0.88	1.54	0.67	1.23	0.52	1.03	0.42	0.87	0.35
	1.13	0.87	0.84	0.66	0.65	0.51	0.51	0.41	0.43	0.34
0.0 m		2.33	0.80	1.67	0.61	1.29	0.49	1.05	0.40	0.84	0.34
	1.15	0.79	0.76	0.60	0.60	0.48	0.46	0.39	0.40	0.33

Bucket hinge height	Load radius from center of ring gear
Dipperstick 1800 mm		2.5 m	3.0 m	3.5 m	4.0 m	4.5 m

2.0 m		–	–	–	–	0.89	0.60	0.85	0.46	0.81	0.38
	–	–	–	–	0.50	0.58	0.55	0.45	0.44	0.37
1.0 m		1.94	0.92	1.41	0.69	1.16	0.52	0.99	0.44	0.85	0.35
	1.13	0.89	0.83	0.67	0.65	0.51	0.51	0.42	0.42	0.35
0.0 m		2.26	0.81	1.61	0.63	1.27	0.51	1.03	0.42	0.84	0.35
	1.03	0.80	0.76	0.62	0.60	0.50	0.49	0.41	0.40	0.34

Other features

ADDITIONAL CONTROL CIRCUIT WITH SCHAEFF FINGERTIP CONTROL
The first electrically proportional auxiliary control circuit comes as standard for precise operation of attachment tools. With the Schaeff Fingertip Control, actuation of hydraulic functions with a thumb wheel on the joystick is extremely easy. This allows the operator to regulate oil flow precisely from ‘min' to ‘max‘, an advantage when controlling attachments such as clamshell buckets or rocking shovels. Also available for a second control circuit on left joystick.

Safety

Canopy version
The machines are also available in canopy versions. With safety equipment such as the lockable storage compartment.

Tables

Lateral parallel adjustment of boom arrangement at full dig depth
Angle of articulation / lateral adjustment left	57° / 710 mm
Angle of articulation / lateral adjustment right	60° / 870 mm

Pump capacity (pressure-controlled)
up to approx. 100 bar	62 lpm
@ 210 bar	20 lpm
Max. working pressure	210 bar
Diagram shows P/Q provided on couplers:

Independent of drive train	sensitive control via separate hand lever"
Width x height	1750 x 360 mm
Dozer cut below ground	300 mm
Dozer lift above ground	430 mm
Slope angle	35°
SWING SYSTEM
Internally toothed ring gear
Swing speed	0–9 rpm
SWING BRAKE

Type	3-cylinder diesel engine
Combustion	4-stroke cycle with direct fuel injection (DI)
Bore x stroke	87 x 102 mm
Displacement	1826 cm3
Power rating acc. to ISO 14396 @ 2200 rpm	22.8 kW (31.0 HP)
Torque max. @ 1400 rpm	114 Nm
Air filter with safety cartridge and maintenance switch
Cold-starting aid	Glow plugs
ELECTRICAL SYSTEM
Nominal voltage	12 V
Battery	12 V / 71 Ah
Generator	12 V / 40 A
Starter	2.0 kW
Lighting system:	1 work light front left on the cab / canopy (auxiliary headlamps optional)

Ripper tooth / QAS (1 tooth)	Cutting unit
Hydraulic hammer	Quick-change adapter for hydraulic hammer
Augers	Bolt-on load hook for bucket rod
Load hook integrated in quick-attach system
Further work attachments available on request

Bucket, QAS	300 mm wide, capacity 54 l, 67 kg"
Bucket, QAS	400 mm wide, capacity 78 l, 78 kg"
Bucket, QAS	500 mm wide, capacity 103 l, 89 kg"
Bucket, QAS	600 mm wide, capacity 129 l, 98 kg"
Bucket, QAS	700 mm wide, capacity 155 l, 109 kg"
Ditch-cleaning bucket, QAS	1000 mm wide, capacity 145 l, 135 kg"
Ditch-cleaning bucket, QAS	1300 mm wide, capacity 191 l, 164 kg"
Swing bucket, QAS	1000 mm wide, capacity 145 l, 194 kg"
Swing bucket, QAS	1300 mm wide, capacity 191 l, 228 kg"
