TC 25 Z Schaeff excavator specs & dimensions (2017 - 2017)

Schaeff TC 25 Z is a Mini Excavator manufactured from 2017 to 2017, with a weight of 2.67 tons. It features a track width of 280 m…

Schaeff TC 25 Z is a Mini Excavator manufactured from 2017 to 2017, with a weight of 2.67 tons. It features a track width of 280 mm, a transport length of 4.21 meters, a transport width of 1.55 meters, and a transport height of 2.52 meters. The machine has a tear-out force of 14.5 kN, a dredging depth of 2.73 meters, and a maximum horizontal reach of 4.62 meters. The bucket width is 0.7 meters with a capacity of 0.1 cubic meters. Special equipment includes a blade, quick hitch mechanism, and rubber tracks.

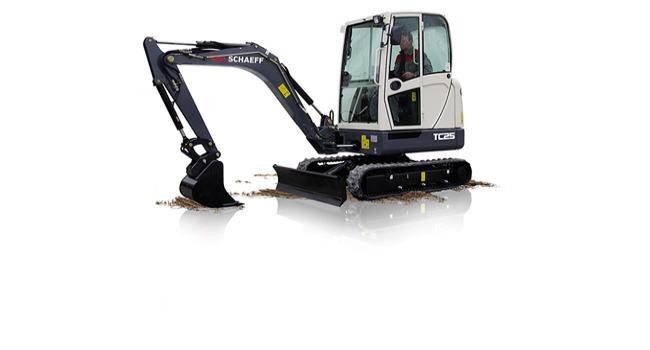

Mini Excavators Schaeff TC 25 Z

Technical specs - TC 25 Z Schaeff

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.67 t
Transport length
4.21 m
Transport width
1.55 m
Transport height
2.52 m
Bucket capacity
0.1 m³
Bucket width
0.7 m
Track width
280 mm
Driver protection
FD
Max. Reach horizontal
4.62 m
Dredging depth
2.73 m
Tear-out force
14.5 kN
Model series
Z
Engine manuf.
Yanmar
Engine type
3TNV76
Engine power
15.5 kW
Displacement
1.116 l
Revolutions at max torque
2200 rpm
No. of cylinders
3
Emission level
EU IIIA

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
Yes

Download datasheets (PDF)

Schaeff TC 25 Z FAQ

When was the Schaeff TC 25 Z manufactured?

The Schaeff TC 25 Z was manufactured in 2017.

How much does the Schaeff TC 25 Z weigh?

The Schaeff TC 25 Z weighs 2.67 tons.

What are the transport dimensions of the Schaeff TC 25 Z mini excavator?

The Schaeff TC 25 Z has a transport length of 4.21 meters, a transport width of 1.55 meters, and a transport height of 2.52 meters.

What is the track width of the Schaeff TC 25 Z mini excavator?

The Schaeff TC 25 Z mini excavator has a track width of 280 mm.

What are the excavation performance specifications of the Schaeff TC 25 Z mini excavator?

The Schaeff TC 25 Z has a dredging depth of 2.73 meters and a maximum horizontal reach of 4.62 meters.

What is the tear-out force of the Schaeff TC 25 Z mini excavator?

The Schaeff TC 25 Z mini excavator has a tear-out force of 14.5 kN.

What are the specifications of the bucket on the Schaeff TC 25 Z mini excavator?

The Schaeff TC 25 Z mini excavator has a bucket with a capacity of 0.1 cubic meters and a width of 0.7 meters.

What operator safety and support features does the Schaeff TC 25 Z have?

The Schaeff TC 25 Z is equipped with a canopy for driver protection.

How much is a Schaeff TC 25 Z Mini excavator (2017u20132017) worth?

The residual value of the Schaeff TC 25 Z depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
