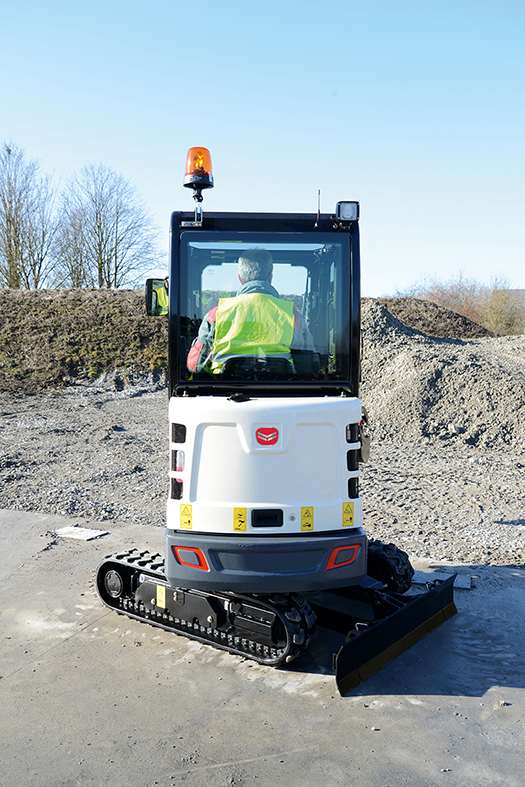

Technical specs - TC 22-2 Schaeff

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 2.01 t

Transport length: 4.13 m

Transport width: 0.99 m

Transport height: 2.29 m

Bucket capacity min.: 0.026 m³

Bucket width: 0.3 m

Track width: 230 mm

Driver protection: KbR

Max. Reach horizontal: 4.17 m

Dredging depth: 2.54 m

Tear-out force: 11 kN

Model series: 2

Engine manuf.: Kubota

Engine type: D902

Engine power: 12 kW

Displacement: 0.898 l

Revolutions at max torque: 2300 rpm

Max. torque: 52.1/1800 Nm

No. of cylinders: 3

Cylinder bore x stroke: 72x73.6 mm

Emission level: Tier 4 f

More technical details, like: bucket capacity, bucket capacity max., standard tyres, dimension lxwxh are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: Yes
Rubber track: Yes
Blade: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: Yes

Download datasheets (PDF)

Schaeff TC 22-2 FAQ

When was the Schaeff TC 22-2 manufactured?

The Schaeff TC 22-2 was manufactured from 2017 to 2020.

How much does the Schaeff TC 22-2 weigh?

The Schaeff TC 22-2 weighs 2.01 tons.

What are the transport dimensions of the Schaeff TC 22-2 mini excavator?

The Schaeff TC 22-2 has a transport length of 4.13 meters, a transport width of 0.99 meters, and a transport height of 2.29 meters.

What is the track width of the Schaeff TC 22-2 mini excavator?

The Schaeff TC 22-2 mini excavator has a track width of 230 mm.

What are the excavation performance specifications of the Schaeff TC 22-2 mini excavator?

The Schaeff TC 22-2 mini excavator has a dredging depth of 2.54 meters and a maximum horizontal reach of 4.17 meters.

What is the tear-out force of the Schaeff TC 22-2 mini excavator?

The Schaeff TC 22-2 mini excavator has a tear-out force of 11 kN.

What are the bucket specifications of the Schaeff TC 22-2 mini excavator?

The Schaeff TC 22-2 mini excavator has a minimum bucket capacity of 0.03 cubic meters and a bucket width of 0.3 meters.

What operator safety features does the Schaeff TC 22-2 have?

The Schaeff TC 22-2 is equipped with a cabin that includes ROPS for driver protection.

How much is a Schaeff TC 22-2 Mini excavator (2017u20132020) worth?

The residual value of the Schaeff TC 22-2 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

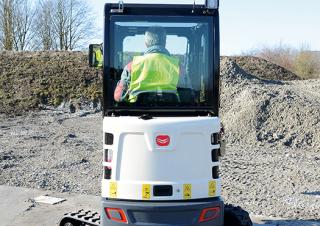

Schaeff TC 22-2 overview

Schaeff TC 22-2 features overview

Very simple: the ability to reliably do more.
With these new models mini-excavate you in XL format: High digging forces, functional design, more space. Schaeff offers four models in the 1.5 2.0 tonne segment. From the rental version to high end configuration for demanding job site use. All equipped with high performance genes.
TRADITION MEETS PROGRESS
The Schaeff philosophy of conventional construction, articulated-matik and top mounted cylinders have been retained. A completely new machine has been built around these elements, from high performance brand components to the new driver's cab.

The new XL cab (ROPS/TOPS certified) offers room and comfort like the big ones. For a quick start, the console can be raised for more space to get into the cabin. Footwell provides enough space even on shoe sizes 15 and larger. Generally speaking, the workplace can be individually adjusted to the size of the driver. The large glass area allows optimum visibility over the attachment tools and work environment. For optimal communication on the job site, the right window can be opened up to the ground level.
ERGONOMICS
Special attention has been paid to ergonomics on all models; for example, the blade lever provides an integrated travel speed controller. This feature makes leveling and digging much easier.

Engine / Driveline and transmission

Brandit® – the service for your logo on THE MACHINE.
At Schaeff your company occupies an outstanding position. Our engine hoods offer plenty of room for your logo and therefore your market presence. As desired, with our support.

Hydraulics

Working group with top mounted boom cylinder and hose routing in the interior boom for better protection High flow pump and fingertip controls (standard) allow easy and precise use of a variety of attachments Comfortable and spacious ROPS / TOPS certified cab on common modular operator platform provides good accessibility and visibility Bosch Rexroth LUDV (Load Independent Flow Sharing) Hydraulics for strong digging performance and efficiency Schaeff fingertip Controls (standard) Conventional design for outstanding stability Wide-opening engine hood offers good visibility and accessibility of daily service points Additional weight for improved stability and work performance Hydraulic variable undercarriage standard Automatic swing brake for transport standard (transport safety
ENGINE AND HYDRAULIC SYSTEM
Compared to current competitor models, the mini excavator offers an average of 20 % more working capacity when digging trenches quickly for example. LUDV (Load Independent Flow Sharing) hydraulics are offered by only a few models in this class. Even for extreme terrain, the bucket dig powerfully and is completely filled up.

Tyres / Tracks

The undercarriage is adjustable from 990 to 1340 mm. This guarantees full mobility on jobsites with narrow passages/gates, and offers exceptional stability in difficult terrain
PAINTING SERVICE – SHOW YOUR COLORS
So one thing matches the other: we're painting with exactly your corporate colors.

Dimensions and weight

Transport weight: Cab	tank half full	with quick-attach system	w/out bucket"	1885 kg
Transport weight: Canopy	tank half full	with quick-attach system	w/out bucket"	1805 kg
Total length (travel position)	2853 mm
Total length (trailer transport position)	4133 mm
Total height (top of canopy / cab)	2277 / 2294 mm
Total height (travel position)	2673 mm
Total width (undercarriage)	990–1340 mm
Total width of uppercarriage	980 mm
Uppercarriage tail swing	1140 mm
Uppercarriage front swing	1440 mm
Working envelope	bucket heaped (also with 600 mm bucket): 180°"	2580 mm
360°	2883 mm
Swing clearance	446 mm
Reach max.**	4171 / 4368* mm
Digging depth max.**	2541 /2741* mm
Loading height approx.**	2593 / 2734* mm
Highest reachable height**	3642 / 3772* mm
Bucket rotation angle	191°
Bucket digging force acc. to ISO 6015	18	850 N"
Stick digging force acc. to ISO 6015	11	000 / 9720* N"
Specific ground pressure:
Excavator cpl.	0.30 daN/cm2
* with dipperstick 1150 mm (optional)
** Dimensions apply to machine standing on level ground	but can be increased by tilting the machine using the blade."

Bucket hinge height		Load radius from center of ring gear
Dipperstick 950 mm		1.5 m	2.0 m	2.5 m	3.0 m	3.5 m
		UR	UE	UR	UE	UR	UE	UR	UE	UR	UE	UR	UE	UR	UE	UR	UE	UR	UE	UR	UE

2.0 m		–	–	–	–	–	–	–	–	0.45	0.45	0.36	0.36	0.37	0.37	0.29	0.37	–	–	–	–
	–	–	–	–	–	–	–	–	0.45	0.45	0.36	0.36	0.37	0.37	0.27	0.37	–	–	–	–
1.0 m		–	–	–	–	0.79	0.79	0.47	0.75	0.54	0.54	0.35	0.53	0.43	0.43	0.27	0.42	0.35	0.35	0.21	033
	–	–	–	–	0.75	0.75	0.45	0.74	0.54	0.54	0.34	0.53	0.43	0.43	0.26	0.42	0.28	0.28	0.20	0.33
0.0 m		–	–	–	–	0.76	0.76	0.42	0.70	0.56	0.56	0.32	0.53	0.43	0.43	0.26	0.42	0.33	0.33	0.20	0.28
	–	–	–	–	0.60	0.60	0.41	0.70	0.42	0.42	0.31	0.53	0.32	0.32	0.25	0.42	0.33	0.33	0.19	0.28
-0.75 m		–	–	0.59	0.76	0.62	0.62	0.41	0.57	0.47	0.47	0.31	0.45	0.37	0.37	0.24	0.34	–	–	–	–
	–	–	0.56	0.74	0.60	0.60	0.40	0.57	0.47	0.47	0.30	0.45	0.37	0.37	0.23	0.34	–	–	–	–

Bucket hinge height			Load radius from center of ring gear
Dipperstick 1150 mm		1.5 m	2.0 m	2.5 m	3.0 m	3.5 m
		UR	UE	UR	UE	UR	UE	UR	UE	UR	UE	UR	UE	UR	UE	UR	UE	UR	UE	UR	UE
					D
2.0 m		–	–	–	–	–	–	–	–	0.31	0.31	0.33	0.29	0.28	0.28	0.29	0.28	0.26	0.26	0.20	0.28
	–	–	–	–	–	–	–	–	0.31	0.31	0.29	0.29	0.28	0.28	0.28	0.28	0.26	0.26	0.16	0.28
1.0 m		–	–	–	–	0.63	0.63	0.44	0.60	0.44	0.44	0.31	0.43	0.35	0.35	0.25	0.34	0.29	0.29	0.19	0.29
	–	–	–	–	0.63	0.63	0.38	0.60	0.44	0.44	0.29	0.43	0.35	0.35	0.24	0.34	0.29	0.29	0.18	0.29
0.0 m		–	–	–	–	0.69	0.69	0.41	0.64	0.50	0.50	0.28	0.50	0.37	0.37	0.21	0.37	0.28	0.28	0.20	0.27
	–	–	–	–	0.54	0.54	0.38	0.64	0.50	0.50	0.27	0.50	0.37	0.37	0.21	0.37	0.28	0.28	0.17	0.27
-0.75 m		–	–	0.51	0.77	0.54	0.54	0.39	0.51	0.39	0.39	0.29	0.38	0.28	0.28	0.28	0.29	0.21	0.21	0.22	0.21
	–	–	0.50	0.77	0.54	0.54	0.34	0.51	0.39	0.39	0.26	0.38	0.28	0.28	0.20	0.29	0.21	0.21	0.22	0.21

Other features

SECOND ADDITIONAL CONTROL CIRCUIT
For precise operation of attachment tools, the second auxiliary control circuit is electrically proportionally optional starting from TC16-2 and above. Via a joystick (Schaeff Fingertip Control), the driver exerts a special feature that can normally only be seen on excavators of
SCHAEFF FINGERTIP CONTROL
With the Schaeff Fingertip Control, electrically proportional actuation of hydraulic functions is extremely easy with a thumb wheel on the joystick. This allows the operator to precisely regulate oil flow from zero to full, an advantage when controlling attachments such as clamshell buckets or rocking shovels. Also at the first control circuit and second control circuit left there is also a joystick for the right joystick respectively.
Canopy version
The machines are also available in canopy versions. With safety equipment such as the lockable storage compartment.
ROPS (Roll-Over Protective Structure)
Fuel fill ports in working height, TOPS (TIP-Over Protective Structure)
Additional control circuit up to end of dipperstick
LUDV (Load Independent Flow Sharing) Hydraulics, cab/canopy mounted working flood light, stand and storage options for tools, mobile phone and, weight-dependent adjustable comfort seat, seat belt, hydraulic pilot control with adjustable handrests, cabin heater with disc defroster, front window opening system with throttle damped, wiring for speakers and antenna, radio plug support, battery main switch, 12 V port compartment, side mirrors, accelerator pedals and communications drinks, right window opens wide for optimal ventilation, visibility.
ROPS (Roll-Over Protective Structure)
TOPS (TIP-Over Protective Structure), weight dependent adjustable comfort seat, hydraulic pilot control with adjustable handrests, seat belt, 12 V connection, accelerator pedals, lockable storage space under the driver's seat, stow and bearing options for tools, mobile phone and beverages.

Tables

Nominal voltage	12 V
Battery	12 V / 44 Ah
Generator	12 V / 40 A
Starter	1.4 kW
Lighting system:	1 work light front left on the cab / canopy (auxiliary headlamps optional)

Independent of drive train	sensitive control via separate hand lever"
Width x height	1340 x 235 mm
Dozer cut below ground	160 mm
Dozer lift above ground	200 mm
Slope angle	25°

Lateral parallel adjustment of boom arrangement at full dig depth.
Angle of articulation / lateral adjustment left	59° / 414 mm
Angle of articulation / lateral adjustment right	60° / 555 mm

Manufacturer, model	Kubota, D902 Tier 4 final"
Type	3-cylinder diesel engine
Bore x stroke	72 x 73.6 mm
Displacement	898 cm3
Power rating acc. to ISO 14396 @ 2300 rpm	12.0 kW (16.3 HP)
Torque max. @ 1800 rpm	52.1 Nm
Air filter with safety cartridge and maintenance switch

Bucket, QAS	250 mm wide, capacity 21 l, 27 kg"
Bucket, QAS	300 mm wide, capacity 26 l, 30 kg"
Bucket, QAS	400 mm wide, capacity 37 l, 35 kg"
Bucket, QAS	500 mm wide, capacity 48 l, 41 kg"
Bucket, QAS	600 mm wide, capacity 59 l, 46 kg"
Ditch-cleaning bucket, QAS	1000 mm wide, capacity 91 l, 79 kg"
Swing bucket, QAS	1000 mm wide, capacity 49 l, 79 kg"
