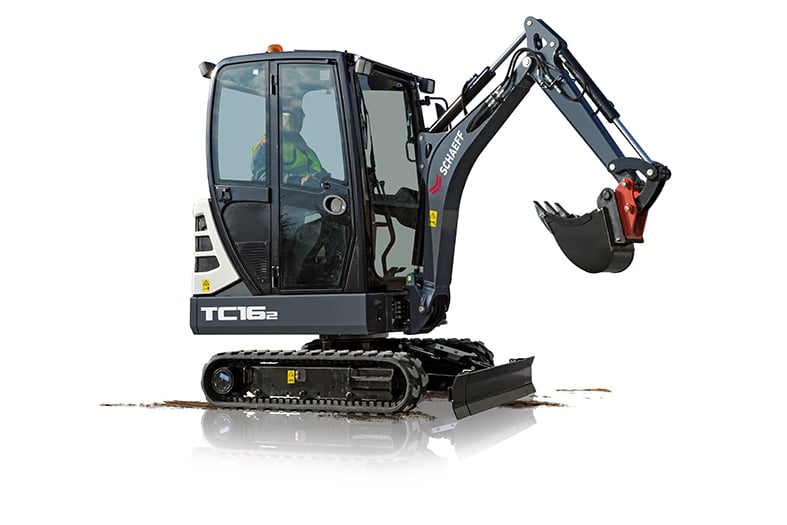

TC 16-2 Schaeff excavator specs & dimensions (2017 - 2020)

Very simple: the ability to reliably do more.
With these new models mini-excavate you in XL format: High digging forces, functional design, more space. Schaeff offers four models in the 1.5 2.0 tonne segment. From the rental version to high end configuration for demanding job site use. All equipped with high performance genes.
TRADITION MEETS PROGRESS
The Schaeff philosophy of conventional construction, articulated-matik and top mounted cylinders have been retained. A completely new machine has been built around these elements, from high performance brand components to the new driver's cab.

The new XL cab (ROPS/TOPS certified) offers room and comfort like the big ones. For a quick start, the console can be raised for more space to get into the cabin. Footwell provides enough space even on shoe sizes 15 and larger. Generally speaking, the workplace can be individually adjusted to the size of the driver. The large glass area allows optimum visibility over the attachment tools and work environment. For optimal communication on the job site, the right window can be opened up to the ground level.

ENGINE AND HYDRAULIC SYSTEM
Compared to current competitor models, the mini excavator offers an average of 20 % more working capacity when digging trenches quickly for example. LUDV (Load Independent Flow Sharing) hydraulics are offered by only a few models in this class. Even for extreme terrain, the bucket dig powerfully and is completely filled up.
ERGONOMICS
Special attention has been paid to ergonomics on all models; for example, the blade lever provides an integrated travel speed controller. This feature makes leveling and digging much easier.

The undercarriage is adjustable from 990 to 1340 mm. This guarantees full mobility on jobsites with narrow passages/gates, and offers exceptional stability in difficult terrain
GOOD OPTIONS OPTIMIZE YOUR MINI EXCAVATOR FOR USE
crane lift beam, weather resistant roof, rubber track, 230 mm wide (long pitch), Pre-prepared installation for radio plug module (radio socket, antenna, 2 speakers), anti-theft system, switches and wiring for rotating beacon, Additional working lights and slewing light, load hooks, load retention valve, oil versions, protective grille, fire extinguisher, travel motion alarm.

SECOND ADDITIONAL CONTROL CIRCUIT
For precise operation of attachment tools, the second auxiliary control circuit is electrically proportionally optional starting from TC16-2 and above. Via a joystick (Schaeff Fingertip Control), the driver exerts a special feature that can normally only be seen on excavators of
SCHAEFF FINGERTIP CONTROL
With the Schaeff Fingertip Control, electrically proportional actuation of hydraulic functions is extremely easy with a thumb wheel on the joystick. This allows the operator to precisely regulate oil flow from zero to full, an advantage when controlling attachments such as clamshell buckets or rocking shovels. Also at the first control circuit and second control circuit left there is also a joystick for the right joystick respectively.
Canopy version
The machines are also available in canopy versions. With safety equipment such as the lockable storage compartment.
ROPS (Roll-Over Protective Structure)
Fuel fill ports in working height, TOPS (TIP-Over Protective Structure)
Additional control circuit up to end of dipperstick
LUDV (Load Independent Flow Sharing) Hydraulics, cab/canopy mounted working flood light, stand and storage options for tools, mobile phone and, weight-dependent adjustable comfort seat, seat belt, hydraulic pilot control with adjustable handrests, cabin heater with disc defroster, front window opening system with throttle damped, wiring for speakers and antenna, radio plug support, battery main switch, 12 V port compartment, side mirrors, accelerator pedals and communications drinks, right window opens wide for optimal ventilation, visibility.
ROPS (Roll-Over Protective Structure)
TOPS (TIP-Over Protective Structure), weight dependent adjustable comfort seat, hydraulic pilot control with adjustable handrests, seat belt, 12 V connection, accelerator pedals, lockable storage space under the driver's seat, stow and bearing options for tools, mobile phone and beverages.

SCHAEFF KNICKMATIK®
The Schaeff articulated hydraulic system with adjustable articulated boom system is ideal for working along walls or embankments. The overall articulation angle is an impressive 120. The swing cylinder does not project over the track, thus being protected from damage.

With Schaeff-specific design features, damage is avoided right from the start: Because of the upper position of the top mounted cylinder, contact between piston rod and loader edge never exists when loading trucks. The articulatedmatics are deliberately placed on the left so that in case of a collision it is protected against damage. The boom can be pivoted to both sides at fill digging depth.

The hydraulic hoses on the work device are well protected by the boom, or located close to the boom.
