TC 10 Z Schaeff excavator specs & dimensions (2017 - 2020)

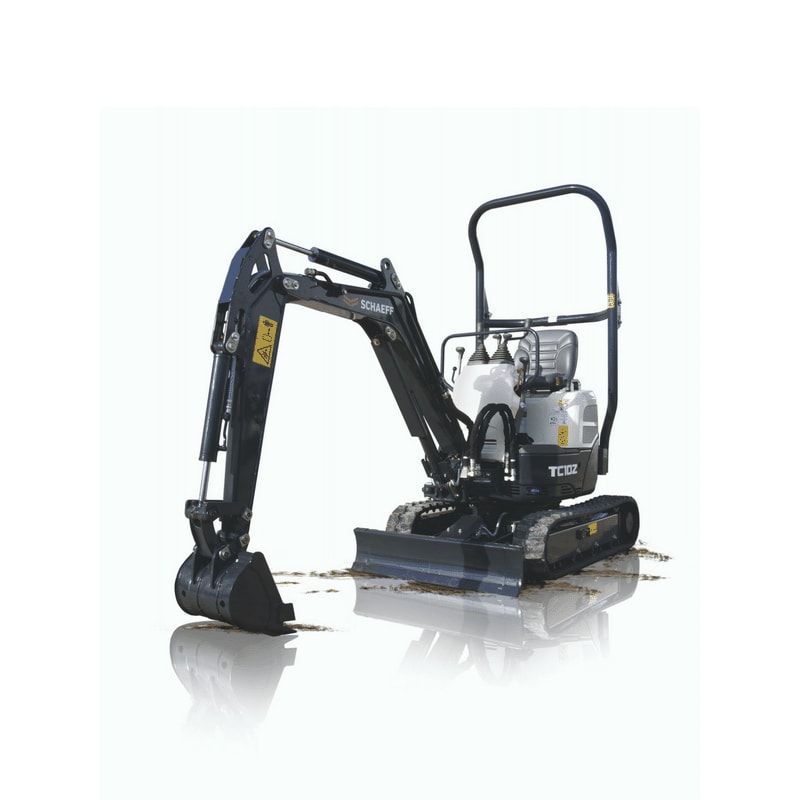

Schaeff TC 10 Z is a Mini Excavator manufactured from 2017 to 2020. It has a weight of 1.22 tons and a track width of 180 mm. The …

Schaeff TC 10 Z is a Mini Excavator manufactured from 2017 to 2020. It has a weight of 1.22 tons and a track width of 180 mm. The transport dimensions are 3.04 m in length, 1 m in width, and 2.25 m in height. The machine features a tear-out force of 5.59 kN, a dredging depth of 1.95 m, and a maximum horizontal reach of 3.27 m. The bucket width is 0.3 m with a minimum bucket capacity of 0.032 m³. Special equipment includes a blade, quick hitch mechanism, rubber track, and track adjustment.

TC 10 Z

Years of manufacture: 2017—2020

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - TC 10 Z Schaeff

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 1.22 t

Transport length: 3.04 m

Transport width: 1 m

Transport height: 2.25 m

Bucket capacity min.: 0.032 m³

Bucket width: 0.3 m

Track width: 180 mm

Driver protection: Ü

Max. Reach horizontal: 3.27 m

Dredging depth: 1.95 m

Tear-out force: 5.59 kN

Model series: Z

Engine manuf.: Yanmar

Engine type: 2TNV70

Engine power: 9.2 kW

Displacement: 0.854 l

Revolutions at max torque: 1600 rpm

Max. torque: 52/1600 Nm

No. of cylinders: 3

Emission level: Tier2

More technical details, like: bucket capacity, bucket capacity max., standard tyres, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: Yes
Rubber track: Yes
Blade: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: Yes

Download datasheets (PDF)

Schaeff TC 10 Z FAQ

When was the Schaeff TC 10 Z manufactured?

The Schaeff TC 10 Z was manufactured from 2017 to 2020.

How much does the Schaeff TC 10 Z weigh?

The Schaeff TC 10 Z weighs 1.22 tons.

What are the transport dimensions of the Schaeff TC 10 Z mini excavator?

The Schaeff TC 10 Z has a transport length of 3.04 meters, a transport width of 1 meter, and a transport height of 2.25 meters.

What is the track width of the Schaeff TC 10 Z mini excavator?

The Schaeff TC 10 Z mini excavator has a track width of 180 mm.

What are the excavation specifications of the Schaeff TC 10 Z mini excavator?

The Schaeff TC 10 Z mini excavator has a dredging depth of 1.95 meters and a maximum horizontal reach of 3.27 meters.

What is the tear-out force of the Schaeff TC 10 Z mini excavator?

The Schaeff TC 10 Z mini excavator has a tear-out force of 5.59 kN.

What are the bucket specifications of the Schaeff TC 10 Z mini excavator?

The Schaeff TC 10 Z has a minimum bucket capacity of 0.03 cubic meters and a bucket width of 0.3 meters.

What operator safety features does the Schaeff TC 10 Z have?

The Schaeff TC 10 Z is equipped with a roll-over bar for driver protection.

How much is a Schaeff TC 10 Z Mini excavator (2017u20132020) worth?

The residual value of the Schaeff TC 10 Z depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Schaeff TC 10 Z overview

Dimensions and weight

Bucket hinge height			Load radius from centre of ring gear
Dipperstick 980 mm		1.5 m	2.0 m	2.5 m	Max
		UR	UE	UR	UE	UR	UE	UR	UE	UR	UE	UR	UE	UR	UE	UR	UE

2.0 m 1.5 m		–	–	–	–	185*	185*	145	185*	190*	190*	120	185*	185*	185*	115	185*
	–	–	–	–	185*	185*	145	185*	190*	190*	120	185*	185*	185*	110	185*
	–	–	–	–	205*	205*	160	205*	205*	205*	120	155	230	230	95	125
	–	–	–	–	205*	205*	160	205*	205*	205*	115	155	160	160	90	125
1.0 m		370*	370*	255	380*	270*	270*	160	200	240*	240*	115	145	230*	230*	90	115
	365*	365*	245	380	265*	265*	155	200	180	180	110	145	145	145	85	115
-0.5 m		550*	550*	210	305	345*	345*	150	195	270*	270*	100	145	245*	245*	85	110
	355	355	200	305	230	230	145	195	170	170	100	145	130	130	80	110
0.0 m		600*	600*	205	275	385*	385*	140	185	305*	305*	100	140	260*	260*	85	115
	335	335	200	270	230	230	140	185	175	175	100	135	140	140	80	115
-0.5 m		615	615	210	260	395	395	135	180	305*	305*	105	145	280*	280*	90	125
	330	330	200	260	215	215	130	175	165	165	100	140	155	155	90	125

provided as standard.
Width (outside edge of crawler chains)	830 - 1000 mm
Width rubber tracks	180 mm
Total length (undercarriage)	1440 mm
DOZER BLADE

OPERATING DATA	STANDARD EQUIPMENT"
Transport weight (with 2 support members	foldable)"	1145 kg
Operating weight (with 2 support members	foldable) acc. to ISO 6016"	1220 kg
Total length (travel position)	2270 mm
Total length (trailer transport position)	3040 mm
Total height (travel position)		2250 mm
Total height (trailer transport position)		1420 mm
Total width		830 / 1000 mm
Uppercarriage tailswing		650 mm
Uppercarriage frontswing		1080 mm
Working envelope 180° / 360°		1730 / 2160 mm
Ground clearance		140 mm
Bucket digging force (ISO 6015)		13	730 N"
Stick digging force (ISO 6015)		5590 N
Ground pressure (rubber crawlers)		0.26 daN/cm2
HYDRAULIC SYSTEM
Pumpenfördermenge		2 x 11 l/min
Arbeitsdruck		210 bar
Arbeitshydraulik: Variable flow dual piston pump for all working movements and travel drive. Simultane- ous independent control of all movements.
Control circuit for work attachments (single or dual-action):
Pump capacity	22 ~13 l/min
Max. working pressure		210 bar
OPERATOR’S STAND
2 vertical support members	foldable	ROPS protective frame."
Operator‘s seat with artificial leather covering	seat belt."
Instrument panel in front of the operator‘s seat	safety bar. Safety lever to lock the machine."	main functions of the
Separate pedals for the 3rd circuit (PTO) and boom swing: possibility of combined movements.
Working floodlight mounted on the boom.
Noise emission cab LpA		88 dB (A)
Measured in dynamic measuring cycle acc. to EC Directive 2000/14/EC & 2005/88/EG.

Tables

Hydrostatic travel drive	fully enclosed."
Travel speed	forward and reverse"	0-2.1 km/h
Gradeability	30 deg. max

Width x height	830 / 1000 x 220 mm
Dozer cut below ground	230 mm
Dozer lift above ground	210 mm
STEERING
Independent, individual control of crawler chains, also counterwise. Sensitive Pedal console serving as foot rest.	control via hand levers,"
SWING SYSTEM
Hydrostatic drive	also acts as wear-resistant brake. Internally toothed ring"	gear.

Bucket, QAS	200 mm wide, capacity 10 l"
Tieflöffel, Direktanbau	200 mm wide, capacity 10 l"
Bucket, QAS	260 mm wide, capacity 15 l"
Tieflöffel, Direktanbau	260 mm wide, capacity 15 l"
Bucket, QAS	300 mm wide, capacity 18 l"
Tieflöffel, Direktanbau	300 mm wide, capacity 18 l"
Bucket, QAS	350 mm wide, capacity 21 l"
Tieflöffel, Direktanbau	350 mm wide, capacity 21 l"
Bucket, QAS	400 mm wide, capacity 25 l"
Tieflöffel, Direktanbau	400 mm wide, capacity 25 l"
Bucket, QAS	500 mm wide, capacity 32 l"
Tieflöffel, Direktanbau	500 mm wide, capacity 32 l"
Ditch-cleaning bucket, QAS	700 mm wide, capacity 26 l"
Grabenräumlöffel, Direktanbau	700 mm wide, capacity 26 l"
Ditch-cleaning bucket, QAS	800 mm wide, capacity 30 l"
Swing bucket, QAS	1000 mm wide, capacity 70 l"
Trapezoïdal bucket	200 mm wide	capacity 80 l"
