SY18C Sany excavator specs & dimensions (2021 - 2026)

Sany SY18C is a mini excavator manufactured since 2021, with a weight of 1.85 tons. It features a track width of 230 mm and has tr…

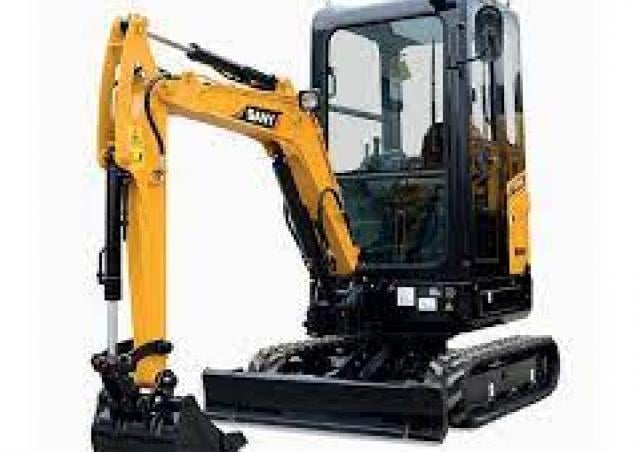

Sany SY18C is a mini excavator manufactured since 2021, with a weight of 1.85 tons. It features a track width of 230 mm and has transport dimensions of 3.64 meters in length, 0.98 meters in width, and 2.42 meters in height. The machine offers a tear-out force of 9.2 kN, a dredging depth of 2.36 meters, and a maximum horizontal reach of 4 meters. The bucket capacity is 0.04 cubic meters. Special equipment includes a blade and rubber tracks.

Mini Excavators Sany SY18C

Visit Sany live at

Technical specs - SY18C Sany

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.925 t
Transport length
3.64 m
Transport width
0.98 m
Transport height
2.42 m
Bucket capacity
0.049 m³
Bucket width
0.5 m
Track width
230 mm
Driver protection
FD
Max. Reach horizontal
4 m
Dredging depth
2.36 m
Tear-out force
9.2 kN
Model series
SY
Engine manuf.
Yanmar
Engine type
3TNV80F
Engine power
14.6 kW
Displacement
1.267 l
Revolutions at max torque
2400 rpm
Max. torque
64.7/1800 Nm
No. of cylinders
4
Emission level
V

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
Yes
Quick hitch mech.
No

Sany SY18C FAQ

When was the Sany SY18C manufactured?

The Sany SY18C was first produced in 2021.

How much does the Sany SY18C mini excavator weigh?

The Sany SY18C mini excavator weighs 1.925 tons.

What are the transport dimensions of the Sany SY18C mini excavator?

The Sany SY18C has a transport length of 3.64 meters, a transport width of 0.98 meters, and a transport height of 2.42 meters.

What is the track width of the Sany SY18C mini excavator's undercarriage?

The Sany SY18C mini excavator has a track width of 230 mm.

What are the excavation performance specifications of the Sany SY18C mini excavator?

The Sany SY18C mini excavator has a dredging depth of 2.36 meters and a maximum horizontal reach of 4 meters.

What is the tear-out force of the Sany SY18C mini excavator?

The Sany SY18C mini excavator has a tear-out force of 9.2 kN.

What are the bucket specifications of the Sany SY18C mini excavator?

The Sany SY18C mini excavator has a bucket capacity of 0.049 cubic meters and a bucket width of 0.5 meters.

What operator safety and support features does the Sany SY18C have?

The Sany SY18C is equipped with a canopy for driver protection.

How much is a Sany SY18C Mini excavator (2021u20132025) worth?

The residual value of the Sany SY18C depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
