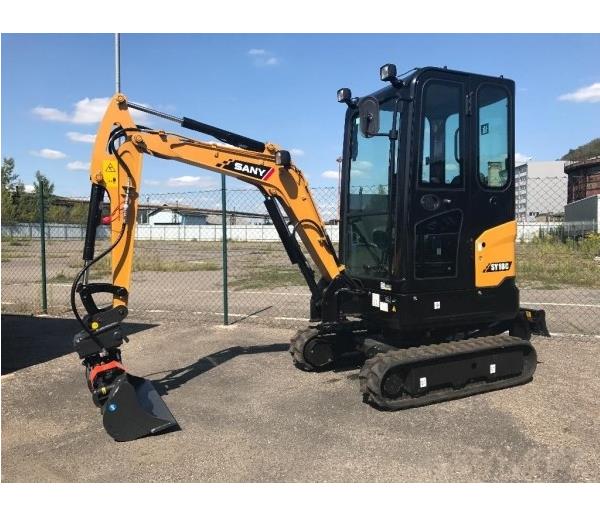

SY18C Sany excavator specs & dimensions (2018 - 2020)

Sany SY18C is a Mini Excavator manufactured from 2018 to 2020, with a weight of 1.82 tons. It features a track width of 230 mm, a …

Sany SY18C is a Mini Excavator manufactured from 2018 to 2020, with a weight of 1.82 tons. It features a track width of 230 mm, a transport length of 3.57 meters, a transport width of 0.98 meters, and a transport height of 2.42 meters. The machine has a tear-out force of 15.6 kN, a dredging depth of 4 meters, and a maximum horizontal reach of 3.66 meters. The bucket capacity is 0.04 cubic meters. Special equipment includes a blade and rubber tracks.

Visit Sany live at

SY18C

Years of manufacture: 2018—2020

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
Events
News

Technical specs - SY18C Sany

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 1.82 t

Transport length: 3.57 m

Transport width: 0.98 m

Transport height: 2.42 m

Bucket capacity: 0.04 m³

Track width: 230 mm

Driver protection: FD

Max. Reach horizontal: 3.66 m

Dredging depth: 4 m

Tear-out force: 15.6 kN

Model series: SY

Engine manuf.: Yanmar

Engine type: 3TNV74F

Engine power: 13.5 kW

Dimension lxwxh: 528x429x551 mm

Displacement: 0.993 l

Revolutions at max torque: 1800 rpm

Max. torque: 51.8 Nm

No. of cylinders: 3

Cylinder bore x stroke: 74x77 mm

Emission level: Tier 4

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: Yes
Blade: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

SY18C Sany Specification for Europe (EN)

Sany SY18C FAQ

When was the Sany SY18C manufactured?

The Sany SY18C was manufactured from 2018 to 2020.

How much does the Sany SY18C mini excavator weigh?

The Sany SY18C mini excavator weighs 1.82 tons.

What are the transport dimensions of the Sany SY18C mini excavator?

The Sany SY18C has a transport length of 3.57 meters, a transport width of 0.98 meters, and a transport height of 2.42 meters.

What is the track width of the Sany SY18C's undercarriage?

The Sany SY18C has a track width of 230 mm.

What are the dredging depth and maximum horizontal reach of the Sany SY18C mini excavator?

The Sany SY18C mini excavator has a dredging depth of 4 meters and a maximum horizontal reach of 3.66 meters.

What is the tear-out force of the Sany SY18C mini excavator?

The Sany SY18C mini excavator has a tear-out force of 15.6 kN.

What is the bucket capacity of the Sany SY18C mini excavator?

The Sany SY18C mini excavator has a bucket capacity of 0.04 cubic meters.

What operator safety and support features does the Sany SY18C have?

The Sany SY18C provides driver protection with a canopy.

How much is a Sany SY18C Mini excavator (2018u20132020) worth?

The residual value of the Sany SY18C depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Sany SY18C overview

Tyres / Tracks

Standard Equipment
Operators Environment Work equipment, Canopy/ ROPS with silicone rubber mounts, 12V output, document compartment, boom :Standard 1810mm, arm:standard 1130mm, AUX Line- Break line/pedal control, front dozer blade with adjustable width, 2 speed travel 2.1 3.7km/H Safety undercarriage, battery master switch, Fire-Extinugisher, Travel Alarm and Beacon, engine emergency cut off from ground, operating manual, rubber shoes 230mm, track roller per page : 3, Expandable Undercarriage 980mm/1,350mm Lighting, roof light 2x, Boom Light(left) 1x Not all products are available in all markets. Pursuant to our continuous improvement policy, we reserve the right to change specifications and design without prior notice. Illustrations do not necessarily show the standard version of the machine.

Dimensions and weight

OPERATING WEIGHT
Operating weight with standard +75 kg operator (ISO)	bucket	fully serviced
Operating weight (kg)	1825
Ground Pressure (kPa)	29	1"

ITEM	mm
A Transport Length	3575
B Transport Width	980/1350
C Transport Height	2420
D Upperstructure Width	980
E Blade Height	270
F Standard Track Shoe Width	230
G Track Gauge	750/1120
H Minimum Ground Clearance	180
I Tail Swing Radius	920
J Center distance of tumblers	1220
K Overall length of crawler	1585
Counterweight Clearance	470
Boom Length	1810
Arm Length	1130

ITEM	mm
A Max. Digging Height	3665
B Max. Dumping Height	2635
C Max. Digging Depth	2360
D Max. Vertical Digging depth	2215
E Max. Digging Reach	4000
F Min. Swing Radius	1655
G Height at Min. Swing Radius	2745
H Max. Clearance when Blade up	310
I Max. Depth of Blade down	320

Tables

A B	MAX	1.5m	2.0m	2.5m	3.0m
		5
3m (kg)	*285	*285
2m (kg)	*278	*278					*267	*253	*271	*271
1m (kg)	*288	*244			*483	*483	*371	*370	*316	*306
0m (kg)	*304	*252	*826	*826	*631	*528	*456	*383	*357	*295
-1m (kg)	*318	*318	*819	*819	*563	*529	*407	*382

DRIVE
Travel Speed (Low/High) (km/h)	3	7/2	1"
Maximum Travel Force (kN)	15	6"
Gradeability	30°

ENGINE
Model	3TNV74F
Displacement (L)	0	993"
Engine power at rated engine speed (kW/ rpm)	11	2/2400"
Max. Torque (N·m/rpm)	48	5-51	8/1800"

DIGGING FORCE
Bucket Digging Force (kN)	15	2"
Arm Digging Force (kN)	9	2 Produktionshalle 1"

HYDRAULIC SYSTEM
Typ	Load sensing system
Number of selectable working modes	1
Main pump
Typ	Kolbenpumpen mit variab- ler Fördermenge
Maximum flow (L/min)	45
Hydraulic motors
Travel	2*axial piston motor with parking brake
Swing	1*axial piston motor with swing holding brake
Relief valve setting
Implement circuits (MPa)	27
Travel circuit (MPa)
Swing circuit (MPa)	16	2"
Heavy lift circuit (MPa)
Pilot circuit (MPa)	3	5"
Hydraulic cylinders
Boom cylinder diameter x stroke (mm)	55×387
Arm cylinder diameter x stroke (mm)	55×480
Bucket cylinder diameter x stroke (mm)	50×355
Blade cylinder diameter x stroke (mm)	75×120

SWING
Swing Speed (rpm)	10

SERVICE REFILL CAPACITIES (L)
Fuel tank	23
Engine coolant	3	8"
Engine oil	2
Swing drive	——
Final drive (each side)	0	4"
Hydraulic oil tank	21

UNDERCARRIAGE
Track shoe width (mm)	230
Number of track shoes (per side)	Rubber crawler
Carrier roller (per side)
Track roller (per side)	3
