PP20S-IX PowerPlus excavator specs & dimensions (2017 - 2026)

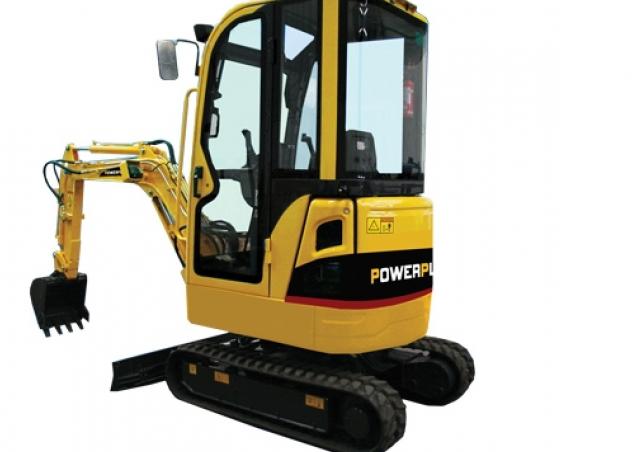

PowerPlus PP20S-IX is a mini excavator manufactured since 2017, with a weight of 1.88 tons. It features a track width of 230 mm, a…

PowerPlus PP20S-IX is a mini excavator manufactured since 2017, with a weight of 1.88 tons. It features a track width of 230 mm, a transport length of 3.835 meters, a transport width of 1.06 meters, and a transport height of 2.35 meters. The machine has a tear-out force of 14.3 kN, a dredging depth of 2.105 meters, and a maximum horizontal reach of 4.05 meters. The bucket capacity is 0.05 cubic meters. Special equipment includes air conditioning, a blade, rubber tracks, and track adjustment.

Mini Excavators PowerPlus PP20S-IX

Technical specs - PP20S-IX PowerPlus

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.88 t
Transport length
3.84 m
Transport width
1.06 m
Transport height
2.35 m
Bucket capacity
0.05 m³
Track width
230 mm
Max. Reach horizontal
4.05 m
Dredging depth
2.105 m
Tear-out force
14.3 kN
Model series
PP
Engine manuf.
Perkins
Engine type
403C-11
Engine power
15 kW
Emission level
Euro III

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, driver protection, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

PowerPlus PP20S-IX FAQ

When was the PowerPlus PP20S-IX manufactured?

The PowerPlus PP20S-IX was first produced in 2017.

How much does the PowerPlus PP20S-IX weigh?

The PowerPlus PP20S-IX weighs 1.88 tons.

What are the transport dimensions of the PowerPlus PP20S-IX mini excavator?

The PowerPlus PP20S-IX has a transport length of 3.84 meters, a transport width of 1.06 meters, and a transport height of 2.35 meters.

What is the track width of the PowerPlus PP20S-IX mini excavator?

The PowerPlus PP20S-IX mini excavator has a track width of 230 mm.

What are the excavation performance specifications of the PowerPlus PP20S-IX mini excavator?

The PowerPlus PP20S-IX mini excavator has a dredging depth of 2.105 meters and a maximum horizontal reach of 4.05 meters.

What is the tear-out force of the PowerPlus PP20S-IX mini excavator?

The PowerPlus PP20S-IX mini excavator has a tear-out force of 14.3 kN.

What is the bucket capacity of the PowerPlus PP20S-IX mini excavator?

The bucket capacity of the PowerPlus PP20S-IX mini excavator is 0.05 cubic meters.
