EB 150 XT Pel-Job excavator specs & dimensions (1997 - 2000)

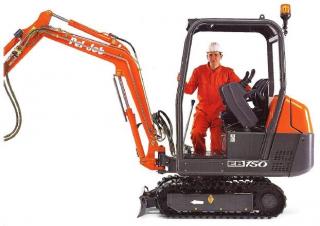

Pel-Job EB 150 XT is a mini excavator manufactured from 1997 to 2000, with a weight of 1.48 tons, a track width of 230 mm, a trans…

Pel-Job EB 150 XT is a mini excavator manufactured from 1997 to 2000, with a weight of 1.48 tons, a track width of 230 mm, a transport width of 0.98 meters, and a maximum bucket capacity of 0.03 cubic meters.

Mini Excavators Pel-Job EB 150 XT

Technical specs - EB 150 XT Pel-Job

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.48 t
Transport width
0.98 m
Bucket capacity max.
0.03 m³
Track width
230 mm
Driver protection
Ü
Model series
EB
Engine manuf.
Mitsubishi
Engine type
L 3 E
Engine power
11.2 kW
Displacement
0.952 l
Revolutions at max torque
2100 rpm

More technical details, like: transport length, transport height, bucket capacity, bucket capacity min., bucket width, standard tyres, max. reach horizontal, dredging depth, tear-out force, dimension lxwxh, max. torque, no. of cylinders...

More technical details, like: transport length, transport height, bucket capacity, bucket capacity min., bucket width, standard tyres, max. reach horizontal, dredging depth, tear-out force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Pel-Job EB 150 XT FAQ

When was the Pel-Job EB 150 XT manufactured?

The Pel-Job EB 150 XT was manufactured from 1997 to 2000.

How much does the Pel-Job EB 150 XT weigh?

The Pel-Job EB 150 XT weighs 1.48 tons.

What is the transport width of the Pel-Job EB 150 XT mini excavator?

The transport width of the Pel-Job EB 150 XT mini excavator is 0.98 meters.

What is the track width of the Pel-Job EB 150 XT's undercarriage?

The Pel-Job EB 150 XT has a track width of 230 mm.

What is the maximum bucket capacity of the Pel-Job EB 150 XT mini excavator?

The Pel-Job EB 150 XT has a maximum bucket capacity of 0.03 cubic meters.

What operator safety feature does the Pel-Job EB 150 XT have?

The Pel-Job EB 150 XT is equipped with a roll-over bar for driver protection.

How much is a Pel-Job EB 150 XT Mini excavator (1997u20132000) worth?

The residual value of the Pel-Job EB 150 XT depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
