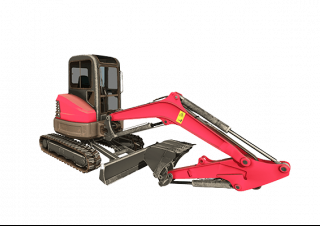

EH15.B New Holland excavator specs & dimensions (2005 - 2026)

New Holland EH15.B is a mini excavator manufactured since 2005, with a weight of 1 ton. It features a track width of 230 mm, a tra…

New Holland EH15.B is a mini excavator manufactured since 2005, with a weight of 1 ton. It features a track width of 230 mm, a transport length of 3 meters, a transport width of 1 meter, and a transport height of 2 meters. The excavator is equipped with a blade, rubber track, and track adjustment.

Mini Excavators New Holland EH15.B

Technical specs - EH15.B New Holland

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1 t
Transport length
3 m
Transport width
1 m
Transport height
2 m
Track width
230 mm
Driver protection
Ü
Max. Reach horizontal
3.77 m
Dredging depth
2.11 m
Tear-out force
12.8 kN
Engine manuf.
Yanmar
Engine type
3TNE68-YB
Engine power
9 kW
Displacement
0.784 l
No. of cylinders
3

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, model series, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

New Holland EH15.B FAQ

When was the New Holland EH15.B manufactured?

The New Holland EH15.B was first produced in 2005.

How much does the New Holland EH15.B weigh?

The New Holland EH15.B weighs 1 ton.

What are the transport dimensions of the New Holland EH15.B mini excavator?

The New Holland EH15.B has a transport length of 3 meters, a transport width of 1 meter, and a transport height of 2 meters.

What is the track width of the New Holland EH15.B mini excavator?

The New Holland EH15.B mini excavator has a track width of 230 mm.

What are the dredging depth and maximum horizontal reach of the New Holland EH15.B mini excavator?

The New Holland EH15.B mini excavator has a dredging depth of 2.11 meters and a maximum horizontal reach of 3.77 meters.

What is the tear-out force of the New Holland EH15.B mini excavator?

The New Holland EH15.B mini excavator has a tear-out force of 12.8 kN.

What operator safety features does the New Holland EH15.B have?

The New Holland EH15.B is equipped with a roll-over bar for driver protection.

How much is a New Holland EH15.B Mini excavator (2005u20132025) worth?

The residual value of the New Holland EH15.B depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

New Holland EH15.B overview

Engine / Driveline and transmission

Light-touch, low-effort controls
Control pattern selector SAE or ISO, Responsive for delicate work, Exclusive boom center wing hand control, Auxiliary hydraulics Hand controls, Easy to reach dozer blade control handle
Warning lights
water temperature, air filter, water separator detection, low fuel, glow plug indicator, battery charge.

Hydraulics

INFORMATION ON DISPLAY Indicators
Engine oil pressure, fuel level gauge, hour blade - visible from ground level, water temperature

Other features

OPERATOR COMFORT IS NOT AN OPTION, BUT STANDARD.
With outstanding visibility and easy-to-use controls, operators remain comfortable and productive.
More spacious and comfortable
20% larger operator platform offers more legroom, three-post design provides 40% wider access to the platform for easy entry and exit.
Comfortable seating
Upholstered seat adjusts to each operator, standard armrests, Extended seat slide.
Optional cab with heater
Larger front glass for increased visibility, Increased door width, Optional air conditioning system.

The wider cab and windshield give you an excellent view of the trench and surrounding work area. Heating is standard. Air conditioning is one option. The larger platform and broader threshold make it easy to get in and out.
