EC45 New Holland excavator specs & dimensions (1999 - 2026)

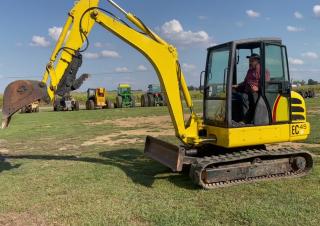

New Holland EC45 is a mini excavator manufactured since 1999. It has a weight of 4 tons and features a track width of 400 mm. The …

New Holland EC45 is a mini excavator manufactured since 1999. It has a weight of 4 tons and features a track width of 400 mm. The transport dimensions are 5 meters in length, 1 meter in width, and 2 meters in height. The machine offers a tear-out force of 31 kN, a dredging depth of 3 meters, and a maximum horizontal reach of 6 meters. The bucket capacity ranges from 2 m³ to 8 m³. Special equipment includes a blade and rubber tracks.

Mini Excavators New Holland EC45

Technical specs - EC45 New Holland

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.68 t
Transport length
5.54 m
Transport width
1.85 m
Transport height
2.61 m
Bucket capacity min.
2.6 m³
Bucket capacity max.
8.7 m³
Track width
400 mm
Driver protection
Ü
Max. Reach horizontal
6.02 m
Dredging depth
3.7 m
Tear-out force
31 kN
Engine manuf.
Mitsubishi
Engine type
S4Q2.Y162 KL
Engine power
34.6 kW
Displacement
2.505 l
No. of cylinders
4

More technical details, like: bucket capacity, bucket width, standard tyres, model series, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

New Holland EC45 FAQ

When was the New Holland EC45 manufactured?

The New Holland EC45 was first produced in 1999.

How much does the New Holland EC45 mini excavator weigh?

The New Holland EC45 mini excavator weighs 4.68 tons.

What are the transport dimensions of the New Holland EC45 mini excavator?

The New Holland EC45 has a transport length of 5.54 meters, a transport width of 1.85 meters, and a transport height of 2.61 meters.

What is the track width of the New Holland EC45 mini excavator?

The New Holland EC45 mini excavator has a track width of 400 mm.

What are the dredging depth and maximum horizontal reach of the New Holland EC45 mini excavator?

The New Holland EC45 mini excavator has a dredging depth of 3.7 meters and a maximum horizontal reach of 6.02 meters.

What is the tear-out force of the New Holland EC45 mini excavator?

The New Holland EC45 mini excavator has a tear-out force of 31 kN.

What are the bucket capacity specifications of the New Holland EC45 mini excavator?

The New Holland EC45 mini excavator has a bucket capacity ranging from 2.6 to 8.7 cubic meters.

What operator safety and support features does the New Holland EC45 have?

The New Holland EC45 is equipped with a roll-over bar for driver protection.

How much is a New Holland EC45 Mini excavator (1999u20132025) worth?

The residual value of the New Holland EC45 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
