E35D New Holland excavator specs & dimensions (2022 - 2026)

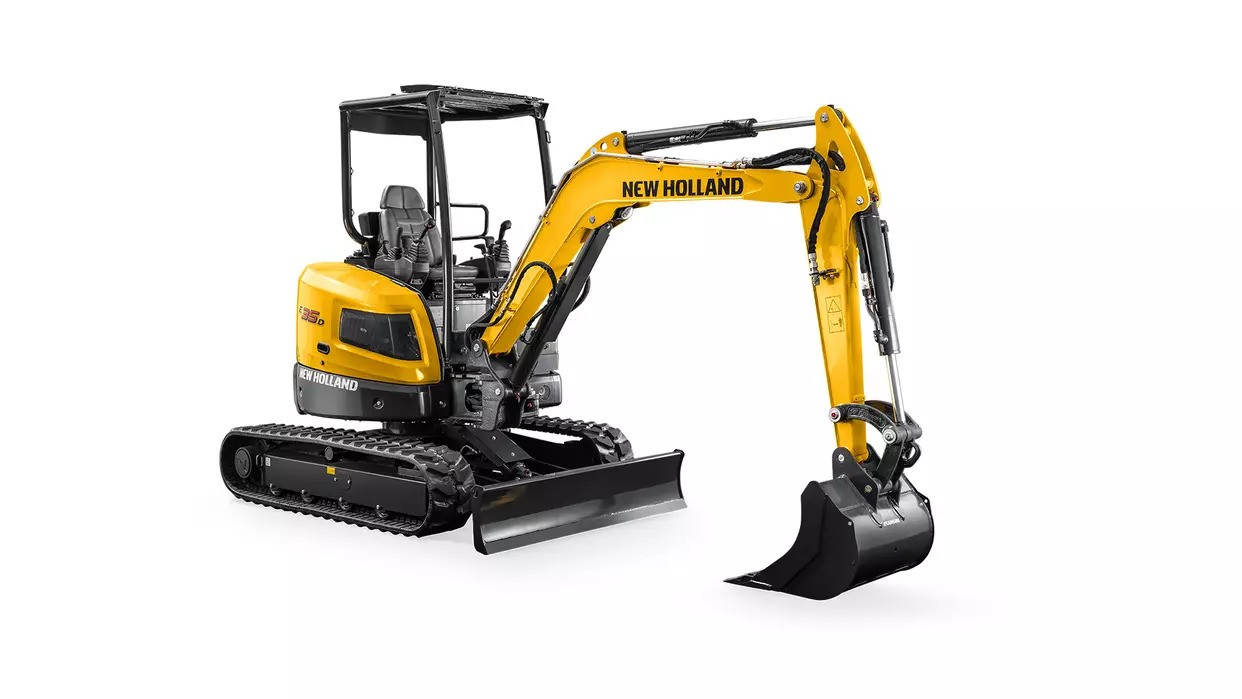

New Holland E35D is a mini excavator manufactured since 2022, with a weight of 3.4 t. It has a transport width of 1.58 m and a tra…

New Holland E35D is a mini excavator manufactured since 2022, with a weight of 3.4 t. It has a transport width of 1.58 m and a transport height of 2.53 m. The machine features a tear-out force of 31 kN and a dredging depth of 2.87 m. Special equipment includes a blade, quick hitch hydraulic, quick hitch mechanical, rubber track, and track adjustment.

Mini Excavators New Holland E35D

Technical specs - E35D New Holland

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.25 t
Transport width
1.58 m
Transport height
2.53 m
Driver protection
Kb
Dredging depth
2.87 m
Tear-out force
31 kN
Model series
E
Engine manuf.
Kubota
Engine type
D1703-M-DI-EF03
Engine power
18.2 kW
Displacement
1.64 l
Revolutions at max torque
2200 rpm
Max. torque
97.4 Nm
No. of cylinders
3
Cylinder bore x stroke
87x92.4 mm
Emission level
V

More technical details, like: transport length, bucket capacity, bucket capacity min., bucket capacity max., bucket width, track width, standard tyres, max. reach horizontal, dimension lxwxh are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
Yes
Quick hitch mech.
Yes

New Holland E35D FAQ

When was the New Holland E35D manufactured?

The New Holland E35D was first produced in 2022.

How much does the New Holland E35D weigh?

The New Holland E35D weighs 3.25 tons.

What are the transport dimensions of the New Holland E35D mini excavator?

The New Holland E35D has a transport width of 1.58 meters and a transport height of 2.53 meters.

What is the dredging depth of the New Holland E35D mini excavator?

The New Holland E35D mini excavator has a dredging depth of 2.87 meters.

What is the tear-out force of the New Holland E35D mini excavator?

The New Holland E35D mini excavator has a tear-out force of 31 kN.

What driver protection feature does the New Holland E35D have?

The New Holland E35D has a cabin for driver protection.
