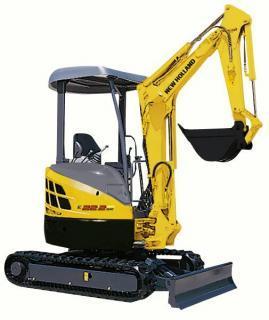

E22.2SR New Holland excavator specs & dimensions (2005 - 2012)

New Holland E22.2SR is a mini excavator manufactured from 2005 to 2012. It has a weight of 2.55 tons and a track width of 250 mm. …

New Holland E22.2SR is a mini excavator manufactured from 2005 to 2012. It has a weight of 2.55 tons and a track width of 250 mm. The transport dimensions are 3.82 meters in length, 1.4 meters in width, and 2.46 meters in height. The tear-out force is 12 kN, and the bucket capacity ranges from 0.035 m³ to 0.088 m³. Special equipment includes a blade and rubber tracks.

Mini Excavators New Holland E22.2SR

Technical specs - E22.2SR New Holland

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.55 t
Transport length
3.82 m
Transport width
1.4 m
Transport height
2.46 m
Bucket capacity min.
0.035 m³
Bucket capacity max.
0.088 m³
Track width
250 mm
Driver protection
Kb
Max. Reach horizontal
4.19 m
Dredging depth
2.65 m
Tear-out force
12 kN
Model series
E
Engine manuf.
Yanmar
Engine type
3TNV82A-SYB
Engine power
17 kW
Displacement
1.33 l
Revolutions at max torque
2200 rpm

More technical details, like: bucket capacity, bucket width, standard tyres, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

New Holland E22.2SR FAQ

When was the New Holland E22.2SR manufactured?

The New Holland E22.2SR was manufactured from 2005 to 2012.

How much does the New Holland E22.2SR weigh?

The New Holland E22.2SR weighs 2.55 tons.

What are the transport dimensions of the New Holland E22.2SR mini excavator?

The New Holland E22.2SR has a transport length of 3.82 meters, a transport width of 1.4 meters, and a transport height of 2.46 meters.

What is the track width of the New Holland E22.2SR mini excavator?

The New Holland E22.2SR mini excavator has a track width of 250 mm.

What are the excavation performance specifications of the New Holland E22.2SR mini excavator?

The New Holland E22.2SR mini excavator has a dredging depth of 2.65 meters and a maximum horizontal reach of 4.19 meters.

What is the tear-out force of the New Holland E22.2SR mini excavator?

The New Holland E22.2SR mini excavator has a tear-out force of 12 kN.

What are the bucket capacity specifications of the New Holland E22.2SR mini excavator?

The New Holland E22.2SR mini excavator has a bucket capacity ranging from 0.04 to 0.09 cubic meters.

What operator safety features does the New Holland E22.2SR have?

The New Holland E22.2SR has a cabin for driver protection.

How much is a New Holland E22.2SR Mini excavator (2005u20132012) worth?

The residual value of the New Holland E22.2SR depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
