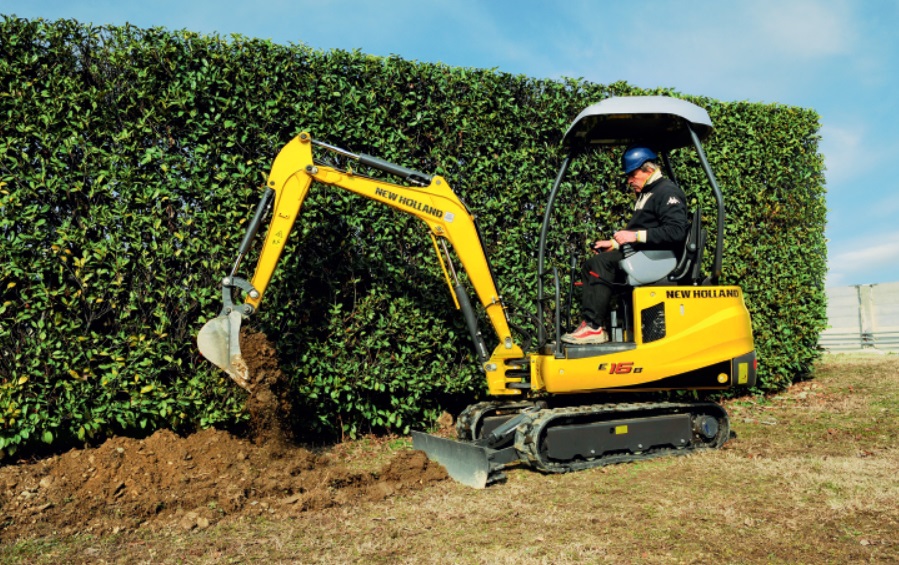

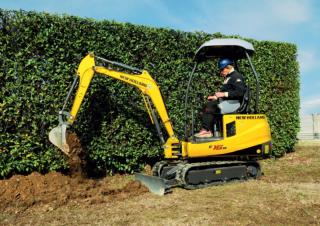

E16B New Holland excavator specs & dimensions (2008 - 2015)

New Holland E16B is a mini excavator manufactured from 2008 to 2015. It has a weight of 1.64 tons and a track width of 230 mm. The…

New Holland E16B is a mini excavator manufactured from 2008 to 2015. It has a weight of 1.64 tons and a track width of 230 mm. The transport dimensions are 3.65 meters in length, 0.99 meters in width, and 2.34 meters in height. The bucket capacity ranges from a minimum of 0.03 cubic meters to a maximum of 0.07 cubic meters. Special equipment includes a blade and rubber tracks.

Mini Excavators New Holland E16B
Mini Excavators New Holland E16B
Mini Excavators New Holland E16B
Mini Excavators New Holland E16B

Technical specs - E16B New Holland

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.64 t
Transport length
3.65 m
Transport width
0.99 m
Transport height
2.34 m
Bucket capacity min.
0.03 m³
Bucket capacity max.
0.07 m³
Track width
230 mm
Driver protection
Kb
Max. Reach horizontal
3.99 m
Dredging depth
2.38 m
Tear-out force
8.7 kN
Model series
E
Engine manuf.
Mitsubishi
Engine type
L 3 E-W 231 KBS
Engine power
11.2 kW
Displacement
1.01 l
Revolutions at max torque
2100 rpm

More technical details, like: bucket capacity, bucket width, standard tyres, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

New Holland E16B FAQ

When was the New Holland E16B manufactured?

The New Holland E16B was manufactured from 2008 to 2015.

How much does the New Holland E16B weigh?

The New Holland E16B weighs 1.64 tons.

What are the transport dimensions of the New Holland E16B mini excavator?

The New Holland E16B has a transport length of 3.65 meters, a transport width of 0.99 meters, and a transport height of 2.34 meters.

What is the track width of the New Holland E16B mini excavator?

The New Holland E16B mini excavator has a track width of 230 mm.

What are the excavation performance specifications of the New Holland E16B mini excavator?

The New Holland E16B mini excavator has a dredging depth of 2.38 meters and a maximum horizontal reach of 3.99 meters.

What are the power ratings of the New Holland E16B mini excavator?

There are no power rating specifications available for the New Holland E16B mini excavator in the provided data.

What are the bucket capacity specifications of the New Holland E16B mini excavator?

The New Holland E16B mini excavator has a bucket capacity ranging from 0.03 to 0.07 cubic meters.

What operator safety and support features does the New Holland E16B have?

The New Holland E16B provides operator safety with a protective cabin.
