3503 Neuson excavator specs & dimensions (2002 - 2004)

Neuson 3503 is a mini excavator manufactured from 2002 to 2004, with a weight of 3.4 tons. It features a track width of 300 mm and…

Neuson 3503 is a mini excavator manufactured from 2002 to 2004, with a weight of 3.4 tons. It features a track width of 300 mm and a transport width of 1.62 meters. The bucket capacity is 0.088 cubic meters, and it comes equipped with a blade and rubber tracks.

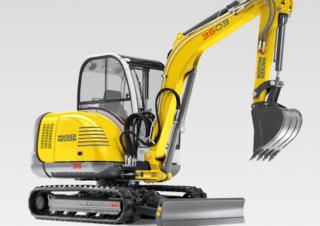

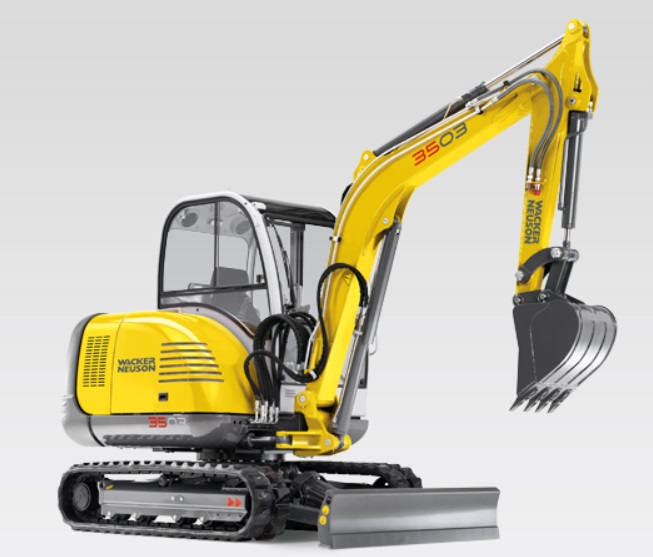

Mini Excavators Neuson 3503
Mini Excavators Neuson 3503
Mini Excavators Neuson 3503
Mini Excavators Neuson 3503

Technical specs - 3503 Neuson

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.4 t
Transport width
1.62 m
Bucket capacity
0.088 m³
Track width
300 mm
Driver protection
FD
Engine manuf.
Yanmar
Engine type
4TNE88
Engine power
36 kW

More technical details, like: transport length, transport height, bucket capacity min., bucket capacity max., bucket width, standard tyres, max. reach horizontal, dredging depth, tear-out force, model series, dimension lxwxh, displacement...

More technical details, like: transport length, transport height, bucket capacity min., bucket capacity max., bucket width, standard tyres, max. reach horizontal, dredging depth, tear-out force, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Neuson 3503 FAQ

When was the Neuson 3503 manufactured?

The Neuson 3503 was manufactured from 2002 to 2004.

How much does the Neuson 3503 weigh?

The Neuson 3503 weighs 3.4 tons.

What is the transport width of the Neuson 3503 mini excavator?

The transport width of the Neuson 3503 mini excavator is 1.62 meters.

What is the track width of the Neuson 3503 mini excavator's undercarriage?

The Neuson 3503 mini excavator has a track width of 300 mm.

What is the bucket capacity of the Neuson 3503 mini excavator?

The Neuson 3503 mini excavator has a bucket capacity of 0.088 cubic meters.

What operator safety features does the Neuson 3503 have?

The Neuson 3503 is equipped with a canopy for driver protection.

How much is a Neuson 3503 Mini excavator (2002u20132004) worth?

The residual value of the Neuson 3503 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Neuson 3503 overview

Dimensions and weight

Duty pumpDouble variable and gear pump
Flow rate1141 l/min"
Operating pressure for working and traction hydraulics240 bar
Operating pressure Slewing gear200 bar
RPM / speed Superstructure92 rpm"
Hydraulic oil tank50 l
Wheel set
Travel speed max.55 km/h"
Gradeability58 %
Chain width300 mm
Ground clearance280 mm
Width1.620 mm
Height410 mm
Stroke max. lifting height levelling blade above ground level410 mm
Stroke max. scraping depth of levelling blade below ground level490 mm

Tables

Engine / Motor manufacturerYanmar
Engine / Motor type4TNV88
Engine / MotorWater-cooled 4-cylinder diesel engine
Displacement2.189 cm³
RPM / speed2.000 rpm
Engine performance acc. to ISO237 kW"
Battery71 Ah
Tank capacity52 l
Sound level (LwA) acc. to 2000/14/EC95 dB(A)
Cabin - specified sound pressure level LpA acc. to ISO 639474 dB(A)
