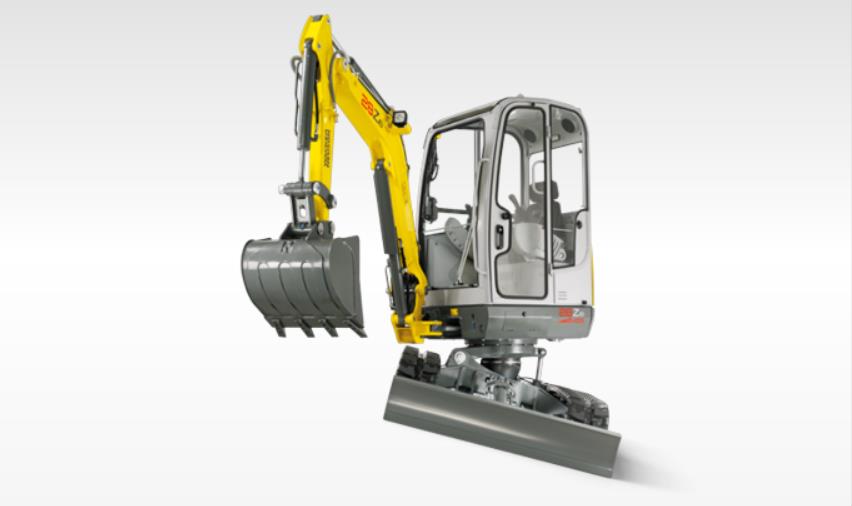

28 Z 3 Neuson excavator specs & dimensions (2007 - 2008)

Neuson 28 Z 3 is a mini excavator manufactured from 2007 to 2008. It has a weight of 2.58 tons and features a track width of 300 m…

Neuson 28 Z 3 is a mini excavator manufactured from 2007 to 2008. It has a weight of 2.58 tons and features a track width of 300 mm. The transport dimensions are 4.26 meters in length, 1.57 meters in width, and 2.41 meters in height. This model is equipped with a blade and rubber tracks.

Mini Excavators Neuson 28 Z 3

Technical specs - 28 Z 3 Neuson

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.58 t
Transport length
4.26 m
Transport width
1.57 m
Transport height
2.41 m
Track width
300 mm
Driver protection
FD
Max. Reach horizontal
4.68 m
Dredging depth
2.54 m
Tear-out force
15.4 kN
Engine manuf.
Yanmar
Engine type
3TNV76
Engine power
17.9 kW
Displacement
1.115 l
Revolutions at max torque
2500 rpm

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Neuson 28 Z 3 FAQ

When was the Neuson 28 Z 3 manufactured?

The Neuson 28 Z 3 was manufactured from 2007 to 2008.

How much does the Neuson 28 Z 3 weigh?

The Neuson 28 Z 3 weighs 2.58 tons.

What are the transport dimensions of the Neuson 28 Z 3 mini excavator?

The Neuson 28 Z 3 has a transport length of 4.26 meters, a transport width of 1.57 meters, and a transport height of 2.41 meters.

What is the track width of the Neuson 28 Z 3 mini excavator?

The Neuson 28 Z 3 mini excavator has a track width of 300 mm.

What are the excavation performance specifications of the Neuson 28 Z 3 mini excavator?

The Neuson 28 Z 3 mini excavator has a dredging depth of 2.54 meters and a maximum horizontal reach of 4.68 meters.

What is the tear-out force of the Neuson 28 Z 3 mini excavator?

The Neuson 28 Z 3 mini excavator has a tear-out force of 15.4 kN.

What operator safety and support features does the Neuson 28 Z 3 have?

The Neuson 28 Z 3 is equipped with a canopy for driver protection.

How much is a Neuson 28 Z 3 Mini excavator (2007u20132008) worth?

The residual value of the Neuson 28 Z 3 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Neuson 28 Z 3 overview

Dimensions and weight

Duty pumpDouble variable- & two-gear pump
Flow rate894 l/min"
Operating pressure for working and traction hydraulics225 bar
Operating pressure Slewing gear206 bar
Hydraulic oil tank265 l"

Tables

Engine / Motor manufacturerYanmar
Engine / Motor type3TNV76
Engine / MotorWater-cooled 3-cylinder diesel engine
Displacement1.115 cm³
RPM / speed2.500 rpm
Engine performance acc. to ISO152 kW"
Battery44 Ah
Tank capacity352 l"
Travel speed max.38 km/h"
Gradeability58 %
Chain width300 mm
