1404 Neuson excavator specs & dimensions (2006 - 2008)

Neuson 1404 is a Mini Excavator manufactured from 2006 to 2008. It has a weight of 1.45 tons and a track width of 230 mm. The tran…

Neuson 1404 is a Mini Excavator manufactured from 2006 to 2008. It has a weight of 1.45 tons and a track width of 230 mm. The transport dimensions are 3.645 meters in length, 0.99 meters in width, and 2.276 meters in height. The bucket capacity is a minimum of 0.032 cubic meters. Special equipment includes a blade and rubber tracks.

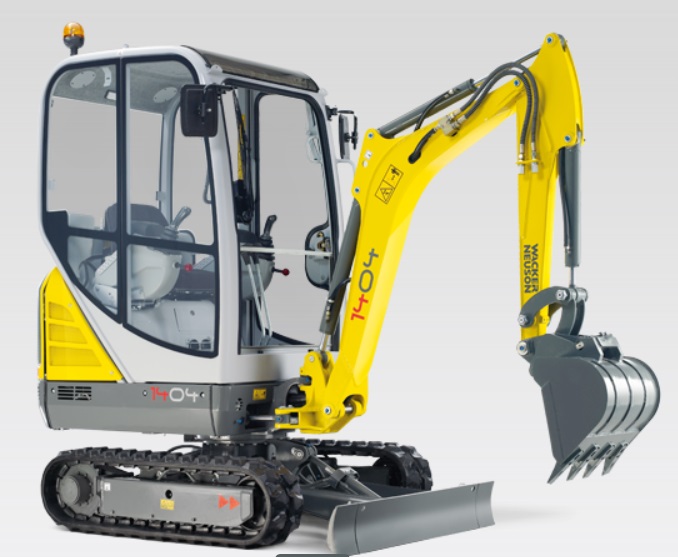

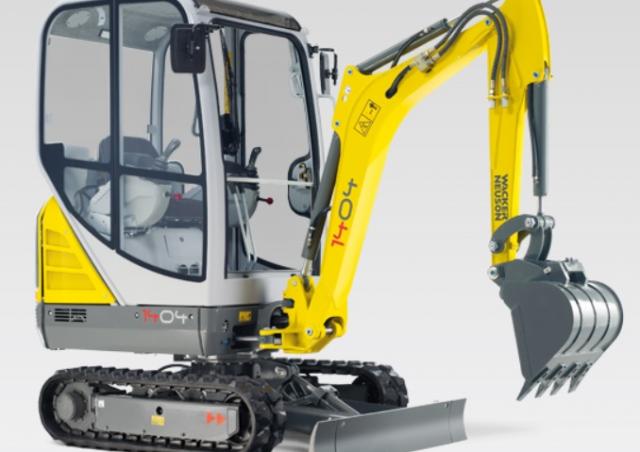

Mini Excavators Neuson 1404
Mini Excavators Neuson 1404
Mini Excavators Neuson 1404
Mini Excavators Neuson 1404

Technical specs - 1404 Neuson

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.45 t
Transport length
3.645 m
Transport width
0.99 m
Transport height
2.276 m
Bucket capacity min.
0.032 m³
Track width
230 mm
Driver protection
KbR
Max. Reach horizontal
3.7 m
Dredging depth
2.24 m
Tear-out force
7.1 kN
Engine manuf.
Yanmar
Engine type
3TNV76
Engine power
17.9 kW
Displacement
1.115 l
Revolutions at max torque
2500 rpm

More technical details, like: bucket capacity, bucket capacity max., bucket width, standard tyres, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Neuson 1404 FAQ

When was the Neuson 1404 manufactured?

The Neuson 1404 was manufactured from 2006 to 2008.

How much does the Neuson 1404 weigh?

The Neuson 1404 weighs 1.45 tons.

What are the transport dimensions of the Neuson 1404 mini excavator?

The Neuson 1404 has a transport length of 3.65 meters, a transport width of 0.99 meters, and a transport height of 2.28 meters.

What is the track width of the Neuson 1404 mini excavator's undercarriage?

The Neuson 1404 mini excavator has a track width of 230 mm.

What are the excavation performance specifications of the Neuson 1404 mini excavator?

The Neuson 1404 mini excavator has a dredging depth of 2.24 meters and a maximum horizontal reach of 3.7 meters.

What is the tear-out force of the Neuson 1404 mini excavator?

The Neuson 1404 mini excavator has a tear-out force of 7.1 kN.

What is the minimum bucket capacity of the Neuson 1404 mini excavator?

The Neuson 1404 mini excavator has a minimum bucket capacity of 0.03 cubic meters.

What operator safety and support features does the Neuson 1404 have?

The Neuson 1404 is equipped with a cabin that includes ROPS (Roll-Over Protective Structure) for driver protection.

How much is a Neuson 1404 Mini excavator (2006u20132008) worth?

The residual value of the Neuson 1404 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Neuson 1404 overview

Dimensions and weight

Duty pumpGear pump
Flow rate35 l/min
Operating pressure for working and traction hydraulics200 bar
Operating pressure Slewing gear150 bar
RPM / speed Superstructure98 rpm"
Hydraulic oil tank20 l

Tables

Engine / Motor manufacturerYanmar
Engine / Motor type3TNV76
Engine / MotorWater-cooled 3-cylinder diesel engine
Displacement1.116 cm³
RPM / speed2.200 rpm
Engine performance acc. to ISO132 kW"
Battery45 Ah
Tank capacity24 l
Width980 mm
Height232 mm
Stroke max. above ground"211 mm
Stroke max. below ground"264 mm
Travel speed25 km/h"
Gradeability58 %
Chain width230 mm
Ground clearance180 mm
