NR 3.5 K Neumeier excavator specs & dimensions (2007 - 2020)

Model rating: 10,00 / 10

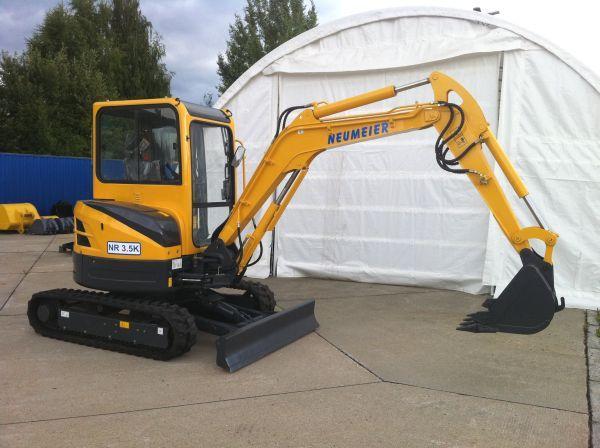

Neumeier NR 3.5 K is a Mini Excavator manufactured since 2007, with a weight of 3.8 t. It features a track width of 300 mm, a tran…

Neumeier NR 3.5 K is a Mini Excavator manufactured since 2007, with a weight of 3.8 t. It features a track width of 300 mm, a transport length of 4.815 m, a transport width of 1.8 m, and a transport height of 2.57 m. The machine has a dredging depth of 3.165 m and a maximum horizontal reach of 5.515 m. It comes with a bucket capacity of 0.12 m³ and includes special equipment such as air conditioning, a blade, and rubber tracks.

NR 3.5 K

Years of manufacture: 2007—2020

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - NR 3.5 K Neumeier

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 3.8 t

Transport length: 4.815 m

Transport width: 1.8 m

Transport height: 2.57 m

Bucket capacity: 0.12 m³

Track width: 300 mm

Driver protection: Kb

Max. Reach horizontal: 5.515 m

Dredging depth: 3.165 m

Tear-out force: 28.32 kN

Model series: NR

Engine manuf.: Kubota

Engine type: V2203M-Di-EU10

Engine power: 29.2 kW

Revolutions at max torque: 2200 rpm

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: Yes
Blade: Yes
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

NR 3.5 K Neumeier Specification for Europe (DE)

Neumeier NR 3.5 K FAQ

When was the Neumeier NR 3.5 K manufactured?

The Neumeier NR 3.5 K was first produced in 2007.

How much does the Neumeier NR 3.5 K weigh?

The Neumeier NR 3.5 K weighs 3.8 tons.

What are the transport dimensions of the Neumeier NR 3.5 K mini excavator?

The Neumeier NR 3.5 K has a transport length of 4.82 meters, a transport width of 1.8 meters, and a transport height of 2.57 meters.

What is the track width of the Neumeier NR 3.5 K mini excavator?

The Neumeier NR 3.5 K mini excavator has a track width of 300 mm.

What are the excavation performance specifications of the Neumeier NR 3.5 K mini excavator?

The Neumeier NR 3.5 K mini excavator has a dredging depth of 3.165 meters and a maximum horizontal reach of 5.515 meters.

What is the tear-out force of the Neumeier NR 3.5 K mini excavator?

The Neumeier NR 3.5 K mini excavator has a tear-out force of 28.32 kN.

What is the bucket capacity of the Neumeier NR 3.5 K mini excavator?

The bucket capacity of the Neumeier NR 3.5 K mini excavator is 0.12 cubic meters.

What operator safety and support features does the Neumeier NR 3.5 K have?

The Neumeier NR 3.5 K provides operator safety with a cabin for driver protection.
