NR 3.5 Neumeier excavator specs & dimensions (2011 - 2020)

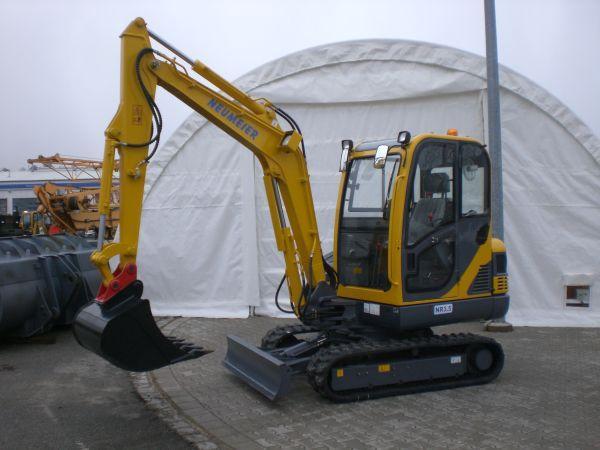

Neumeier NR 3.5 is a mini excavator manufactured since 2011. It has a weight of 3.81 tons and a track width of 300 mm. The transpo…

Neumeier NR 3.5 is a mini excavator manufactured since 2011. It has a weight of 3.81 tons and a track width of 300 mm. The transport dimensions are 5.25 meters in length, 1.52 meters in width, and 2.49 meters in height. The bucket capacity is 0.12 cubic meters. Special equipment includes air conditioning, a blade, and rubber tracks.

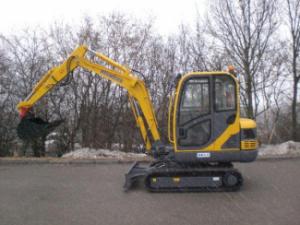

Mini Excavators Neumeier NR 3.5
Mini Excavators Neumeier NR 3.5
Mini Excavators Neumeier NR 3.5
Mini Excavators Neumeier NR 3.5
Mini Excavators Neumeier NR 3.5
Mini Excavators Neumeier NR 3.5

Technical specs - NR 3.5 Neumeier

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.81 t
Transport length
5.25 m
Transport width
1.52 m
Transport height
2.49 m
Bucket capacity
0.12 m³
Track width
300 mm
Driver protection
Kb
Max. Reach horizontal
5.59 m
Dredging depth
3.53 m
Tear-out force
22.19 kN
Model series
NR
Engine manuf.
Kubota
Engine type
k.A.
Engine power
31.2 kW
Revolutions at max torque
2200 rpm
Emission level
III A

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Neumeier NR 3.5 FAQ

When was the Neumeier NR 3.5 manufactured?

The Neumeier NR 3.5 was first produced in 2011.

How much does the Neumeier NR 3.5 weigh?

The Neumeier NR 3.5 weighs 3.81 tons.

What are the transport dimensions of the Neumeier NR 3.5 mini excavator?

The Neumeier NR 3.5 has a transport length of 5.25 meters, a transport width of 1.52 meters, and a transport height of 2.49 meters.

What is the track width of the Neumeier NR 3.5 mini excavator?

The Neumeier NR 3.5 mini excavator has a track width of 300 mm.

What are the excavation performance specifications of the Neumeier NR 3.5 mini excavator?

The Neumeier NR 3.5 mini excavator has a dredging depth of 3.53 meters and a maximum horizontal reach of 5.59 meters.

What is the tear-out force of the Neumeier NR 3.5 mini excavator?

The Neumeier NR 3.5 mini excavator has a tear-out force of 22.19 kN. No power rating data is available for this model.

What is the bucket capacity of the Neumeier NR 3.5 mini excavator?

The Neumeier NR 3.5 mini excavator has a bucket capacity of 0.12 cubic meters.

What operator safety and support features does the Neumeier NR 3.5 have?

The Neumeier NR 3.5 provides operator safety with a cabin for driver protection.
