NR 1.8 Neumeier excavator specs & dimensions (2006 - 2014)

Neumeier NR 1.8 is a mini excavator manufactured from 2006 to 2014, with a weight of 1.78 tons. It features a track width of 230 m…

Neumeier NR 1.8 is a mini excavator manufactured from 2006 to 2014, with a weight of 1.78 tons. It features a track width of 230 mm, a transport length of 3.845 meters, a transport width of 1.4 meters, and a transport height of 2.3 meters. The machine has a dredging depth of 2.255 meters and a bucket capacity of 0.08 cubic meters. It is equipped with a blade and rubber tracks.

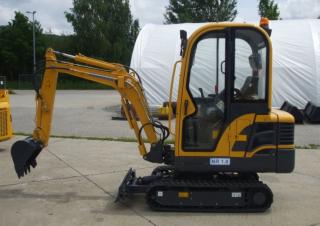

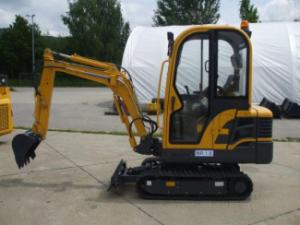

Mini Excavators Neumeier NR 1.8
Mini Excavators Neumeier NR 1.8
Mini Excavators Neumeier NR 1.8
Mini Excavators Neumeier NR 1.8
Mini Excavators Neumeier NR 1.8
Mini Excavators Neumeier NR 1.8

Technical specs - NR 1.8 Neumeier

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.78 t
Transport length
3.845 m
Transport width
1.4 m
Transport height
2.3 m
Bucket capacity
0.08 m³
Track width
230 mm
Driver protection
Kb
Max. Reach horizontal
3.74 m
Dredging depth
2.255 m
Tear-out force
16.6 kN
Model series
NR
Engine manuf.
Perkins
Engine type
400 C
Engine power
14.7 kW
Revolutions at max torque
2200 rpm

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Neumeier NR 1.8 FAQ

When was the Neumeier NR 1.8 manufactured?

The Neumeier NR 1.8 was manufactured from 2006 to 2014.

How much does the Neumeier NR 1.8 weigh?

The Neumeier NR 1.8 weighs 1.78 tons.

What are the transport dimensions of the Neumeier NR 1.8 mini excavator?

The Neumeier NR 1.8 has a transport length of 3.85 meters, a transport width of 1.4 meters, and a transport height of 2.3 meters.

What is the track width of the Neumeier NR 1.8's undercarriage?

The Neumeier NR 1.8 has a track width of 230 mm in its undercarriage.

What are the excavation performance specifications of the Neumeier NR 1.8 mini excavator?

The Neumeier NR 1.8 mini excavator has a dredging depth of 2.255 meters and a maximum horizontal reach of 3.74 meters.

What power ratings are available for the Neumeier NR 1.8 mini excavator?

The source data does not provide any power ratings for the Neumeier NR 1.8 mini excavator.

What is the bucket capacity of the Neumeier NR 1.8 mini excavator?

The bucket capacity of the Neumeier NR 1.8 mini excavator is 0.08 cubic meters.

What operator safety features does the Neumeier NR 1.8 have?

The Neumeier NR 1.8 has a cabin for driver protection.

How much is a Neumeier NR 1.8 Mini excavator (2006u20132014) worth?

The residual value of the Neumeier NR 1.8 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
