NR 1.6 Neumeier excavator specs & dimensions (2008 - 2013)

Neumeier NR 1.6 is a mini excavator manufactured from 2008 to 2013. It has a weight of 1.8 tons and a track width of 230 mm. The t…

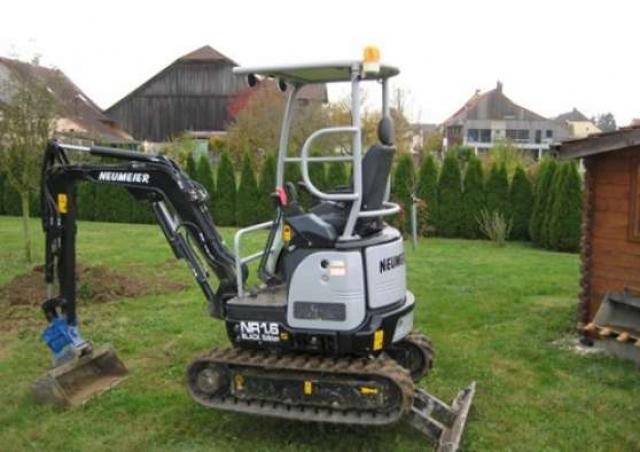

Neumeier NR 1.6 is a mini excavator manufactured from 2008 to 2013. It has a weight of 1.8 tons and a track width of 230 mm. The transport dimensions are 3.426 meters in length, 1.183 meters in width, and 2.25 meters in height. The tear-out force is 13 kN, and the bucket capacity is 0.06 m³. Special equipment includes a blade, rubber track, and track adjustment.

Mini Excavators Neumeier NR 1.6

Technical specs - NR 1.6 Neumeier

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.8 t
Transport length
3.426 m
Transport width
1.183 m
Transport height
2.25 m
Bucket capacity
0.06 m³
Track width
230 mm
Driver protection
FD
Max. Reach horizontal
3.9 m
Dredging depth
2.29 m
Tear-out force
13 kN
Model series
NR
Engine manuf.
Perkins
Engine type
403D-07
Engine power
12.2 kW
Revolutions at max torque
2300 rpm

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Neumeier NR 1.6 FAQ

When was the Neumeier NR 1.6 manufactured?

The Neumeier NR 1.6 was manufactured from 2008 to 2013.

How much does the Neumeier NR 1.6 weigh?

The Neumeier NR 1.6 weighs 1.8 tons.

What are the transport dimensions of the Neumeier NR 1.6 mini excavator?

The Neumeier NR 1.6 has a transport length of 3.43 meters, a transport width of 1.18 meters, and a transport height of 2.25 meters.

What is the track width of the Neumeier NR 1.6 mini excavator's undercarriage?

The Neumeier NR 1.6 mini excavator has a track width of 230 mm.

What are the dredging depth and maximum horizontal reach of the Neumeier NR 1.6 mini excavator?

The Neumeier NR 1.6 mini excavator has a dredging depth of 2.29 meters and a maximum horizontal reach of 3.9 meters.

What is the tear-out force of the Neumeier NR 1.6 mini excavator?

The Neumeier NR 1.6 mini excavator has a tear-out force of 13 kN.

What is the bucket capacity of the Neumeier NR 1.6 mini excavator?

The bucket capacity of the Neumeier NR 1.6 mini excavator is 0.06 cubic meters.

What operator safety and support features does the Neumeier NR 1.6 have?

The Neumeier NR 1.6 is equipped with a canopy for driver protection.

How much is a Neumeier NR 1.6 Mini excavator (2008u20132013) worth?

The residual value of the Neumeier NR 1.6 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
