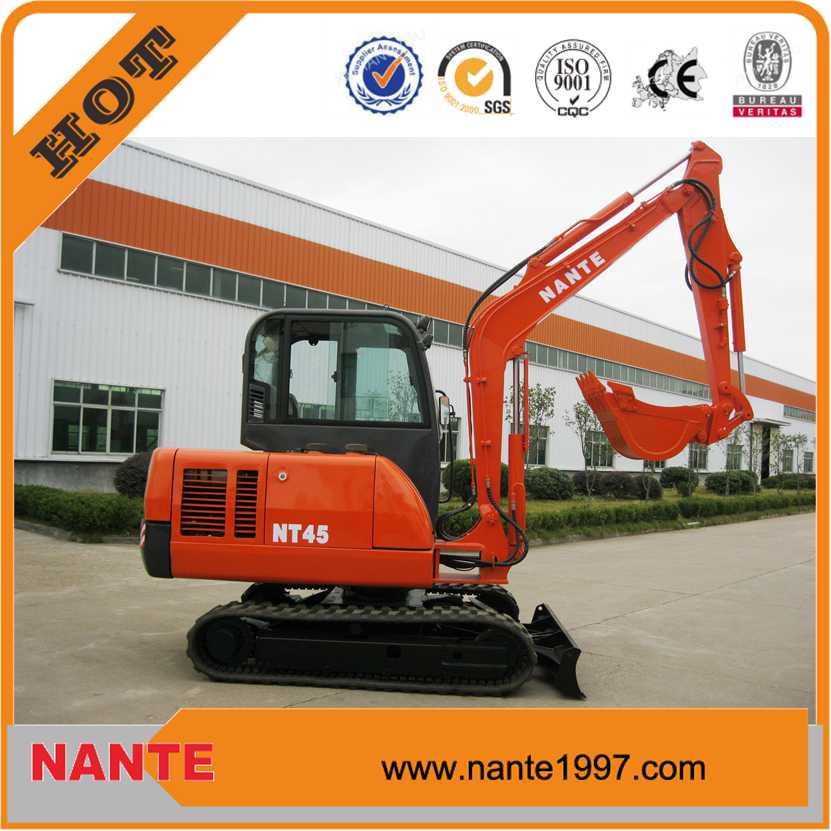

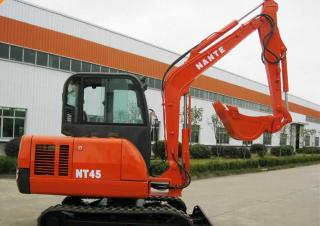

NT45 Nante excavator specs & dimensions (2017 - 2020)

Nante NT45 is a mini excavator manufactured from 2017 to 2020. It has a weight of 4 tons and a track width of 300 mm. The transpor…

Nante NT45 is a mini excavator manufactured from 2017 to 2020. It has a weight of 4 tons and a track width of 300 mm. The transport dimensions are 5.56 meters in length, 2.56 meters in width, and 1.65 meters in height. The machine features a tear-out force of 23.1 kN, a dredging depth of 3.53 meters, and a maximum horizontal reach of 5.68 meters. The bucket capacity is 0.16 cubic meters, and it comes equipped with a blade.

Mini Excavators Nante NT45

Technical specs - NT45 Nante

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4 t
Transport length
5.56 m
Transport width
2.56 m
Transport height
1.65 m
Bucket capacity
0.16 m³
Track width
300 mm
Driver protection
Kb
Max. Reach horizontal
5.68 m
Dredging depth
3.53 m
Tear-out force
23.1 kN
Engine manuf.
Kohler
Engine type
KDI2504
Engine power
48 kW
Max. torque
305/1500 Nm
No. of cylinders
4

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, model series, dimension lxwxh, displacement, revolutions at max torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Nante NT45 FAQ

When was the Nante NT45 manufactured?

The Nante NT45 was manufactured from 2017 to 2020.

How much does the Nante NT45 mini excavator weigh?

The Nante NT45 mini excavator weighs 4 tons.

What are the transport dimensions of the Nante NT45 mini excavator?

The Nante NT45 has a transport length of 5.56 meters, a transport width of 2.56 meters, and a transport height of 1.65 meters.

What is the track width of the Nante NT45 mini excavator?

The Nante NT45 mini excavator has a track width of 300 mm.

What are the excavation performance specifications of the Nante NT45 mini excavator?

The Nante NT45 mini excavator has a dredging depth of 3.53 meters and a maximum horizontal reach of 5.68 meters.

What is the tear-out force of the Nante NT45 mini excavator?

The Nante NT45 mini excavator has a tear-out force of 23.1 kN.

What is the bucket capacity of the Nante NT45 mini excavator?

The bucket capacity of the Nante NT45 mini excavator is 0.16 cubic meters.

What operator safety and support features does the Nante NT45 have?

The Nante NT45 provides operator safety through a protective cabin.

How much is a Nante NT45 Mini excavator (2017u20132020) worth?

The residual value of the Nante NT45 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
