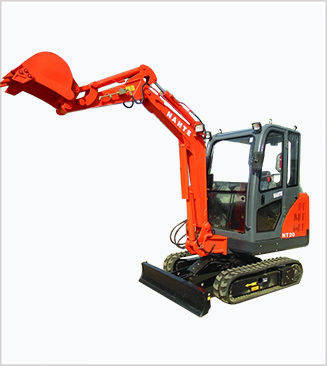

NT20 Nante excavator specs & dimensions (2017 - 2020)

Nante NT20 is a mini excavator manufactured from 2017 to 2020, with a weight of 1.8 tons. It features a track width of 230 mm, a t…

Nante NT20 is a mini excavator manufactured from 2017 to 2020, with a weight of 1.8 tons. It features a track width of 230 mm, a transport length of 3.8 meters, a transport width of 2.3 meters, and a transport height of 1.14 meters. The machine has a tear-out force of 14 kN, a dredging depth of 2.065 meters, and a maximum horizontal reach of 3.61 meters. The bucket capacity is 0.06 cubic meters, and it comes equipped with a blade.

Mini Excavators Nante NT20

Technical specs - NT20 Nante

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.8 t
Transport length
3.8 m
Transport width
2.3 m
Transport height
1.14 m
Bucket capacity
0.06 m³
Track width
230 mm
Driver protection
FD/Kb
Max. Reach horizontal
3.61 m
Dredging depth
2.065 m
Tear-out force
14 kN
Engine manuf.
Kohler
Engine type
KDI2504
Engine power
48 kW
Max. torque
305/1500 Nm
No. of cylinders
4

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, model series, dimension lxwxh, displacement, revolutions at max torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Nante NT20 FAQ

When was the Nante NT20 manufactured?

The Nante NT20 was manufactured from 2017 to 2020.

How much does the Nante NT20 mini excavator weigh?

The Nante NT20 mini excavator weighs 1.8 tons.

What are the transport dimensions of the Nante NT20 mini excavator?

The Nante NT20 has a transport length of 3.8 meters, a transport width of 2.3 meters, and a transport height of 1.14 meters.

What is the track width of the Nante NT20 mini excavator's undercarriage?

The Nante NT20 mini excavator has a track width of 230 mm.

What are the dredging depth and maximum horizontal reach of the Nante NT20 mini excavator?

The Nante NT20 mini excavator has a dredging depth of 2.065 meters and a maximum horizontal reach of 3.61 meters.

What is the tear-out force of the Nante NT20 mini excavator?

The Nante NT20 mini excavator has a tear-out force of 14 kN.

What is the bucket capacity of the Nante NT20 mini excavator?

The Nante NT20 mini excavator has a bucket capacity of 0.06 cubic meters.

What driver protection features does the Nante NT20 offer for operator safety?

The Nante NT20 offers driver protection features including a canopy and a cabin for operator safety.
