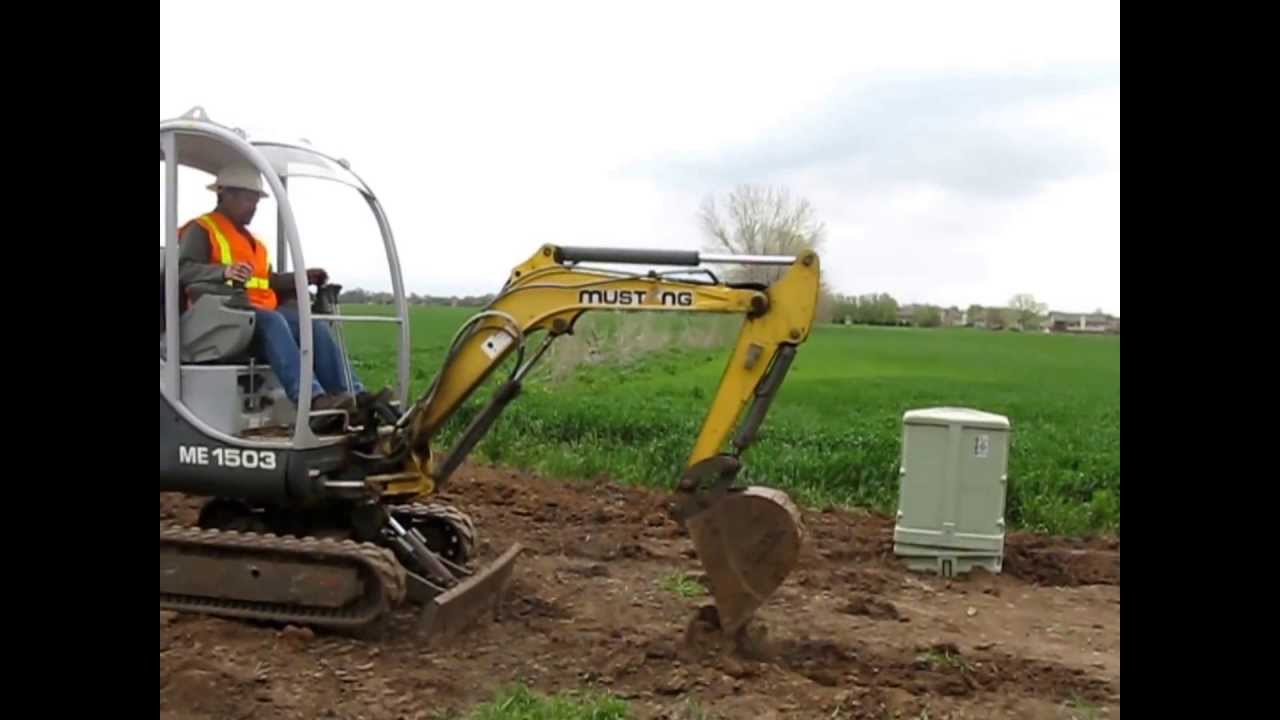

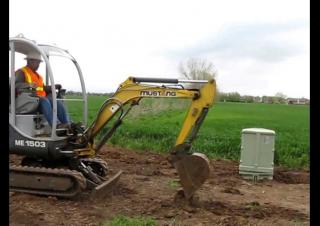

ME1503 Mustang excavator specs & dimensions (2009 - 2025)

Mustang ME1503 is a mini excavator manufactured since 2009, with a weight of 1.707 tons. It features a track width of 230 mm, a tr…

Mustang ME1503 is a mini excavator manufactured since 2009, with a weight of 1.707 tons. It features a track width of 230 mm, a transport length of 3 meters, a transport width of 0.99 meters, and a transport height of 2 meters. The excavator is equipped with a blade and rubber tracks.

Mini Excavators Mustang ME1503

Technical specs - ME1503 Mustang

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.707 t
Transport length
3 m
Transport width
0.99 m
Transport height
2 m
Bucket width
1.3 m
Track width
230 mm
Driver protection
Ü
Max. Reach horizontal
3.77 m
Dredging depth
2.38 m
Tear-out force
17.7 kN
Engine manuf.
Yanmar
Engine type
3TNV76-SNS
Engine power
13.2 kW
Displacement
1116 l
No. of cylinders
3

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., standard tyres, model series, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Mustang ME1503 FAQ

When was the Mustang ME1503 manufactured?

The Mustang ME1503 was first produced in 2009.

How much does the Mustang ME1503 mini excavator weigh?

The Mustang ME1503 mini excavator weighs 1.71 tons.

What are the transport dimensions of the Mustang ME1503 mini excavator?

The Mustang ME1503 has a transport length of 3 meters, a transport width of 0.99 meters, and a transport height of 2 meters.

What is the track width of the Mustang ME1503 mini excavator?

The Mustang ME1503 mini excavator has a track width of 230 mm.

What is the excavation performance of the Mustang ME1503 mini excavator?

The Mustang ME1503 mini excavator has a dredging depth of 2.38 meters and a maximum horizontal reach of 3.77 meters.

What is the tear-out force of the Mustang ME1503 mini excavator, given that no power ratings are provided?

The source data does not provide power ratings for the Mustang ME1503 mini excavator. However, it has a tear-out force of 17.7 kN.

What is the bucket width of the Mustang ME1503 mini excavator?

The Mustang ME1503 mini excavator has a bucket width of 1.3 meters.

What operator safety features does the Mustang ME1503 have?

The Mustang ME1503 is equipped with a roll-over bar for driver protection.

How much is a Mustang ME1503 Mini excavator (2009u20132025) worth?

The residual value of the Mustang ME1503 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Mustang ME1503 overview

Hydraulics

Inspection and service is made simple through
a large, pivot open access door to the hydraulic tank and the second swing opening door that uncovers the engine compartment. For more information on Mustang equipment visit our literature hotline below or visit our website:

Tyres / Tracks

Telescoping undercarriage creates a variable
Track width that allows extra stability and easier access through tight entry routes.

Other features

Extra-large operator station with ergonomic
controls, adjustable high back seat and underarm rests on each joystick provide all-day comfort.
