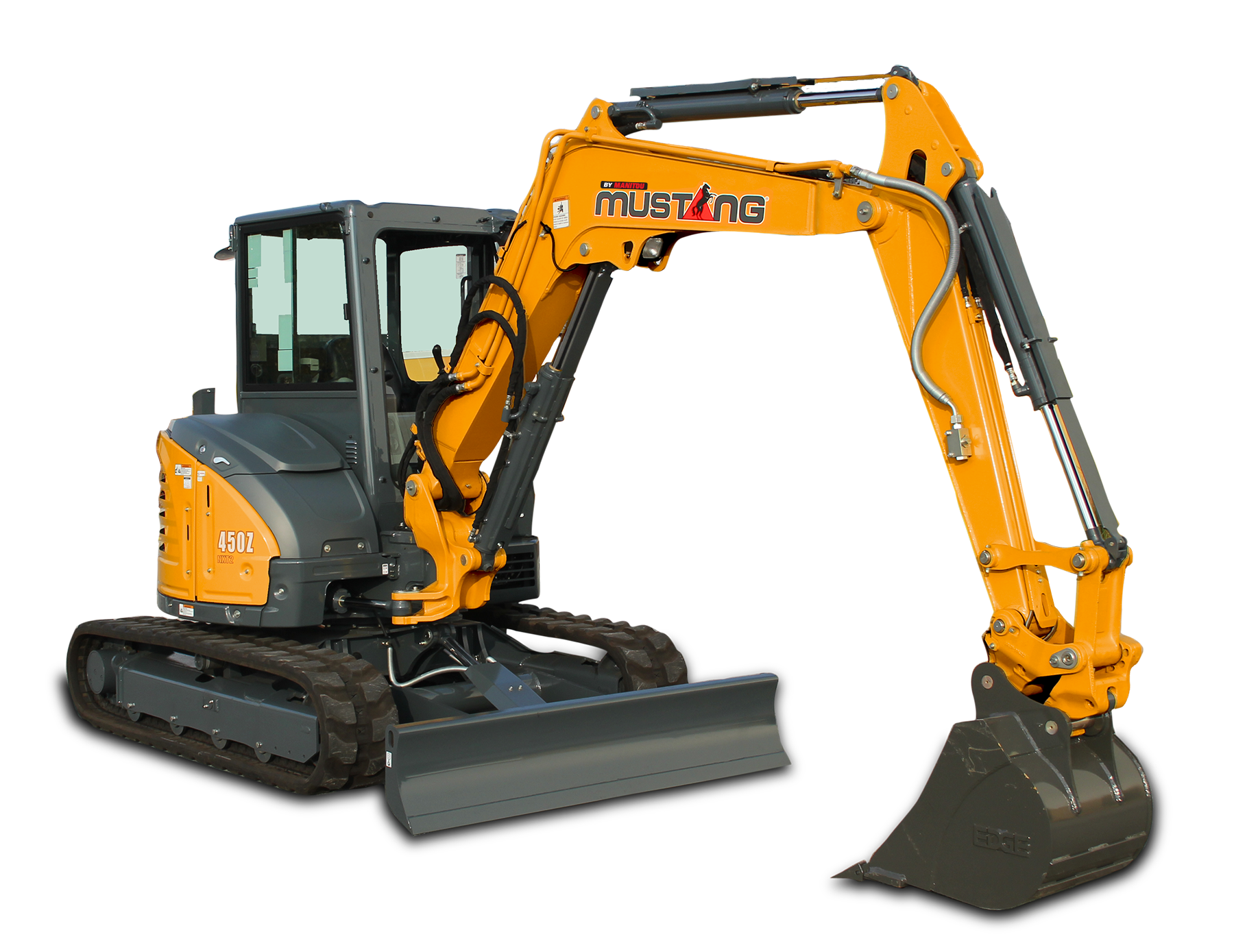

Mustang 450Z NXT2 excavator specs (2018 - 2022)
Weight: 4.72t – Transport length: 5.32m – Transport width: 1.94m – Transport height: 2.54m – Bucket capacity min.: 0.18m³ – Bucket... Read more
Weight: 4.72t – Transport length: 5.32m – Transport width: 1.94m – Transport height: 2.54m – Bucket capacity min.: 0.18m³ – Bucket capacity max.: 0.24m³
Check out detailed specifications, information and technical data for Mustang 450Z NXT2 excavator manufactured between 2018 - 2022. Get more in-depth insight with Mustang 450Z NXT2 digger specifications. See information, like: Weight: 4.72t – Transport length: 5.32m – Transport width: 1.94m – Transport height: 2.54m – Bucket capacity min.: 0.18m³ – Bucket capacity max.: 0.24m³ and more.
Technical specs - 450Z NXT2 Mustang
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.
- Weight 4.72 t
- Transport length 5.32 m
- Transport width 1.94 m
- Transport height 2.54 m
- Bucket capacity min. 0.18 m³
- Bucket capacity max. 0.24 m³
- Track width 350 mm
- Driver protection FD/Kb
- Max. Reach horizontal 5.74 m
- Dredging depth 3.55 m
- Engine manuf. Yanmar
- Engine type 4TNV88C-PBV
- Engine power 28.1 kW
- Displacement 2.19 l
- Emission level Tier 4
More technical details, like: bucket capacity, bucket width, standard tyres, tear-out force, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Basic model with standard bucket
- Track adjustment
- Rubber track
- Quick hitch hydr.
- Quick hitch mech.
Carbon footprint calculator for Mini Excavators
Use the ERA equipment CO2 Calculator to estimate the carbon emissions per hour of use of the Mustang 450Z NXT2 or alternative Mini Excavators.
The carbon emission evaluation can be carried out considering different energy consumption scenarios or other variables.
or visit the ERA Equipment CO2 Calculator to find out how to optimise your CO2 emissions.
Download datasheets (PDF)
Mustang 450Z NXT2 overview
Mustang 450Z NXT2 features overviewIncreased travel pedals offer additional foot space during stationary work and keep you comfortable on long working days.
Engine / Driveline and transmissionB R E A K I N G N E W G R O U N D
It is one of many ways to describe the diverse range of Mustang compact excavators. Each model is built with the operator in mind and offers the power and comfort to exceed expectations. AchtMODEL The Mustang Compact Excavators are reliable, strong and maneuverable making them the perfect partner on the most demanding jobsites. 0.8 - 10.0 METRIC TONS ZERO-TAIL-SWING & MINIMAL TAIL-SWING POWER-A TACH
Tier IV Yanmar engines are highly efficient, utilizing automatic regeneration and no fuel additives that provide clean emissions with little to no input from the operator. Known all over the world for their high torque and excellent cold starting capabilities, Yanmar engines ensure what is needed to drive the full range of Mustang excavators.
TWO WAYS TO OPERATE
The operator can select the control pattern of their preference, ISO or SAE (Backhoe), with a simple rotation of a mechanical lever.
Dozer blade angle control, angle blade float, blade height and two-speed control switch are available in an ergonomic joystick /
ANGLE BLADE with float
The blade can be angled 25 in both directions to avoid repeated repositioning when refilling.
HydraulicsEngine regeneration Hour meter & clock Recording maintenance history Multiple language selection Fluid levels Usage monitoring Error codes Fuel consumption
PROPORTIONAL AUXILIARY HYDRAULIC FLOW
The hydraulic flow is infinitely adjustable with a rocker switch on the joystick to maximise attachment productivity.
Tyres / TracksSTANDARD TRACK DRIVE
The standard track drive ensures long route life and enables easy aftermarket track changes.
Outstanding from the competition with a single pin boom bracket, the pivot is truly aligned to provide longer life and reduced costs.
TRAVEL IN COMFORT
Long distances with offset tread and mandrel design, combined with a short track slope, reduce vibration providing smoother travel over rough terrain.
An angled crawler frame and short paved tracks reduce ground build-up on the undercarriage, prolonging roll and track life.
Retracted, expandable tracks provide the ability to access confined spaces and then extend traces for increased stability. Retracted 26.8 (8, 37.4 (17, Extended 33.1 (8, 50.4 (17,
Other featuresThe adjustable wrist rest, designed with comfort in mind, helps reduce operator fatigue.
Heat is standard on all cab models. Upgrade to A/C for added comfort.
The storage compartments are located behind and under the seat for items you need throughout the day.
EXCELLENT VIEWS FROM ALL SIDES FOR SAFE AND PRECISE OPERATION.
Excellent forward visibility, on the sides and rear of the machine allow precise material placement and reduced job site incidents. A high-mounted seat provides an excellent viewing point to the attachment and peak performance.
The front window can be stowed for extra airflow if the weather permits. This feature also increases visibility and communication with bystanders when needed.
At the cab door is accessible from ground level in case of an emergency.
A digital display with historical monitoring and automatic, adjustable reminders and intervals ensures easier tracking of maintenance procedures.
SafetyA well protected boom light increases job site visibility and safety in darker conditions.
Standard equipment on each excavator, the travel alarm reports your spectator's presence to increase safety.
before operating any equipment. Also, make sure all safety devices and shields are in place and functioning
Mustang reminds users to properly read and understand the Operator's Manual. Mustang reserves the right, at any time without notice or obligation, to add improvements or make changes to
