    Lectura specs Construction machinery Mini Excavators Mini Excavators Mustang Mustang 350Z NXT2 specifications

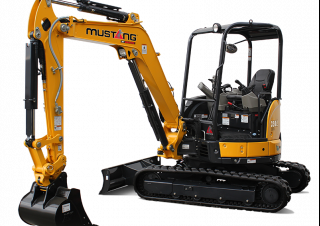

    Mustang 350Z NXT2 excavator specs (2018 - 2022)

    Rate this machine now!

    Weight: 3.58t – Transport length: 4.77m – Transport width: 1.74m – Transport height: 2.47m – Bucket capacity min.: 0.12m³ – Bucket... Read more

    Weight: 3.58t – Transport length: 4.77m – Transport width: 1.74m – Transport height: 2.47m – Bucket capacity min.: 0.12m³ – Bucket capacity max.: 0.24m³

    Check out detailed specifications, information and technical data for Mustang 350Z NXT2 excavator manufactured between 2018 - 2022. Get more in-depth insight with Mustang 350Z NXT2 digger specifications. See information, like: Weight: 3.58t – Transport length: 4.77m – Transport width: 1.74m – Transport height: 2.47m – Bucket capacity min.: 0.12m³ – Bucket capacity max.: 0.24m³ and more.


    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Weight 3.58 t
    • Transport length 4.77 m
    • Transport width 1.74 m
    • Transport height 2.47 m
    • Bucket capacity min. 0.12 m³
    • Bucket capacity max. 0.24 m³
    • Track width 300 mm
    • Driver protection FD/Kb
    • Max. Reach horizontal 5.27 m
    • Dredging depth 3.25 m
    • Engine manuf. Yanmar
    • Engine type 3TNV88F-ESBV
    • Engine power 17.8 kW
    • Displacement 1.64 l
    • Emission level Tier IV

    More technical details, like: bucket capacity, bucket width, standard tyres, tear-out force, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

    Basic model with standard bucket

    Special equipment

    • Track adjustment
    • Rubber track
    • Blade
    • Aircondition
    • Quick hitch hydr.
    • Quick hitch mech.

    Carbon footprint calculator for Mini Excavators

    Check out the ERA equipment CO2 Calculator to find out the CO2 footprint per hour of use of the Mustang 350Z NXT2 or alternative Mini Excavators.

    The carbon emission calculation can be carried out based on various biofuel scenarios or other variables.

    or go to the ERA Equipment CO2 Calculator to find out how to optimise your carbon footprint.

    service provided by ERA

    Mustang 350Z NXT2 overview

    • Mustang 350Z NXT2 features overview

      Increased travel pedals offer additional foot space during stationary work and keep you comfortable on long working days.
    • Engine / Driveline and transmission

      B R E A K I N G N E W G R O U N D
      It is one of many ways to describe the diverse range of Mustang compact excavators. Each model is built with the operator in mind and offers the power and comfort to exceed expectations. AchtMODEL The Mustang Compact Excavators are reliable, strong and maneuverable making them the perfect partner on the most demanding jobsites. 0.8 - 10.0 METRIC TONS ZERO-TAIL-SWING & MINIMAL TAIL-SWING POWER-A TACH

      Tier IV Yanmar engines are highly efficient, utilizing automatic regeneration and no fuel additives that provide clean emissions with little to no input from the operator. Known all over the world for their high torque and excellent cold starting capabilities, Yanmar engines ensure what is needed to drive the full range of Mustang excavators.
      The operator can select the control pattern of their preference, ISO or SAE (Backhoe), with a simple rotation of a mechanical lever.
      Dozer blade angle control, angle blade float, blade height and two-speed control switch are available in an ergonomic joystick /
      ANGLE BLADE with float
      The blade can be angled 25 in both directions to avoid repeated repositioning when refilling.
    • Hydraulics

      Engine regeneration Hour meter & clock Recording maintenance history Multiple language selection Fluid levels Usage monitoring Error codes Fuel consumption
      The hydraulic flow is infinitely adjustable with a rocker switch on the joystick to maximise attachment productivity.
    • Tyres / Tracks

      The standard track drive ensures long route life and enables easy aftermarket track changes.

      Outstanding from the competition with a single pin boom bracket, the pivot is truly aligned to provide longer life and reduced costs.
      Long distances with offset tread and mandrel design, combined with a short track slope, reduce vibration providing smoother travel over rough terrain.
      An angled crawler frame and short paved tracks reduce ground build-up on the undercarriage, prolonging roll and track life.
      Retracted, expandable tracks provide the ability to access confined spaces and then extend traces for increased stability. Retracted 26.8 (8, 37.4 (17, Extended 33.1 (8, 50.4 (17,
    • Other features

      The adjustable wrist rest, designed with comfort in mind, helps reduce operator fatigue.

      Heat is standard on all cab models. Upgrade to A/C for added comfort.
      The storage compartments are located behind and under the seat for items you need throughout the day.
      Excellent forward visibility, on the sides and rear of the machine allow precise material placement and reduced job site incidents. A high-mounted seat provides an excellent viewing point to the attachment and peak performance.

      The front window can be stowed for extra airflow if the weather permits. This feature also increases visibility and communication with bystanders when needed.

      At the cab door is accessible from ground level in case of an emergency.

      A digital display with historical monitoring and automatic, adjustable reminders and intervals ensures easier tracking of maintenance procedures.
    • Safety

      A well protected boom light increases job site visibility and safety in darker conditions.

      Standard equipment on each excavator, the travel alarm reports your spectator's presence to increase safety.
      before operating any equipment. Also, make sure all safety devices and shields are in place and functioning
      Mustang reminds users to properly read and understand the Operator's Manual. Mustang reserves the right, at any time without notice or obligation, to add improvements or make changes to
