170Z Mustang excavator specs & dimensions (2012 - 2018)

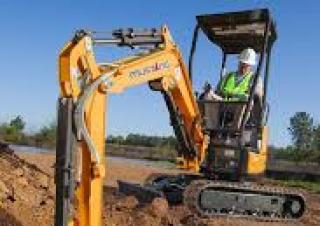

Mustang 170Z is a mini excavator manufactured from 2012 to 2018. It has a weight of 1 ton and a track width of 230 mm. The transpo…

Mustang 170Z is a mini excavator manufactured from 2012 to 2018. It has a weight of 1 ton and a track width of 230 mm. The transport dimensions are 3 meters in length, 1 meter in width, and 2 meters in height. The excavator features a tear-out force of 15 kN, a dredging depth of 2 meters, and a maximum horizontal reach of 3 meters. It is equipped with a blade and rubber tracks.

Mini Excavators Mustang 170Z

Technical specs - 170Z Mustang

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.74 t
Transport length
3.45 m
Transport width
1.28 m
Transport height
2.3 m
Track width
230 mm
Driver protection
Ü
Max. Reach horizontal
3.71 m
Dredging depth
2.2 m
Tear-out force
15.2 kN
Engine manuf.
Yanmar
Engine type
3TNV70-XBV
Engine power
10.1 kW
Displacement
0.854 l
Emission level
Tier IV

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Mustang 170Z FAQ

When was the Mustang 170Z manufactured?

The Mustang 170Z was manufactured from 2012 to 2018.

How much does the Mustang 170Z weigh?

The Mustang 170Z weighs 1.74 tons.

What are the transport dimensions of the Mustang 170Z mini excavator?

The Mustang 170Z has a transport length of 3.45 meters, a transport width of 1.28 meters, and a transport height of 2.3 meters.

What is the track width of the Mustang 170Z mini excavator?

The Mustang 170Z mini excavator has a track width of 230 mm.

What are the excavation performance specifications of the Mustang 170Z mini excavator?

The Mustang 170Z mini excavator has a dredging depth of 2.2 meters and a maximum horizontal reach of 3.71 meters.

What is the tear-out force of the Mustang 170Z mini excavator?

The Mustang 170Z mini excavator has a tear-out force of 15.2 kN. The source data does not provide any power ratings for this model.

What operator safety features does the Mustang 170Z have?

The Mustang 170Z is equipped with a roll-over bar for driver protection.
