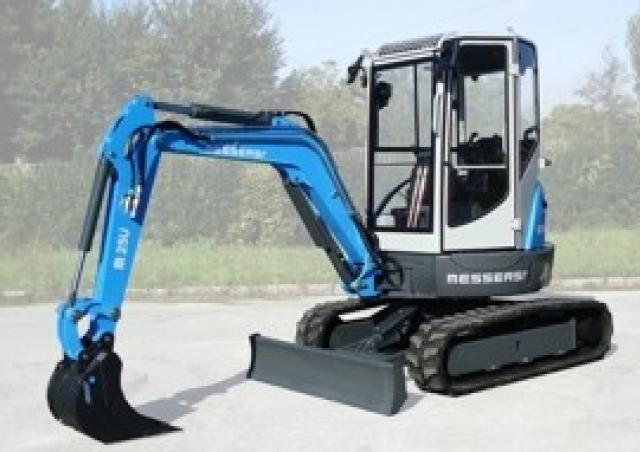

M25U Messersi excavator specs & dimensions (2021 - 2026)

Messersi M25U is a Mini Excavator manufactured since 2021. It has a weight of 2.725 tons and a track width of 300 mm. The transpor…

Messersi M25U is a Mini Excavator manufactured since 2021. It has a weight of 2.725 tons and a track width of 300 mm. The transport dimensions are 3.771 meters in length, 1.57 meters in width, and 2.458 meters in height. The machine features a tear-out force of 19.5 kN, a dredging depth of 2.816 meters, and a maximum horizontal reach of 4.525 meters. The bucket width is 0.45 meters with a capacity of 0.064 cubic meters. Special equipment includes a blade, quick hitch hydraulic, quick hitch mechanical, and rubber tracks.

Mini Excavators Messersi M25U

Visit Messersi live at

Technical specs - M25U Messersi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.725 t
Transport length
3.771 m
Transport width
1.57 m
Transport height
2.458 m
Bucket capacity
0.064 m³
Bucket width
0.45 m
Track width
300 mm
Max. Reach horizontal
4.525 m
Dredging depth
2.816 m
Tear-out force
19.5 kN
Model series
M
Engine manuf.
Kubota
Engine type
D1105-E3B
Engine power
18.5 kW
Displacement
1.123 l
Revolutions at max torque
3000 rpm
No. of cylinders
3
Emission level
Stage V

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, driver protection, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
Yes
Quick hitch mech.
Yes

Download datasheets (PDF)

Messersi M25U FAQ

When was the Messersi M25U manufactured?

The Messersi M25U was first produced in 2021.

How much does the Messersi M25U mini excavator weigh?

The Messersi M25U mini excavator weighs 2.73 tons.

What are the transport dimensions of the Messersi M25U mini excavator?

The Messersi M25U has a transport length of 3.77 meters, a transport width of 1.57 meters, and a transport height of 2.46 meters.

What is the undercarriage specification of the Messersi M25U mini excavator?

The Messersi M25U mini excavator has a track width of 300 mm.

What are the excavation performance specifications of the Messersi M25U mini excavator?

The Messersi M25U mini excavator has a dredging depth of 2.816 meters and a maximum horizontal reach of 4.525 meters.

What are the power ratings of the Messersi M25U mini excavator?

The source data does not provide power ratings for the Messersi M25U mini excavator.

What are the bucket specifications of the Messersi M25U mini excavator?

The Messersi M25U mini excavator has a bucket capacity of 0.064 cubic meters and a bucket width of 0.45 meters.

How much is a Messersi M25U Mini excavator (2021u20132025) worth?

The residual value of the Messersi M25U depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
