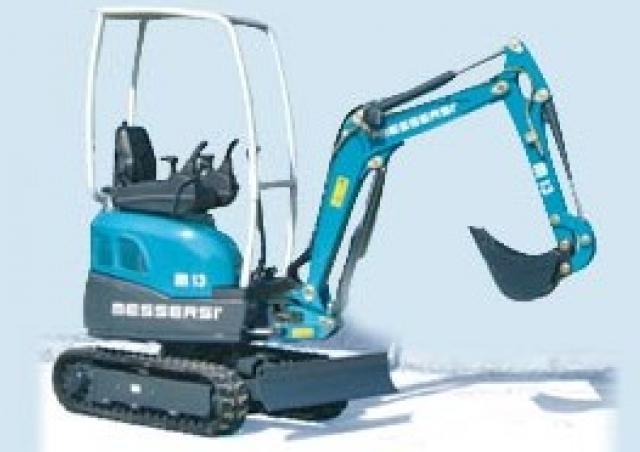

M13K Messersi excavator specs & dimensions (2021 - 2026)

Messersi M13K is a mini excavator manufactured since 2021, with a weight of 1.42 t. It has a transport length of 3.19 m, a transpo…

Messersi M13K is a mini excavator manufactured since 2021, with a weight of 1.42 t. It has a transport length of 3.19 m, a transport width of 0.99 m, and a transport height of 2.33 m. The machine features a tear-out force of 12 kN, a dredging depth of 1.96 m, and a maximum horizontal reach of 3.6 m. The bucket width is 0.3 m with a capacity of 0.025 m³. Special equipment includes a blade, quick hitch hydraulic, quick hitch mechanical, rubber track, and track adjustment.

Mini Excavators Messersi M13K

Technical specs - M13K Messersi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.42 t
Transport length
3.19 m
Transport width
0.99 m
Transport height
2.33 m
Bucket capacity
0.025 m³
Bucket width
0.3 m
Max. Reach horizontal
3.6 m
Dredging depth
1.96 m
Tear-out force
12 kN
Model series
M
Engine manuf.
Kubota
Engine type
D902
Engine power
19 kW
Displacement
0.898 l
Revolutions at max torque
3200 rpm
No. of cylinders
3
Emission level
Stage V

More technical details, like: bucket capacity min., bucket capacity max., track width, standard tyres, driver protection, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
Yes
Quick hitch mech.
Yes

Download datasheets (PDF)

Messersi M13K FAQ

When was the Messersi M13K manufactured?

The Messersi M13K was first produced in 2021.

How much does the Messersi M13K mini excavator weigh?

The Messersi M13K mini excavator weighs 1.42 tons.

What are the transport dimensions of the Messersi M13K mini excavator?

The Messersi M13K has a transport length of 3.19 meters, a transport width of 0.99 meters, and a transport height of 2.33 meters.

What are the dredging depth and maximum horizontal reach of the Messersi M13K mini excavator?

The Messersi M13K mini excavator has a dredging depth of 1.96 meters and a maximum horizontal reach of 3.6 meters.

What is the tear-out force of the Messersi M13K mini excavator?

The Messersi M13K mini excavator has a tear-out force of 12 kN.

What are the bucket specifications of the Messersi M13K mini excavator?

The Messersi M13K has a bucket capacity of 0.025 cubic meters and a bucket width of 0.3 meters.
